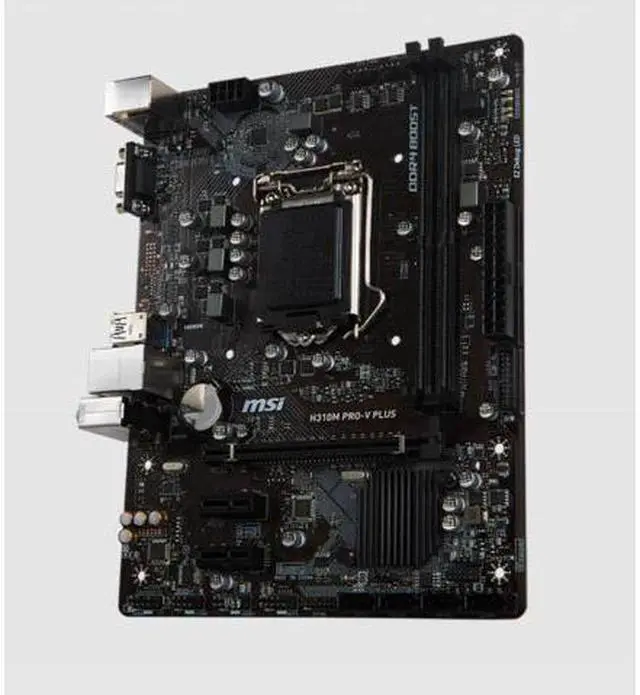

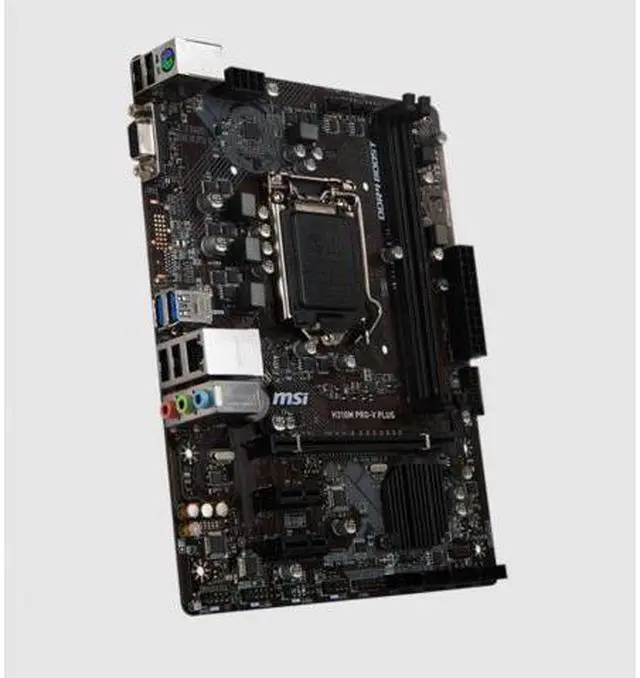

MSI H310M PRO-V PLUS DDR4 Motherboard Support LGA1151 8/9th generation Intel Core, and Intel Pentium and Celeron processors

PROCESSOR Support LGA1151 8th generation Intel ® Core™ processors, and Intel ® Pentium ® Gold and Celeron ® processors CHIPSET Intel ® H310 Chipset RAM 2 DDR4 slots, supporting a total of up to 32GB Support DDR4 2666/ 2400/ 2133 MHz Support dual channel mode Support non-ECC, unbuffered memory Support Intel ® Extreme Memory Profile (XMP) Query support report EXPANSION SLOT 1 PCIe 3.0 x16 slot 2 PCIe 2.0 x1 slots ONBOARD GRAPHICS 1 VGA port, supporting the highest resolution 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz STORAGE Intel ® H310 Chipset 4 SATA 6Gb/s ports USB Intel ® H310 Chipset 4 USB 3.1 Gen1 (SuperSpeed?? USB) ports (2 Type-A ports are located on the back panel, and 2 are provided through the onboard USB ports) 6 USB 2.0 (High-speed USB) ports (4 ports are located on the back panel, 2 ports are provided through the onboard USB ports) SOUND EFFECT Realtek ® ALC887 decoder chip 7.1 channel high-quality sound THE INTERNET 1 RTL8111H Gigabit network card BUILT-IN INTERFACE 1 x 24-pin ATX main power connector 1 8-pin ATX 12V power connector 4 SATA 6Gb/s ports 1 USB 3.1 Gen1 port (supports another 2 USB 3.1 Gen1 ports) 1 USB 2.0 interface (supports another 2 USB 2.0 interfaces) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 2 system panel interfaces 1 panel audio interface 1 serial interface 1 TPM module interface 1 chassis opening interface 1 jumper for clearing CMOS function 4 debug LED indicators BACKPLANE INTERFACE PS/2 keyboard/mouse port VGA interface USB 3.1 Gen1 LAN interface HD audio interface USB 2.0 interface USB 2.0 interface STANDARD SIZES 8.9 x 7.3 inches ( 22.6 x 18.5 cm) m-ATX specifications MOUNTING HOLE 6 mounting holes
