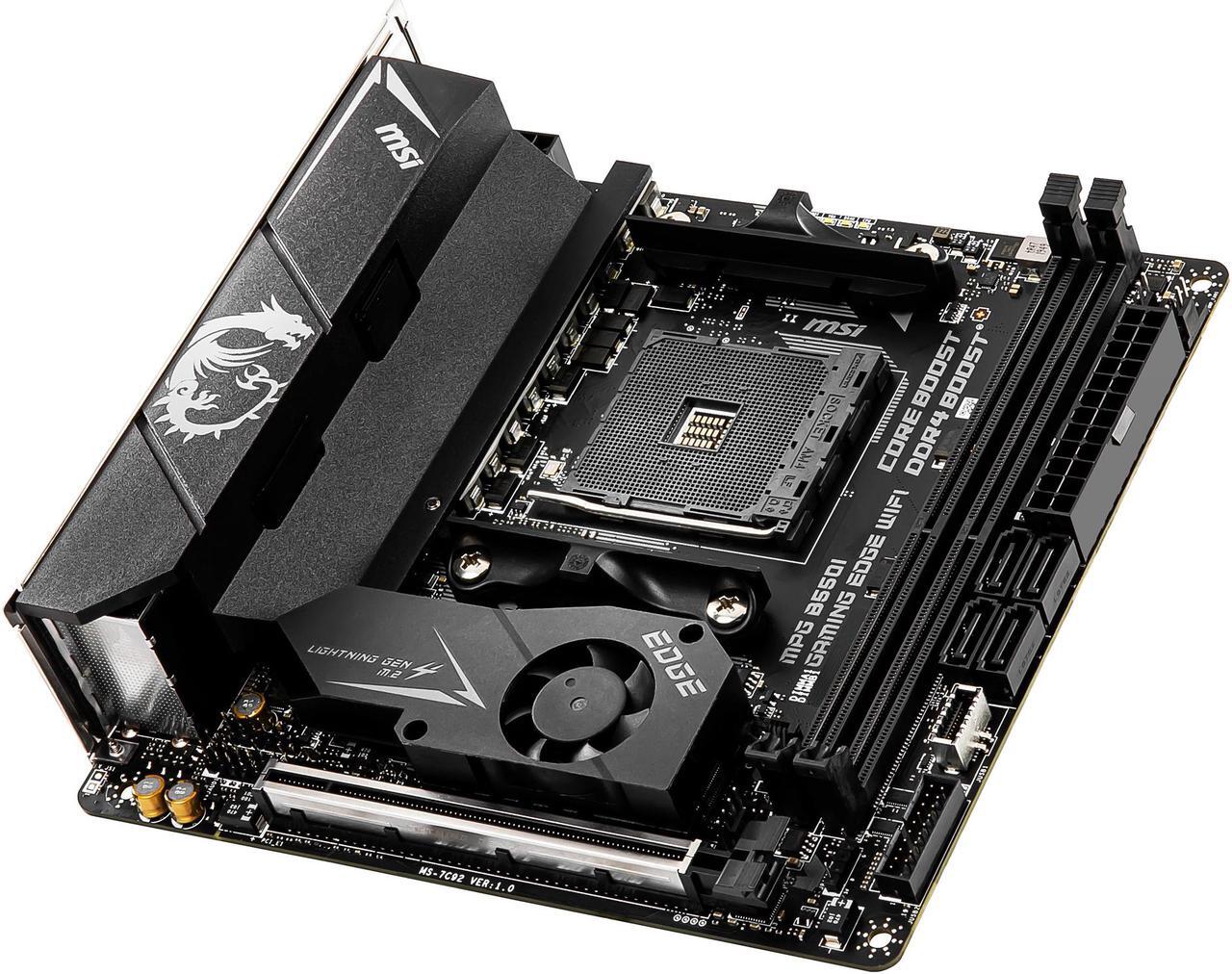

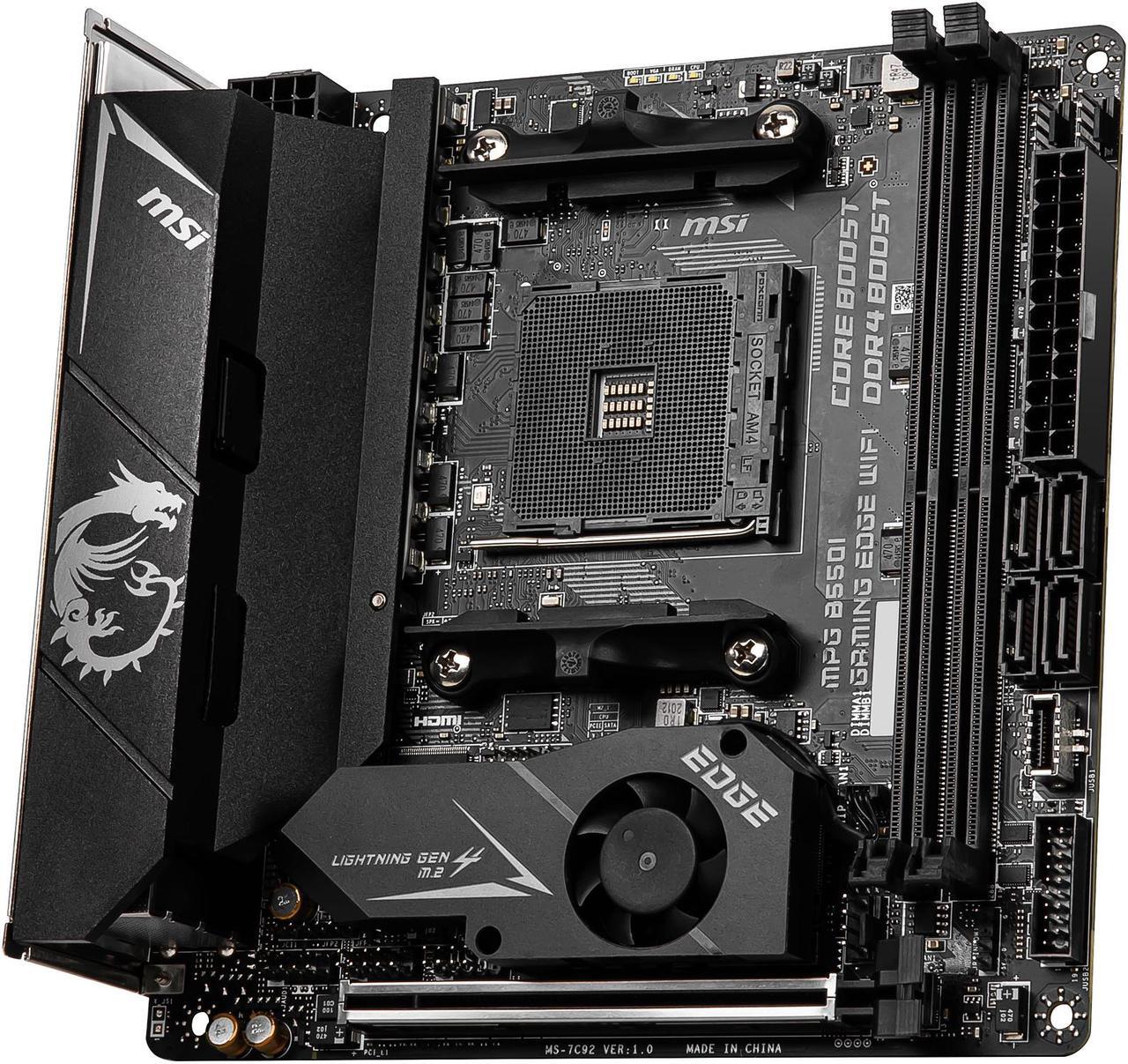

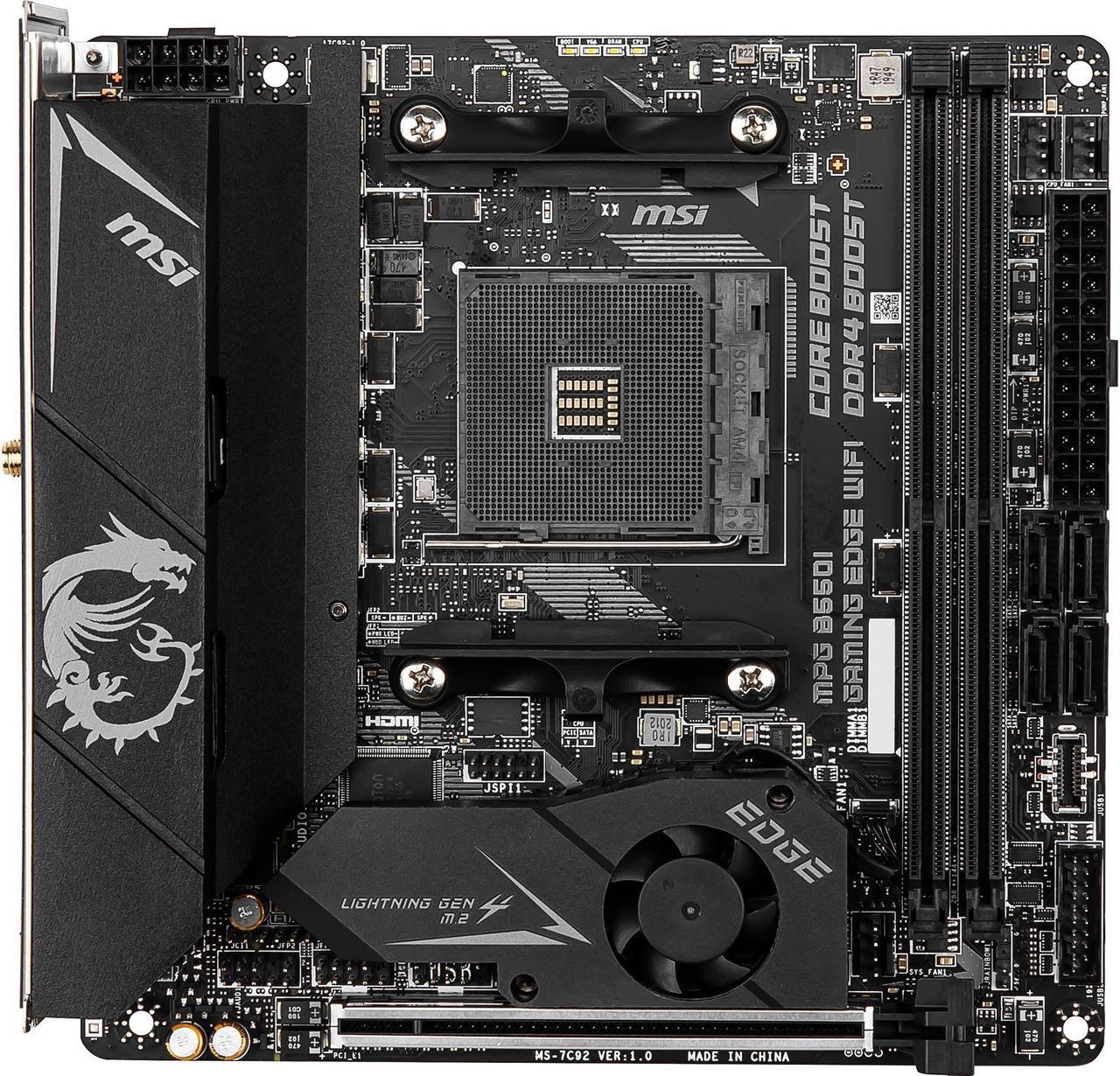

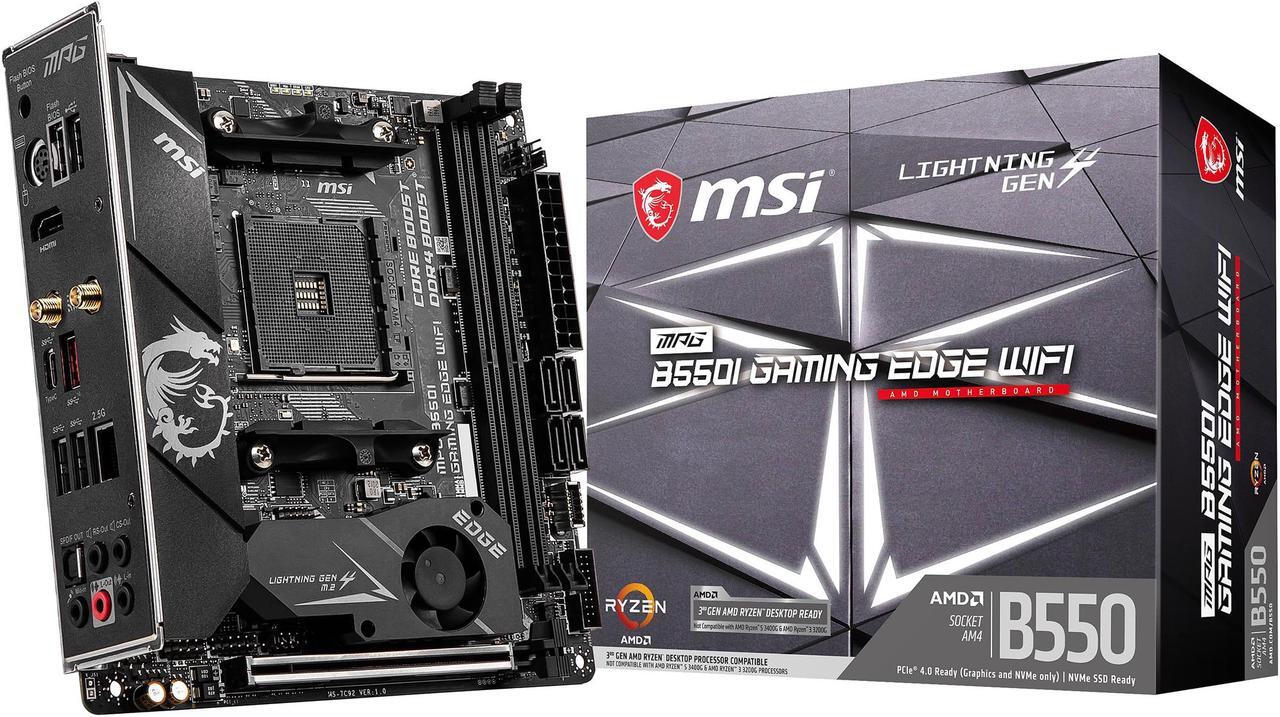

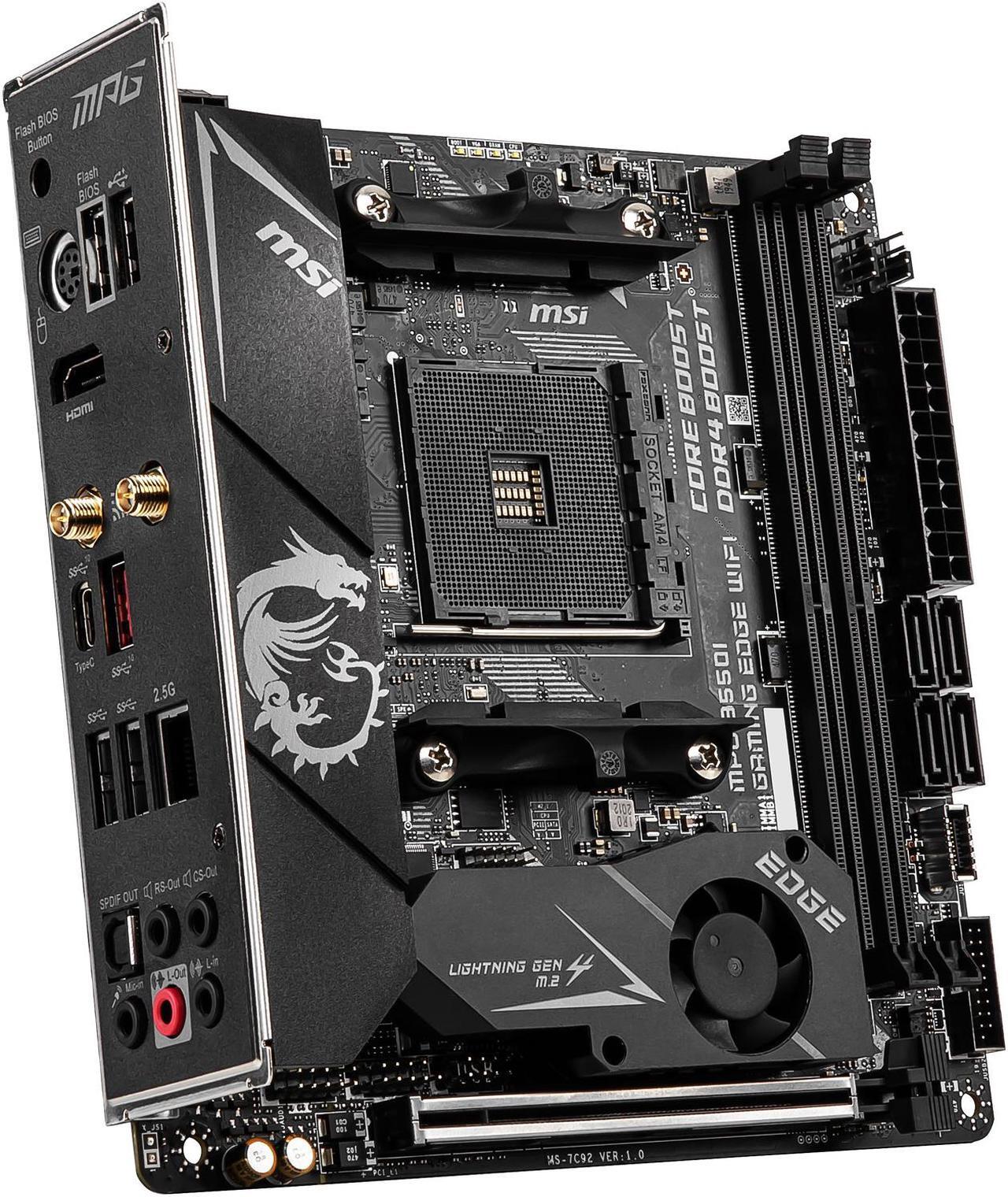

MSI MPG B550I GAMING EDGE WIFI AM4 AMD B550 Mini ITX AMD Motherboard
Used - Like New Product Type
- AMD B550
- Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
- Supports DDR4 4600+/ 4533/ 4466/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
- Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
- 1DPC 1R max speed 4600 MHZ
- 1DPC 2R max speed 4000 MHZ
+
+
Specs
Learn more about the MSI MPG B550I GAMING EDGE WIFI
| Brand | MSI |
|---|---|
| Model | MPG B550I GAMING EDGE WIFI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 4600+/ 4533/ 4466/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0/3.0 x16 slot * * The supported specification depends on installed processor. |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2260/2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0 x4 Supports 2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI 2.0/2.1 port, supports a maximum resolution of 4096x2160 @60Hz* Maximum shared memory of 16GB * Available for the processor with integrated graphics. |
|---|
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax |
| Bluetooth | Supports Bluetooth 5.1 |

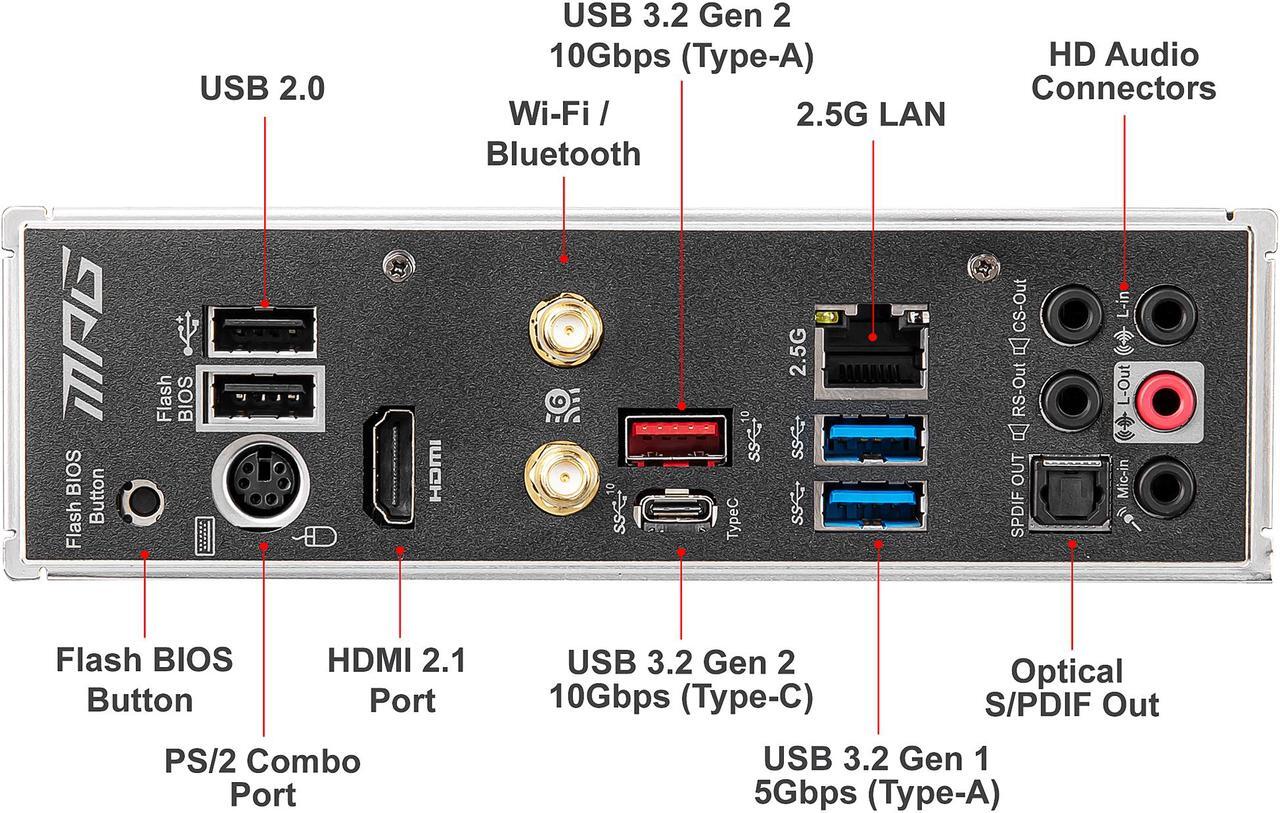

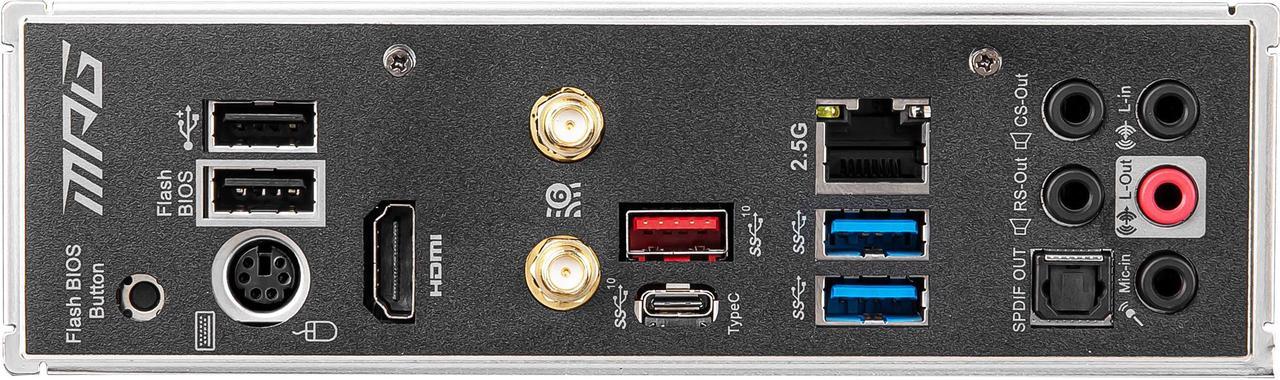

| Back I/O Ports | 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 5 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x 3-pin RAINBOW LED connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 4 x EZ Debug LED |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|

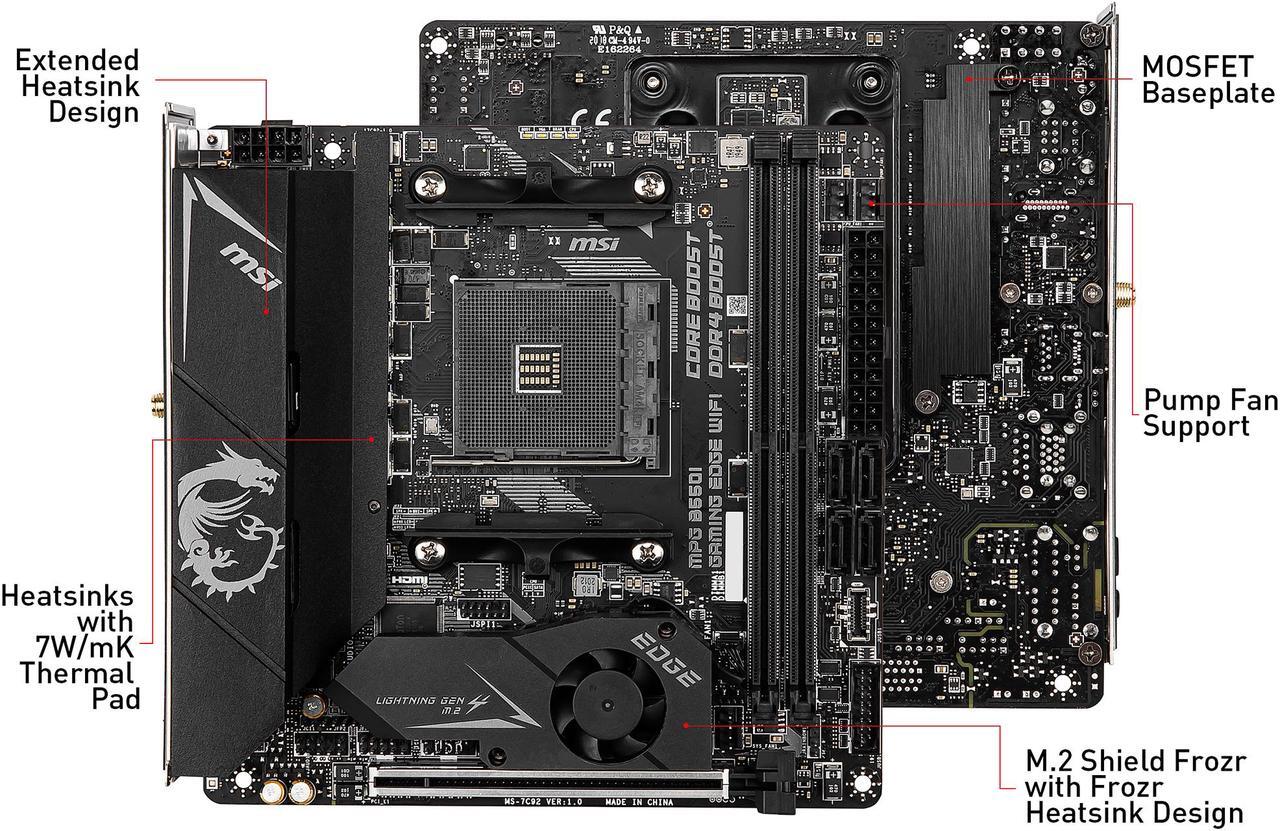

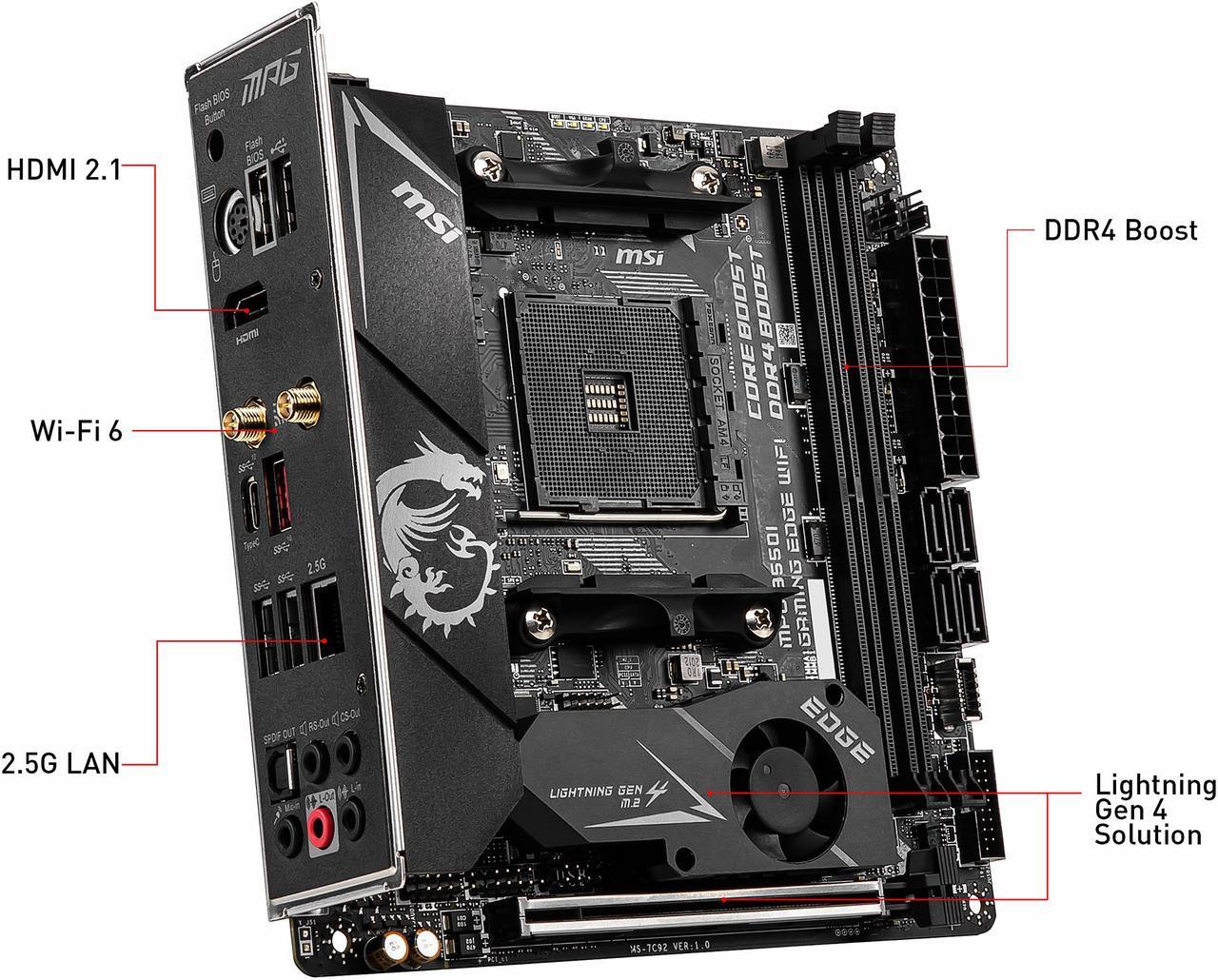

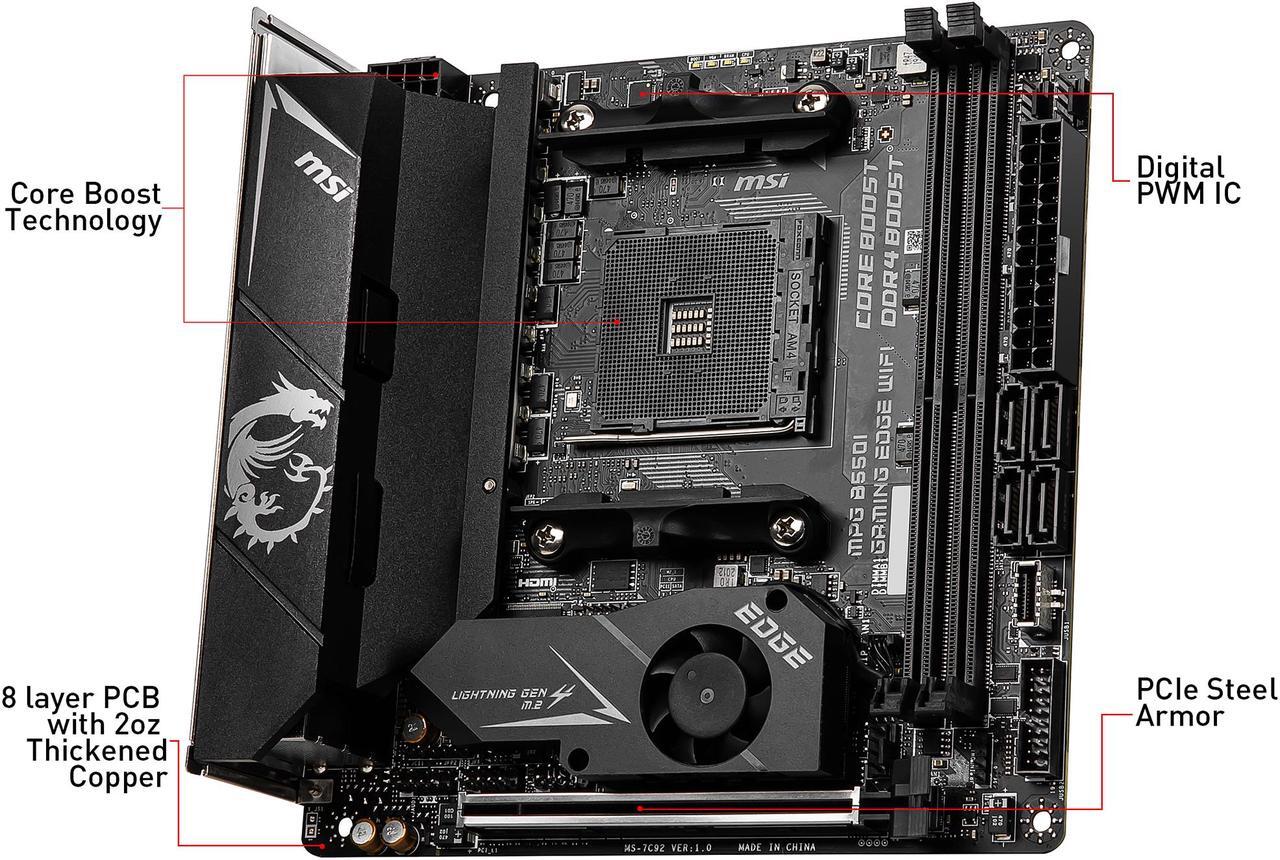

| Features | Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update Supports DDR4 Memory, up to 4600(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection HDMI 2.1: Support 4K display with up to 4096x2160@60Hz Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Audio Boost: Reward your ears with studio grade sound quality |
|---|
| Date First Available | April 11, 2025 |
|---|
