NETIS ST3105S Unmanaged 5 Port Fast Ethernet Desktop Plastic Switch
- 5 x RJ45
- 2K MAC Address Table
- Unmanaged
+
+
Overview
Specs
Reviews (25)

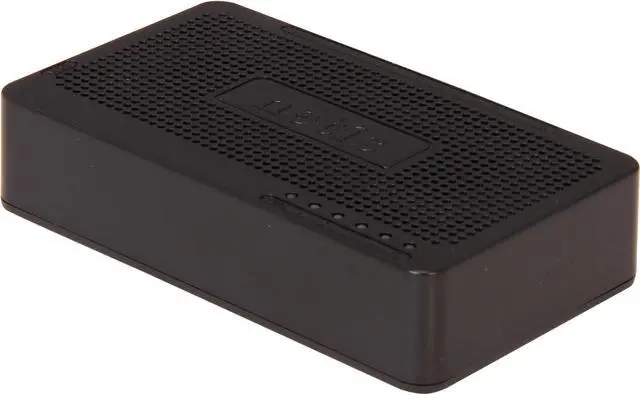

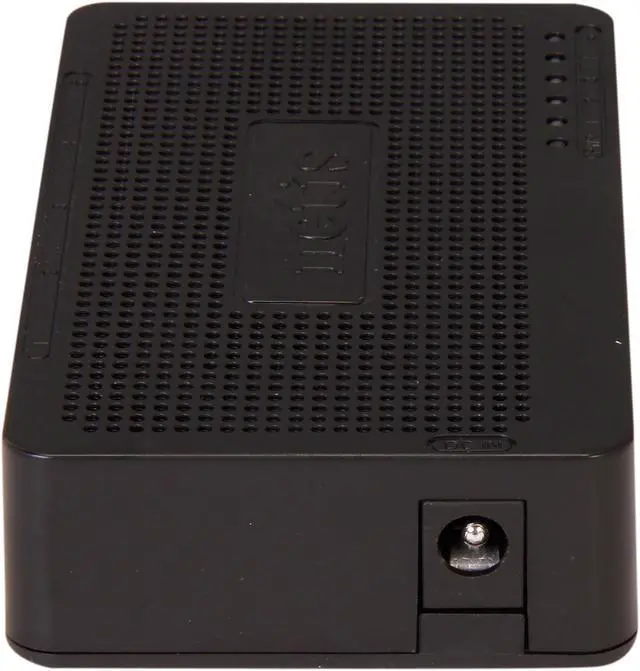

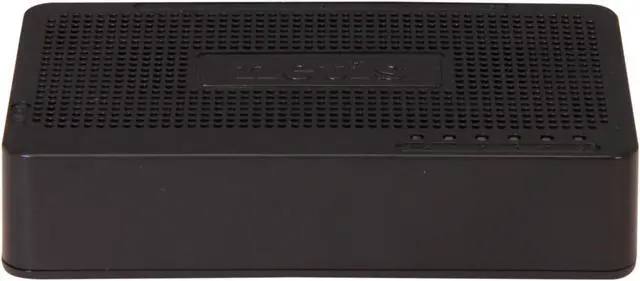

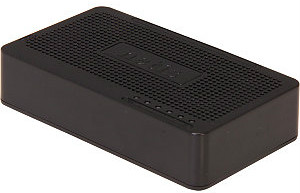

Netis ST3105S Unmanaged Five-Port Fast Ethernet Switch
What it Does
This Netis ST3105S Fast Ethernet Switch provides an easy way to expand your wired network with 5 10/100Mbps Auto-Negotiation RJ45 ports. Each port supports Auto MDI/MDIX functionality, eliminating the need for crossover cables or uplink ports. Together with the plug-and-play & Green Power feature, it may ensure you a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
Features

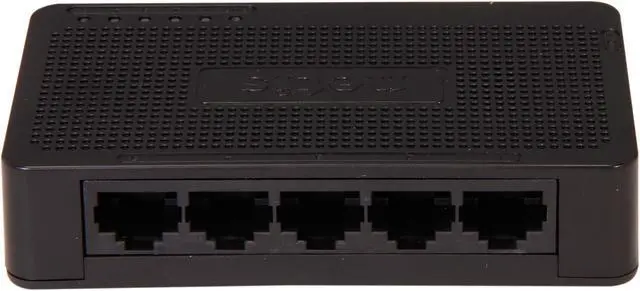

- Five 10/100Mbps Auto-Negotiation RJ45 ports, supports auto MDI/MDIX
- Green Ethernet technology saves the power up to 70%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design better for home and office use
- Plug and play, no configuration required
Specifications
| Hardware | |
|---|---|
| Interface | 5 x 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1-5 |
| Power Supply | DC 5V/800mA (Output) |
| Dimensions (L x W x H) | 3.89 x 2.24 x 0.82 inches (99 x 57 x 21mm) |
| Switching Features | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Data Transmission Rate | 10/100Mbps (Half-duplex) 20/200Mbps (Full-duplex) |
| MAC Address Table | 2K |
| Others | |
| Certifications | FCC, CE, BSMI |
| Environment | Operating Temperature: 32 - 104°F (0 - 40°C) Storage Temperature: -14 - 158°F (-20 - 70°C) Operating Humidity: 5% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing |

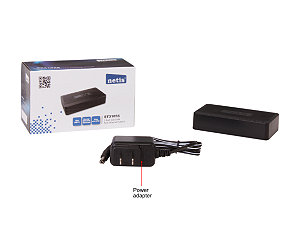

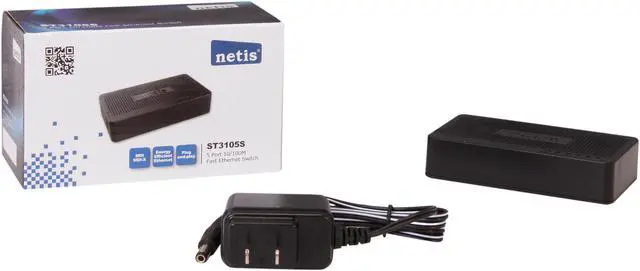

Contents
- ST3105S
- Quick Installation Guide
- Power Adapter
