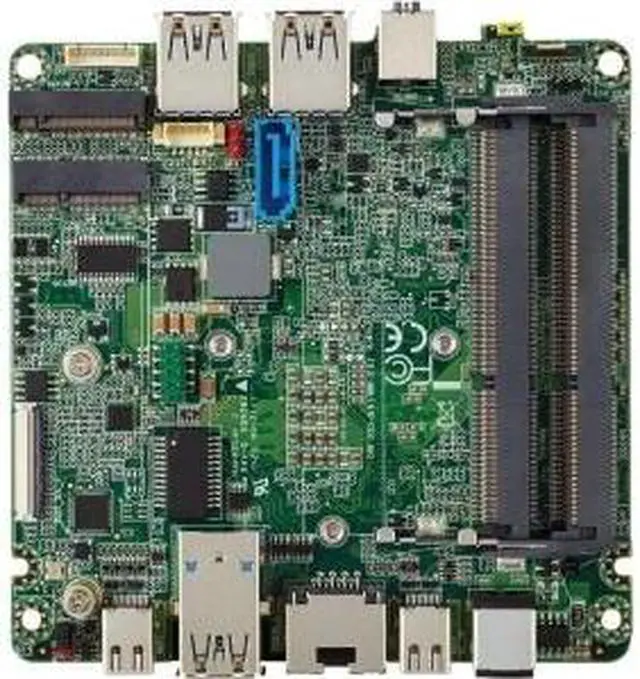

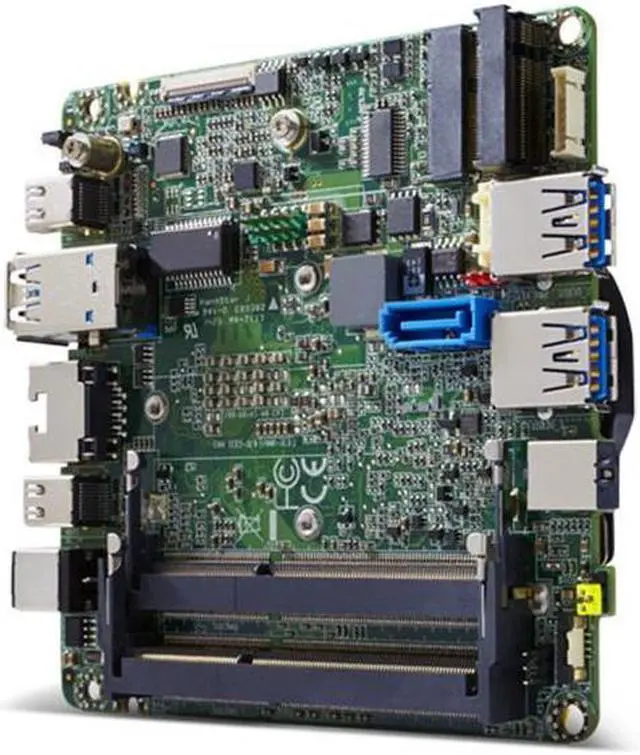

Intel BLKNUC5I3MYBE NUC Board (Maple Canyon)

Be the first to review this product...
  • Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)
  • 2 x 240Pin DIMM DDR3L 1600/1333
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel BLKNUC5I3MYBE

General
Brand Intel
Model BLKNUC5I3MYBE
Form Factor UCFF (mini PC)
CPU Supported
CPU Type Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)
Memory Supported
Memory installed No Memory
Memory slot 2 x 240Pin DIMM
Memory Type Supported DDR3L 1600/1333
Max Memory Supported 16GB
Dual Channel Memory Supported Yes
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
SATA RAID RAID 0, 1
Graphics
Integrated Graphics Intel HD Graphics 5500
Audio
Channel 7.1 Channel
Communications
Max LAN Speed 10/100/1000Mbps
Front Panel Ports
Front USB 2 x USB 3.0
2 x Internal USB 2.0 via header
Back Panel Ports
DisplayPort 2 x Mini-DP 1.2
Rear USB 2 x USB 3.0
Physical SPEC
Weight 2.7
Features
Features Designed for usages best addressed by 3rd party (or your own) chassis, this Intel NUC with a 5th generation Intel Core™ i3 processor packages a highly versatile computing solution in the smallest form factor. This Intel NUC provides a wealth of features in a compact design, such as eDP support for internal flat panel displays, as well as PCIe x4 expandability for custom daughtercard solutions. And with its three-year supply availability, the Intel NUC Board NUC5i3MYBE will be around to support long development and production

Additional Features

Discrete Trusted Platform Module (TPM v2.0)
Watchdog timer (hard-coded to board reset)
Serial port header
High-Speed Custom Solutions connector (PCIe x4, SATA)
Custom Solutions header (DMIC, AppLaunch GPIO, HDMI_CEC, SMBus, I2C[0:1], GPIO[0:1], 3.3/5 Vstby power), and NFC header
Power connectors: 12-19V DC (back panel), 12-24V DC (internal)
OS certs: Windows 7 & 8.1
OS compatibility: Ubuntu, Linux Mint, Fedora, OpenSUSE, …

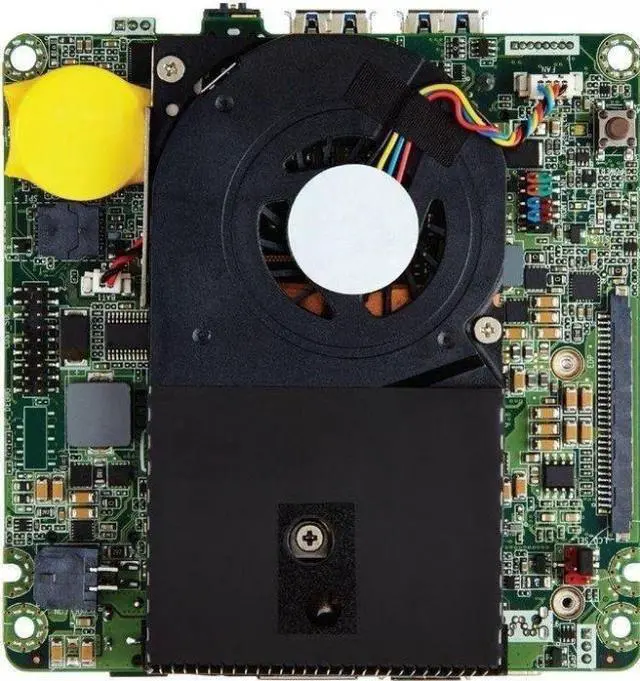

Low-acoustics active cooling design
