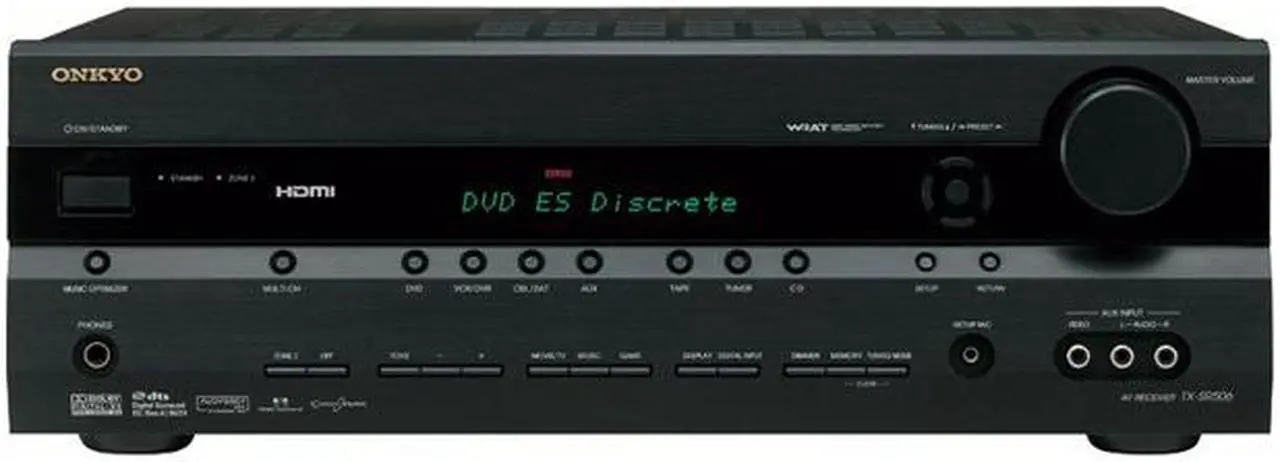

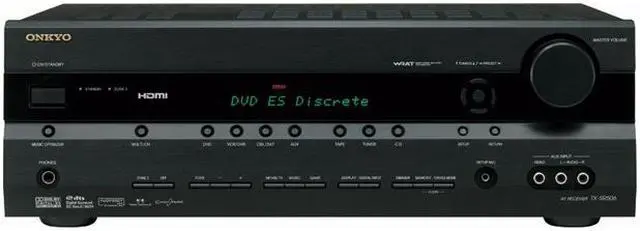

ONKYO TX-SR506B 7.1-Channel Receiver

Name: ONKYO TX-SR506B 7.1-Channel Receiver
Brand: Onkyo
SKU: N82E16882120068
Rating: 5 (23 reviews)

Specs

Reviews (23)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Onkyo TX-SR506B

Model
Brand	ONKYO
Model	TX-SR506B

Details
Type	Receiver
Color	Walnut
Channels	7.1-Channel
Other Specifications	Damping Factor: 60 (Front, 1 kHz, 8 ohms) Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line) Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out) Tone Control: ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) Signal-to-Noise Ratio: 100 dB (Line, IHF-A) Speaker Impedance: 6 ohms–16 ohms Video 1 Vp-p/75 ohms (Component and S-Video Y) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 0.28 Vp-p/75 ohms (S-Video C) 1 Vp-p/75 ohms (Composite) Component Video Frequency Response: 5 Hz–50 MHz, -3dB

Processing
Power Output	Power (8ohms 20-20kHz 0.08%) /Ch: 75W
Frequency Response	5 Hz–100 kHz/+1 dB, -3 dB
THD	0.08% (Rated power)
Decoder	DOLBY PLIIx, DOLBY DD, DOLBY DD-EX, DTS, DTS ES, DTS NEO6, DTS 96/24
D/A Converter	192K/24 Bit DACs

Radio
FM/AM Tuner	FM/AM Preset Memory: 40 stations

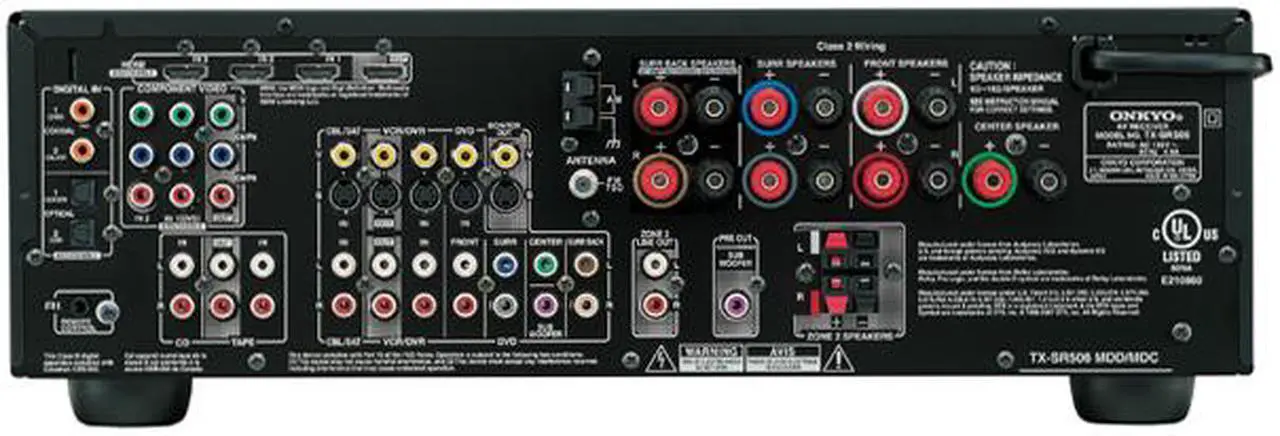

Connectivity
HDMI	3 In / 1 Out
Component Video	2 In / 1 Out
Digital Optical Audio	2 In
Digital Coaxial Audio	2 In
Multi Channel Input	7.1-Channel
Pre-Amp Out	Single Sub
iPod Compatibility	iPod Ready: DS-A2X
Other Connectors	Audio I/O: 6 / 2 Composite I/O: 4 / 1 S-Video I/O: 3 / 1 Front-Panel A/V: L / R / V Powered Zone2 Zone 2 Line Out

Power
Power Supply	AC 120 V, 60 Hz
Consumption	4.9 A

Features
Features	Continuous 6ohms Rated All Discrete Circuitry Bi-amp Capability For Front Audyssey Dynamic EQ Music Optimizer HDMI Version: V1.3 Pass Through ONKYO-RI System Control Color-Coded Speaker Terminals Auto Speaker Calibration W/Mic.: Audyssey 2EQ

Dimensions & Weight
Dimensions	17.13" x 5.88" x 14.94"
Weight	21.56 lbs.
