MAIN OVERVIEW FEATURES: Cable Type: Fiber OpticCable Characteristic: Patch CableFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 µmCable Length: 20 ftConnector on First End: 2 x LC Male NetworkConnector on Second End: 2 x LC Male NetworkFeatures: Zip CordColor: OrangeEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: Lifetime

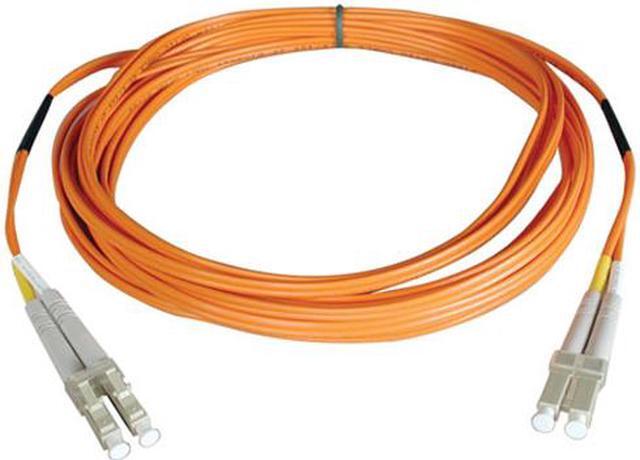

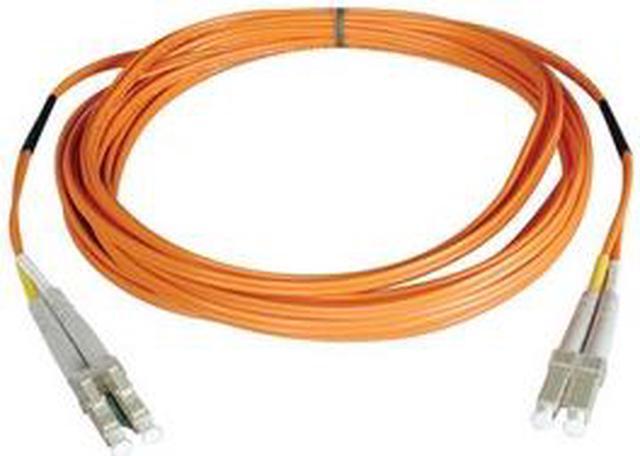

Learn more about the Tripp Lite N520-06M
Model
Brand
Tripp Lite
Model
N520-06M
Type
Fiber
Type
Others
Color
Orange
Details
Length
20 ft.
Connector Number
4
Features
Features
Constructed with 50/125 micron cable
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Fiber type: All glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: Acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation 850NM: 3.5DB/KM maximum, 1300NM: 1.0DB/KM maximum
