TrippLite;N516-01M;N516-01M pdf - Tripp Lite

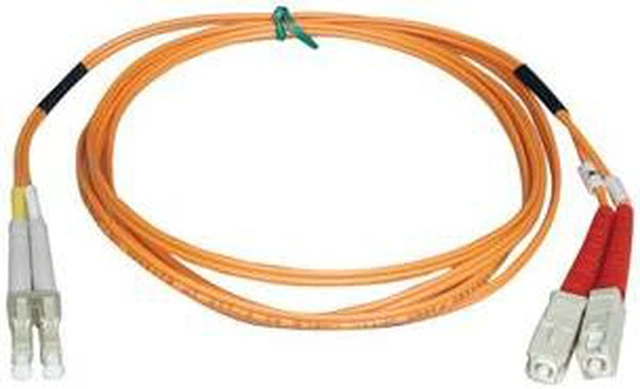

Main image of Tripp Lite N516-01M 3 ft. Duplex MMF 50/125 Patch Cable

Alt view image 2 of 3 - Tripp Lite N516-01M 3 ft. Duplex MMF 50/125 Patch Cable

Alt view image 3 of 3 - Tripp Lite N516-01M 3 ft. Duplex MMF 50/125 Patch Cable

Shop All Tripp Lite Products | Visit TELeasy Store

Tripp Lite N516-01M 3 ft. Duplex MMF 50/125 Patch Cable

(1 from Tripp Lite) Write a Review

Length: 3.3 ft.

3.3 ft.
16.4 ft.

2 Connector Number
Orange

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Cable Type: Fiber OpticCable Characteristic: Patch CableCable Length: 3.28 ftConnector on First End: 2 x LC MaleConnector on Second End: 2 x SC MalePackage Contents: Duplex Fiber Optic Patch Cable1M duplex MMF cable LC/SC 50/125 fiberLimited Warranty: Lifetime

Model
Brand	Tripp Lite
Model	N516-01M
Type	Fiber
Type	Others
Color	Orange

Details
Length	3 ft.
Connector Number	2
Specifications	Technical detailsConnector 1LCConnector 2SCCable length39.4" (1m)FeaturesColour of productOrangeConnector 1LCConnector 2SCWeight & dimensionsCable length39.4" (1m)Other featuresCore / cladding diameter50/125 µm

Features
Features	Constructed with 50/125 micron cable Use on fiber and fibre channel installations SC male to LC male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Secondary coating material: PVC Attenuation 850NM: 3.5DB/KM maximum, 1300NM: 1.0DB/KM maximum Bandwidth 850NM: 220 MHz-KM minimum, 1300NM: 600 MHz-KM minimum Numeric aperture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze

Additional Information
First Listed on Newegg	October 01, 2018
