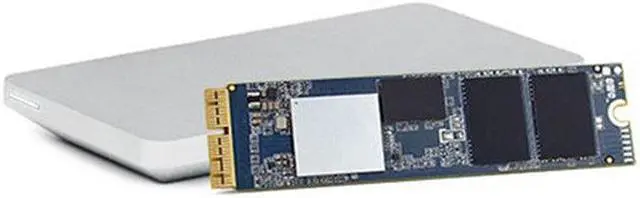

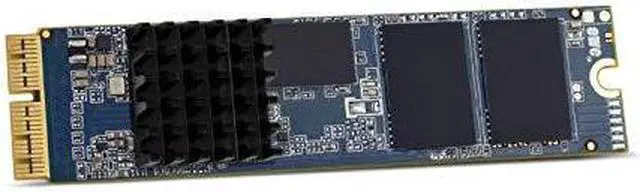

OWC 2TB AURA PRO X2 SSD W/ENVOY MAC PRO
Learn more about the OWC OWCS3DAPT4MP20K
Model
Brand
OWC
Series
Aura Pro X2
Model
OWCS3DAPT4MP20K
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer
Details
Form Factor
M.2 2280
Capacity
2TB
Memory Components
3D TLC
Interface
PCIe 3.1 x4, NVMe 1.3
Controller
Silicon Motion SM2262EN Controller
Performance
Max Sequential Read
Up to 1534 MBps
Max Sequential Write
Up to 1353 MBps
MTBF
1,500,000 hours
Features
Features
2TB Storage Capacity
For macOS 10.13 and Later
Custom Blade Form Factor
PCIe 3.1 x4, NVMe 1.3 Interface
Silicon Motion SM2262EN Controller
3D TLC Synchronous NAND Flash
S.M.A.R.T. & TRIM Support
Envoy Pro SSD Enclosure
Environmental
Power Consumption (Idle)
0.3W
Power Consumption (Active)
5.7W
Operating Temperature
0°C ~ +70°C
Storage Temperature
-40°C ~ +85°C
Operating Humidity
5-95%
Max Shock Resistance
1500G / 0.5 ms
Dimensions & Weight
Height
2.60mm
Width
22.00mm
Depth
89.00mm
Weight
8.00g
Package Content
Package Content

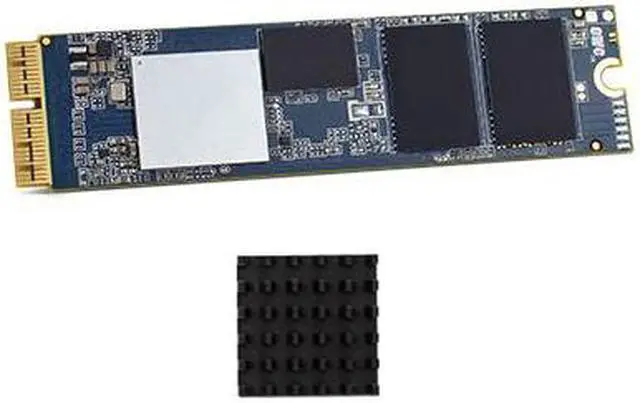

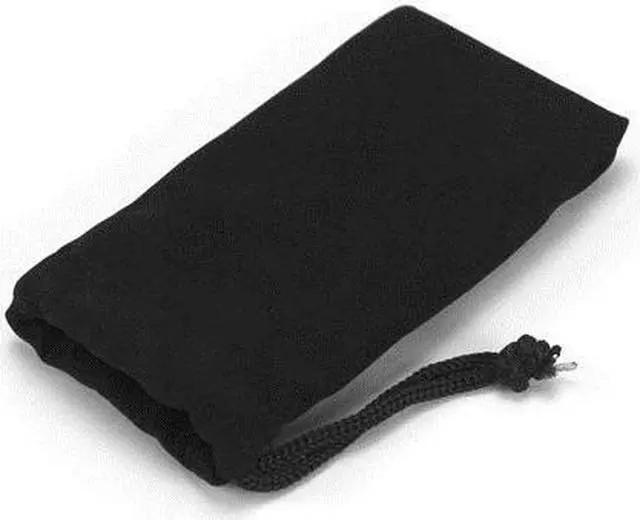

1 x Aura Pro X2 SSD 1 x Tools 1 x Heat Sink 1 x Envoy Pro Enclosure 1 x USB 3.1 Gen 1 (Type-A to Micro-B cable) 1 x Envoy Pro Carrying Case 1 x Envoy Pro User Guide 1 x Heat Sink Installation Guide for Mac Pro (Late 2013)
