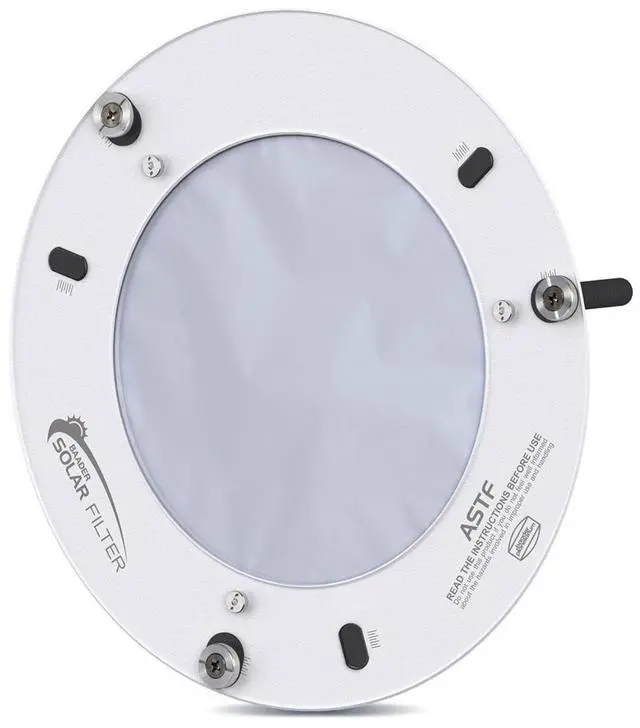

Baader Planetarium 200mm AstroSolar Telescope Filter

Mounted Filters with Baader AstroSolar Safety Film OD 5.0 After 15 years of offering AstroSolar film sheets as DIY-product, this system of Baader Solar Filters is designed to retain the true optical quality of the diffraction limited AstroSolar Safety Film. Baader Solar Filters provide a professional and secure solution to observe and image the Sun using AstroSolar Safety Film OD 5.0. Many ready made filters do stretch the filter material like a drumhead in order to make it look like a piece of glass - this absolutely does destroy the image quality, rendering the film useless for high magnification work.

AstroSolar must be mounted entirely stress free in order to perform like a high precision plane optical window. It sounds like a contradiction with traditional perception of quality, but AstroSolar must show slight ripples! Only when the film is being put under stress by an improper cell mount it performs just like any single side coated glass-filter made of untreated float glass. Original Baader AstroSolar Safety Film (OD 5.0 ), cell mounted and quality inspected by skilled members of their staff Clear white IR-rejecting front ring with reinforcing raised edges along the outer and inner circumference, designed to protect the solar filter material from contact with any sharp metal edge No tool mounting and adjustment of the centering bolts to fit a wide variety of mechanical tube diameters.

Bolts made to contact the outside or optional (if appropriate) the inside of the optical instrument tube Non-rotating sliding fasteners made from aluminum that hold the centering bolts. These metal sliders are equipped with a machined indicator to point towards the adjustment index Additional Phillips screws are integrated into the sliding fasteners, so that the centering bolts can be firmly fastened with a screw driver if preferred by the user Index scale provided beside each adjustment slot - adjacent to each sliding fastener, for fast and repeatable adjustment of the filter cell onto different telescope tubes Black sliding washers supplied to securely cover the full length of the adjustment slots in the aluminum frame - for blocking sunlight from passing trough the filter cell beside the filter area Three security straps included, to secure the position of the filter cell with Velcro-adhesive pads.

A safety feature to absolutely ensure a secure fit in front of the telescope under any circumstances (gust of wind asf) Warning text printed onto the front side of each filter cell: Read the Instructions before use Cardboard gift box fit for safely shipping the filter ASTF (AstroSolar Telescope Filter) Baader Solar Filter for high-end Telescopes This family of solar filters is made in the most elaborate way. AstroSolar must not be put under stress, neither during mounting the film, nor during any temperature change. For this reason the ASTF-Filter features a temperature compensated cell. The film itself is repeatably cemented onto an injection molded ring, whereas the substrate of that ring has the same thermal expansion like the Astro Solar Filter material itself. This free floating film-carrier ring is held onto the aluminum frame with the help of another holding ring made of fiber reinforced plastic - for a maximum of security against breaking of the cell. This temperature compensated cell enables the AstroSolar filter material to retain its excellent optical quality at any temperature - be it -30Deg C or +50Deg C. Safe for solar observation and photography with all high-end telescopes and extreme tele-lenses. Suitable for highest magnifications and detailed observation of individual sunspots AstroSolar Safety Film OD 5.0, mounted stress free in temperature compensated cell No astigmatism during winter observation or with temperature changes in summer
Scope of supply: ASTF Filter come with two sets of centering bolts in 38mm length
