    iOptron SkyTracker Pro Camera Mount with Polar Scope, Mount Only #3322 AZ

    • Mount:Ultra compact single axis EQ
    • Body material:Die-cast aluminum with ABS cover
    • RA shaft:25mm dia., steel
    • Worm wheel:74mm dia., 144 teeth aluminum alloy
    • Worm gear:11mm dia., brass
    • Worm period:600 sec
    • Bearing:4 pieces
    • Motor drive:DC servo
    • Tracking:R.A. automatic
    • Tracking speed:1X Cel, 1/2 Cel, solar, lunar, N/S
    • Fast slew speed:180X, forward and reverse
    • Polar sight hole:Approx. 8 deg. FOV
    • Polar scope:6 deg. FOV, dark field illuminated (8 adjustable intensity)
    • Power requirement:Internal rechargeable battery
    • Battery type:Li-Poly, 3.7V, 2000mAh
    • Duration of operation:Up to 24 hours at 20 deg. C
    • Power charge port:Micro USB (5V), 80% charge in 5 hours
    • Mounting ring:53mm (2.09") Dia., 3/8" or 1/4" post threads
    • Body-base connection:Vixen dovetail, 3/8" socket with 1/4" converter
    • Alt-Azi adjustable Base:Vixen style saddle, 3/8" socket
    • Latitude adjustment range:-30 - 65 deg. (with Alt-azi base)
    • AZ adjustment range:+/-5 deg.
    • Base diameter:80mm
    +
    +
    Overview
    Reviews

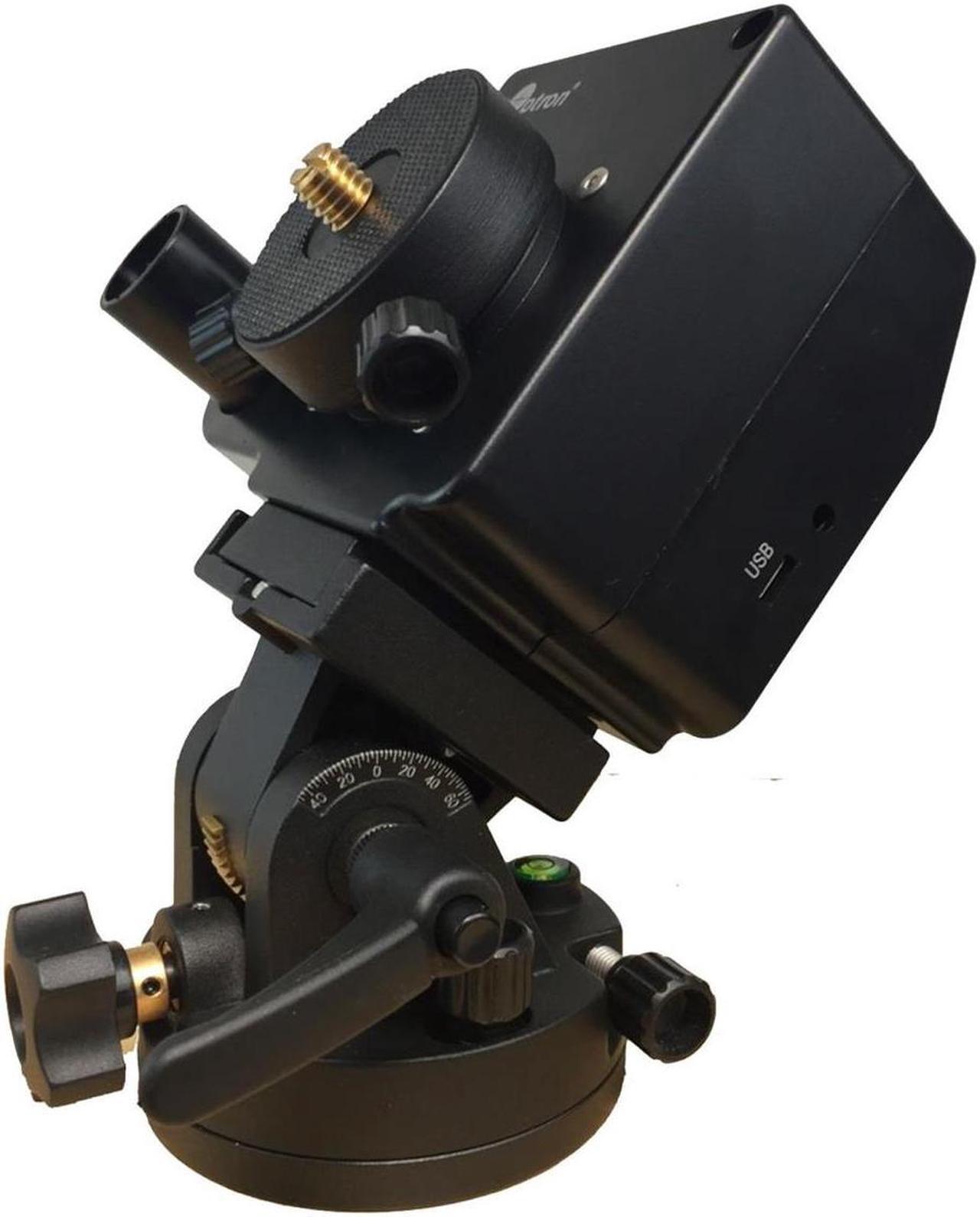

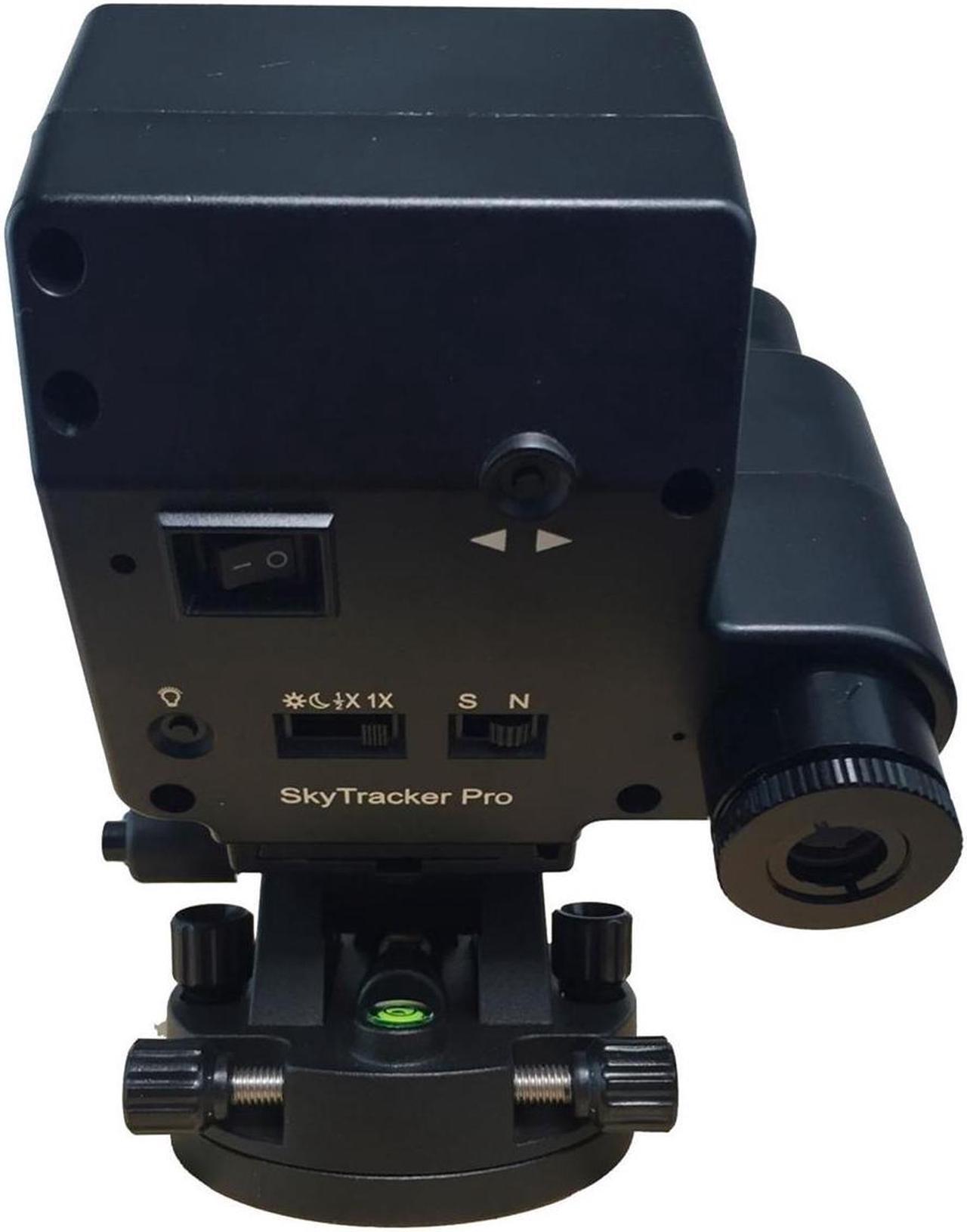

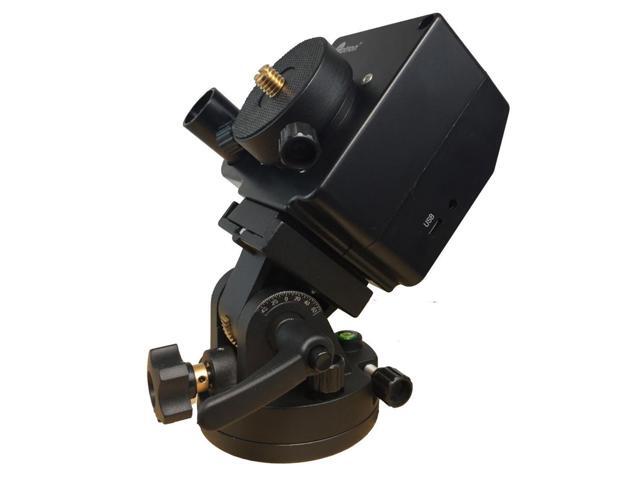

    Introducing The Skytracker Pro - iOptron's Next Generation Camera Tracking Device!

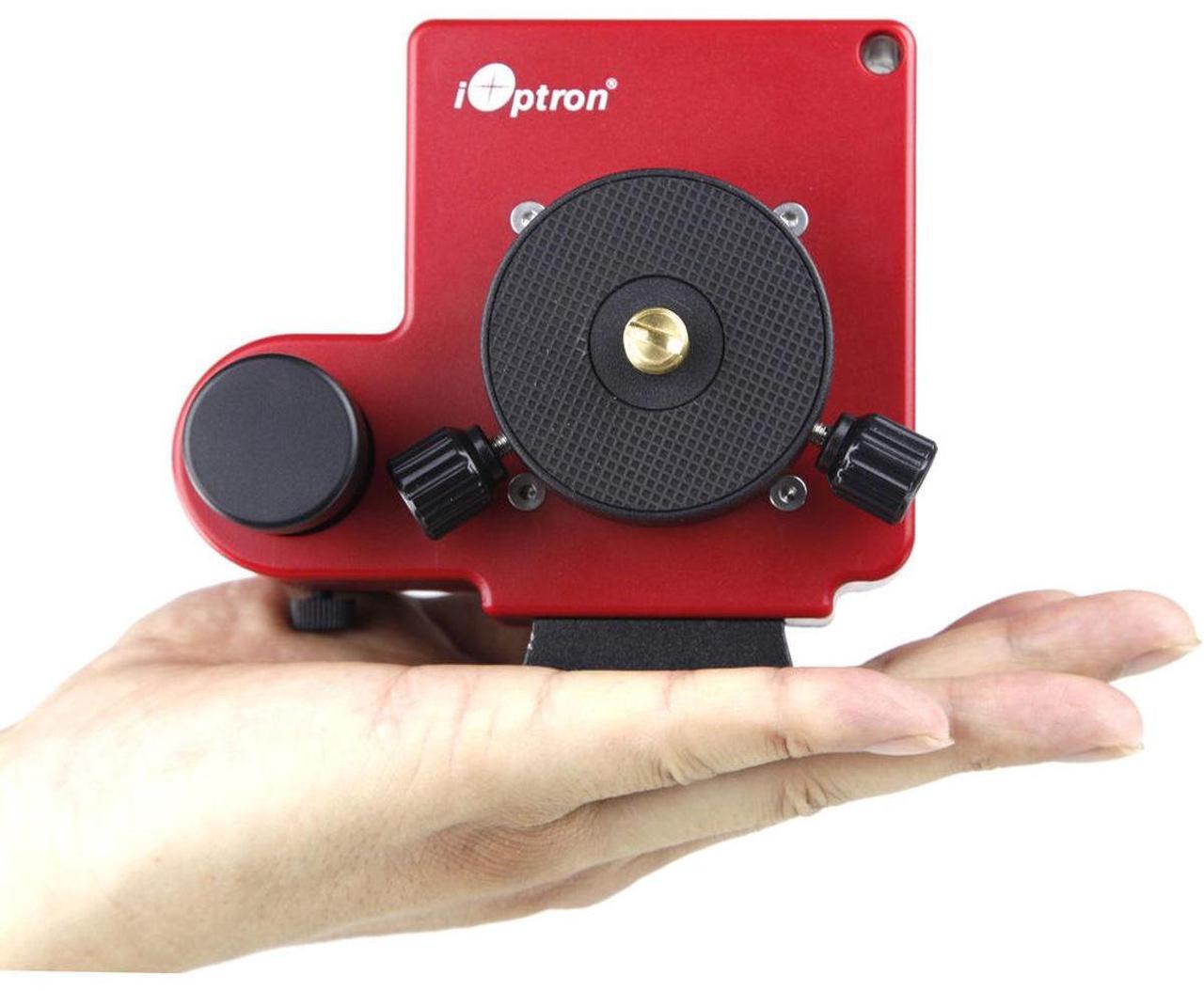

    Upgraded from SkyTracker, the Pro is more compact, small enough to fit on your palm, better precision, silent tracking, it even has a built-in rechargeable power source that runs for up to 24 hours of continuous operation. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with eight brightness levels. Using with iOptron smart phone app, quick and accurate polar alignment is just a joy. The SkyTracker Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.

    All metal structure with ABS covers

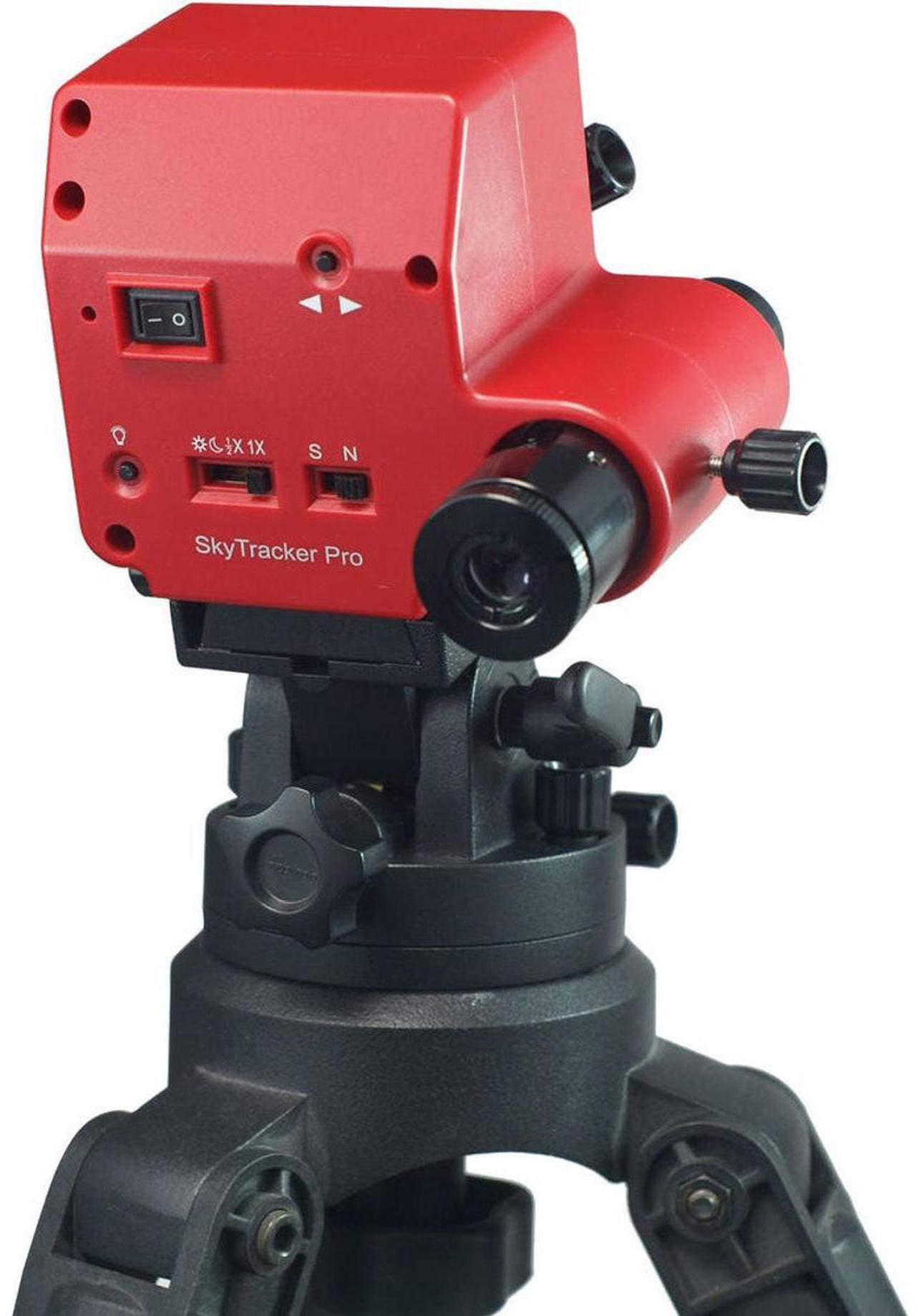

    Attaches to a camera tripod with 3/8" or 1/4" threads

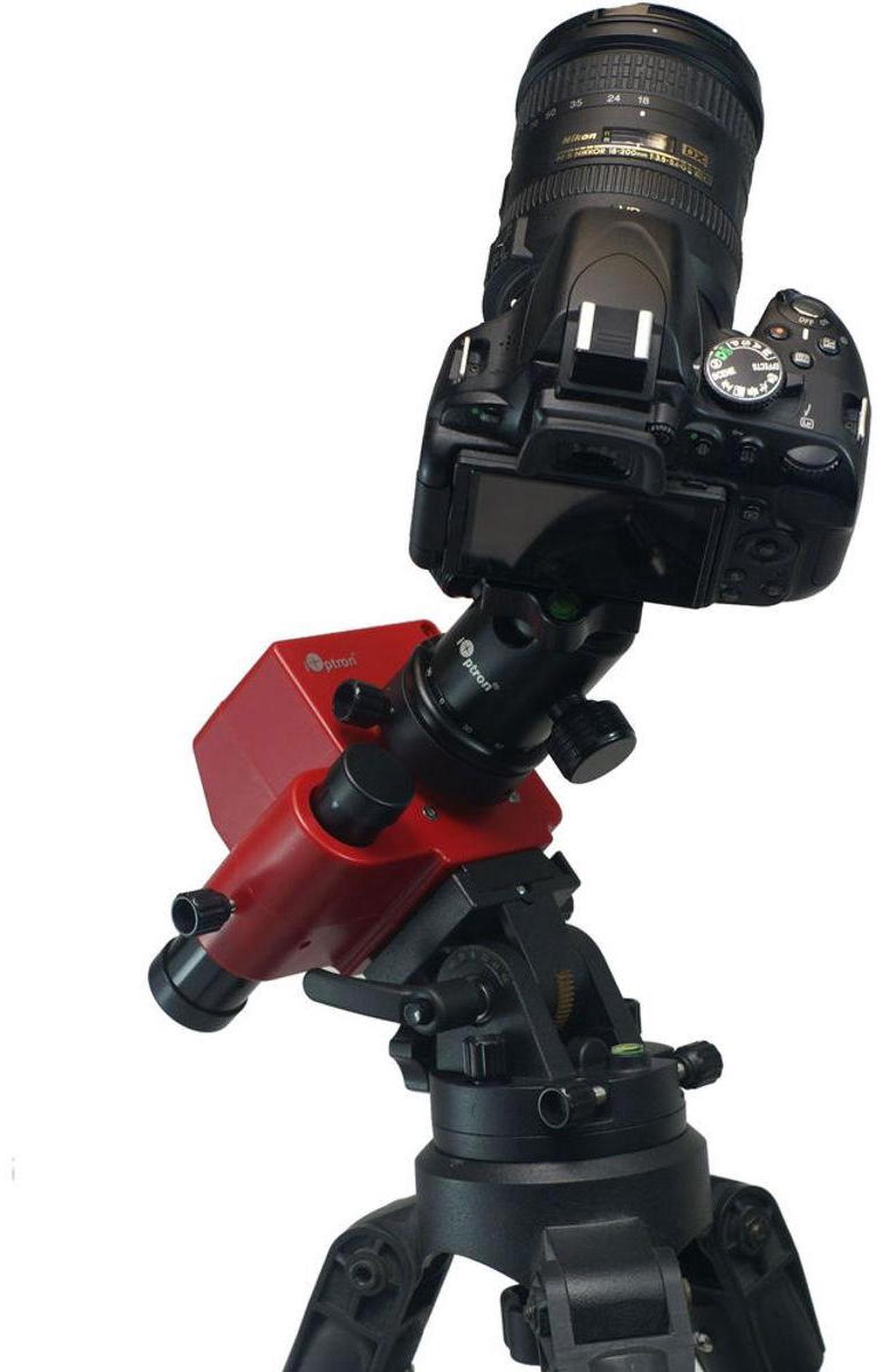

    Accepts cameras weighing up to 3 kg (6.6 lbs)
    Silent tracking for smooth camera motion, perfect for long-term exposures
    Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
    Reversible mounting post for both 3/8" and 1/4" threaded ball head mounting
    Includes iOptron AccuAlign dark-field illuminated polar scope
    Adjustable polar scope illumination with eight brightness levels
    4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
    Quick slew (180X max.) for camera framing adjustment
    Operation in both northern and southern Hemisphere
    Built-in rechargeable battery with Micro USB port for power and charging
    Up to 24 hours of operation (20 deg. C)
    1/4" - 3/8" thread converter included

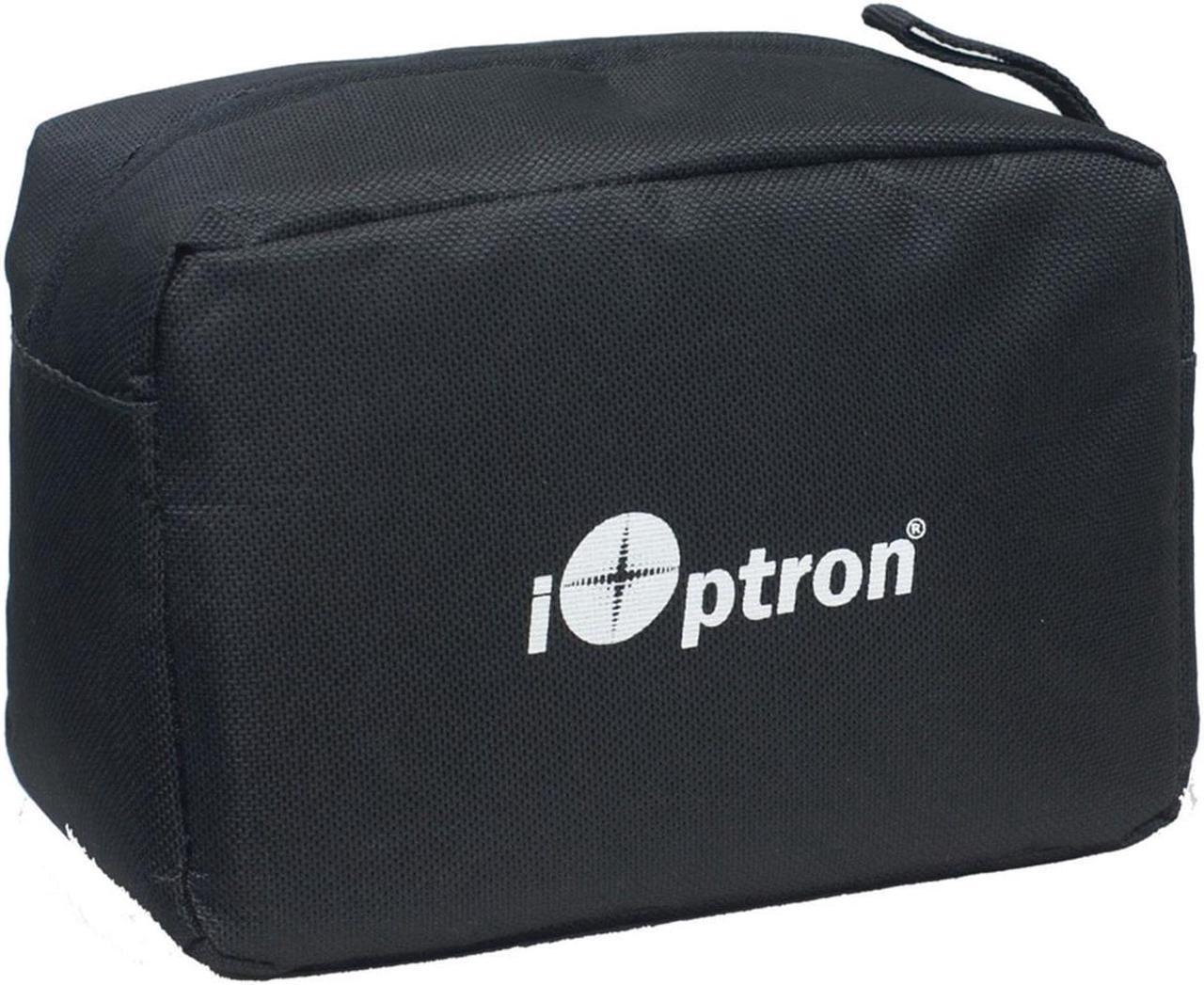

    Padded carry bag included
    Optional ball heads available separately (#3305A)
    Optional tripod (#3221)
    Optional counterweight balance kit (#3324)

    iOptron have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position and have made big improvements on the SkyTracker Pro's removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyTracker Pro head (without the base) directly to any standard photographic tripod with 1/4" or 3/8" threads. The SkyTracker Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.
