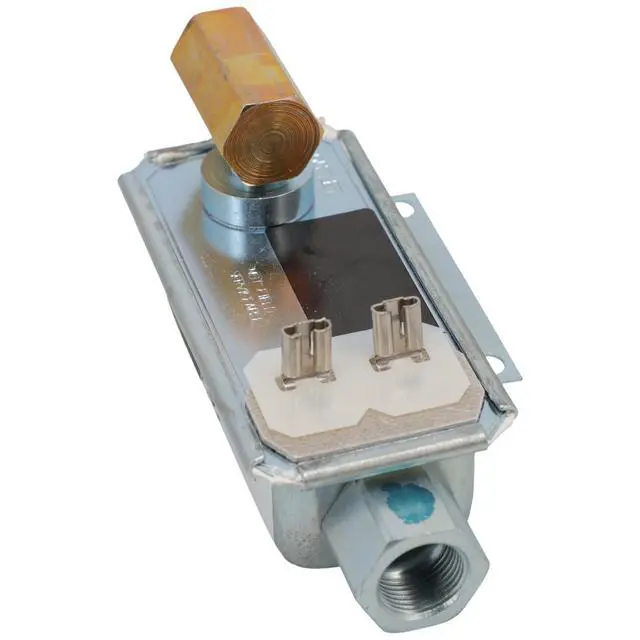

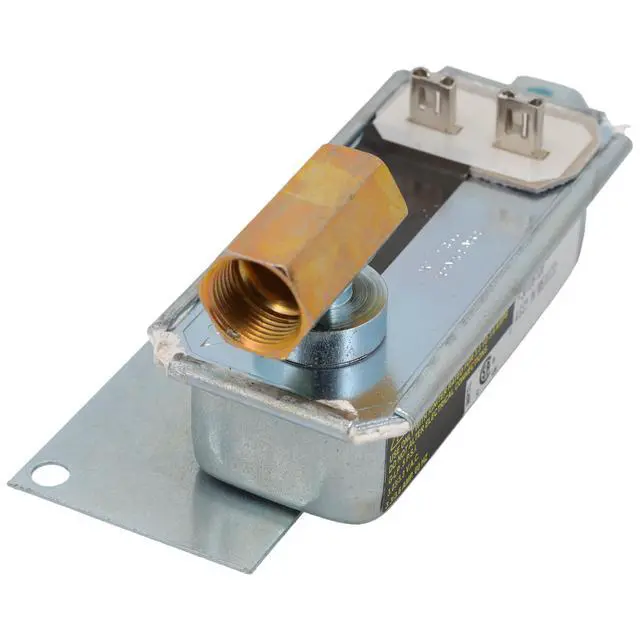

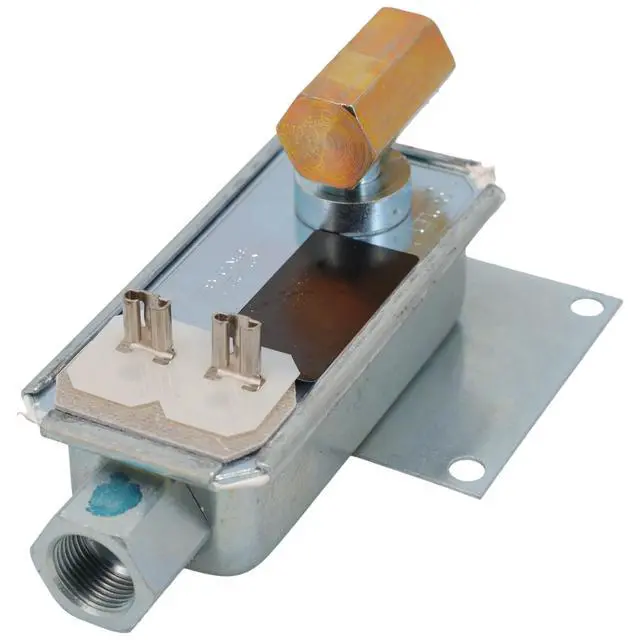

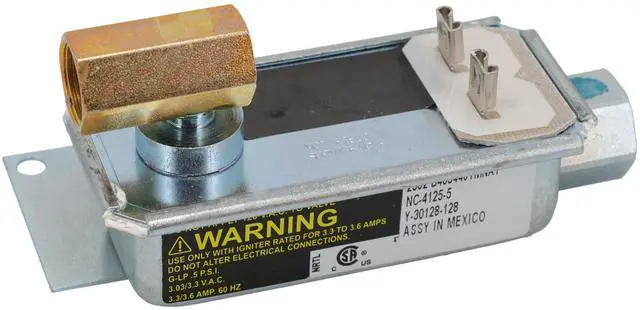

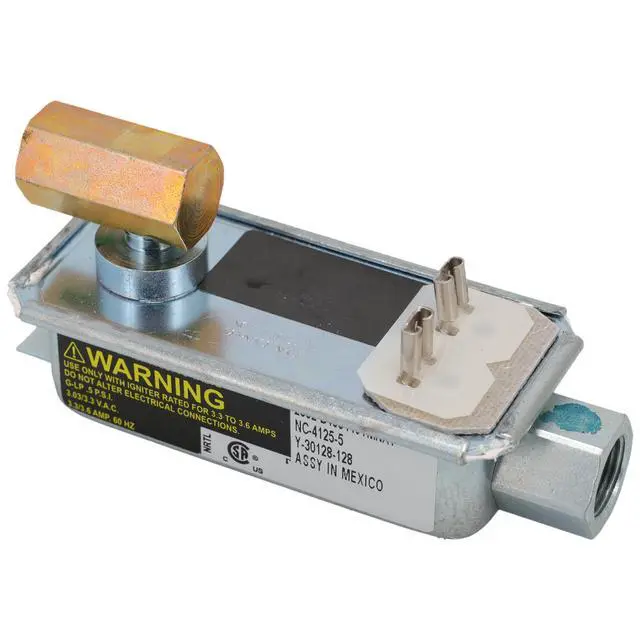

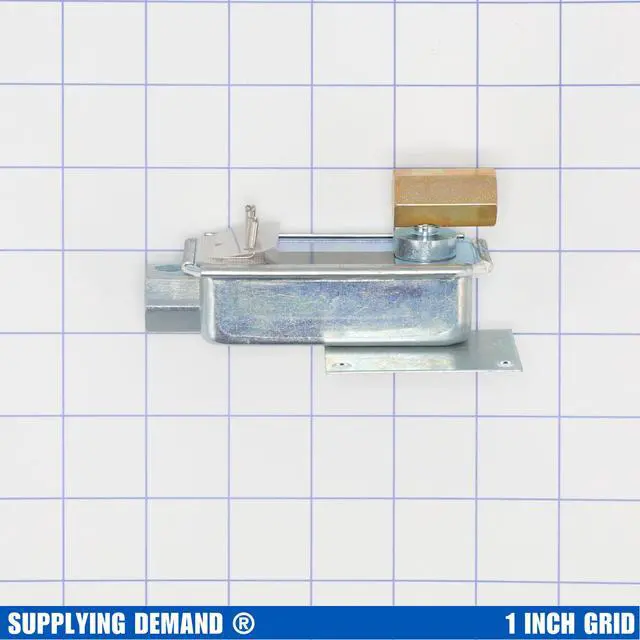

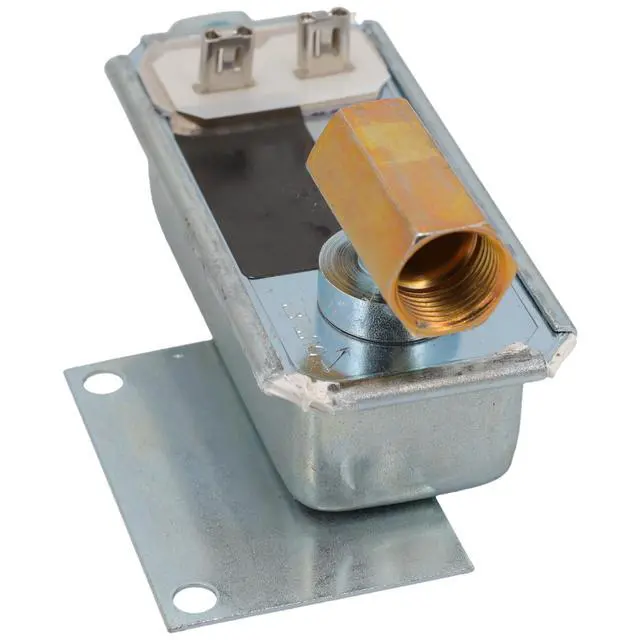

Y-30128-128 Range Single Series Gas Safety Valve - Replaces NC-4125-5

The Range Single Series Gas Safety Valve provides effective safety by reliably managing gas flow in your appliance. Engineered for dependable performance, this range gas safety valve aids in improving your model-compatible appliances' operation. Featuring sturdy construction, the range safety valve delivers lasting durability, offering reassurance for your gas-powered appliances. Boost your kitchen's safety with the range gas safety valve, designed to assist in preventing gas leaks and maintaining efficient operation.
Voltage: 3.03VAC to 3.3VAC Compatible with 3.03 / 3.3 VAC, 60Hz. Never apply 120 VAC to the valve. For troubleshooting, measure the AC voltage supplied to the valve. If the igniter doesn't glow, inspect the igniter first.
Current: 3.3 A - 3.6 A Use only with an igniter rated for 3.3 to 3.6 amps. Do not modify electrical connections. This gas valve needs the igniter to be activated before gas can pass through. For safety, the gas valve will not permit gas flow if the igniter is not functioning. Check both current and voltage during troubleshooting. Caution Always disconnect power and gas supply before servicing. The valve will not open if the igniter is not drawing the correct amperage, even if it appears to be glowing. After repairs, make sure gas line connections are properly leak-tested. NG and LP
Compatible Gas pressure: 0.5 PSI. Suitable for both Natural Gas (NG) and Propane Gas (LP). Item

Specifications

Resistance between the connectors is approximately 1.1 to 1.4 ohms.
Dimensions: 3-5/8" x 1-11/16" x 1".
Model: NC-4125-5 Y-30128-128. CSA approved. This part is not repairable
