Wired WIFI 7 Inch Monitor BUS 2 Wire Video Door Phone Intercom systems Kit for home 2 Units Apartment Night Vision Support Remote APP Doorbell,1 Doorbell + 2 Monitor

Wired WIFI 7 Inch BUS 2 Wire Video Door Phone Intercom systems Kit for home 2 Units Apartment Night Vision Support Remote APP

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity, central power supply. Use Plug-in connectors and DIP switchers for rapid installation. Integrated Multi functions with simple operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode. Dual intercom communication between indoor units, When indoor monitor connected to your wireless wifi router, you can connect mobile phone to indoor monitor, then mobile phone also can record video or open the door etc.

There are several ways to open the door lock when you are outside the door: using the RFID keyfobs. This item comes with 5 RFID keyfobs (including added keyfob and deleted keyfob). Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

Features:

1. The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable.

2. Using integrated power suppply, max support 2 outside unit and 6 indoor monitors

3. Little rain and oxidation-proof for the durable aluminum alloy outdoor unit. with White Led Night Vision
4.7" color TFT LCD without radiation, low power consumption and high definition.

5. To unlock 2 locks simultaneously

6. Handfree intercom.

7. Mute indoor intercom function.

8. Monitoring the outside of the door.

9. Volume, brightness and contrast adjustable.

Specifications

:

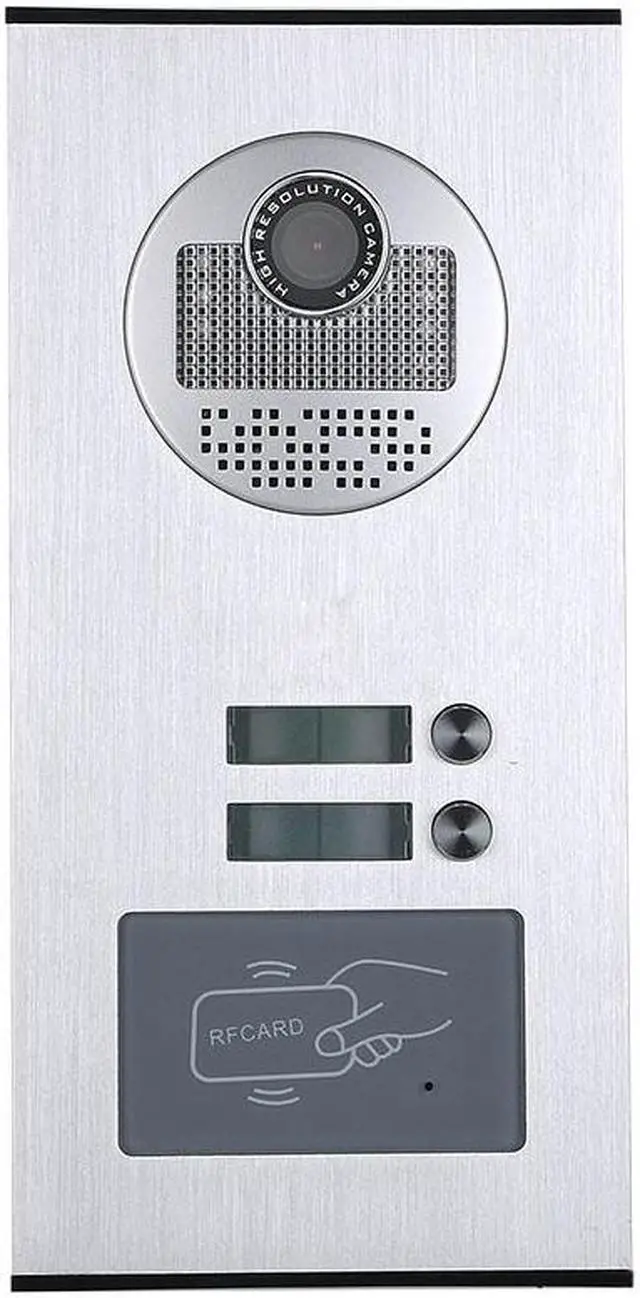

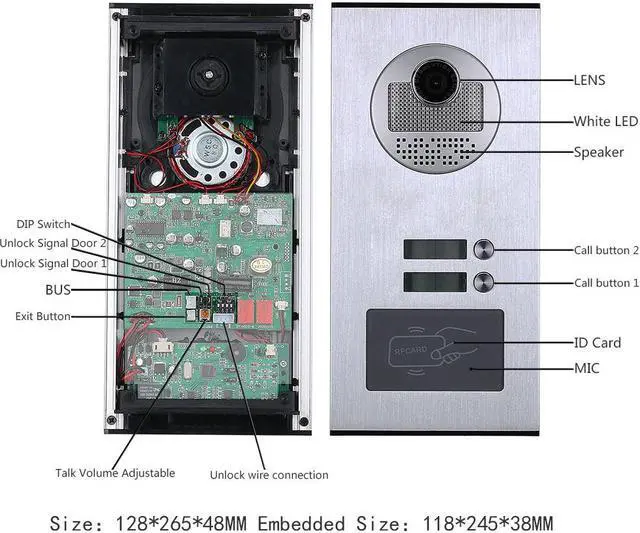

Outdoor Camera

1. Aluminum alloy outside unit with White Led Night Vision

2.
Camera: 1/3" CMOS 1000TV line

3.
View angle: 92°

4.
Connection way: BUS 2-wire

5.
User Capacity: 2000 User Card

6.
Card Type: RFID compatible card

7.
Frequency: 125Khz

8.
Installation: Embedded mounted

9.
Size: 265*128*48mm

10.
Material: Aluminum alloy

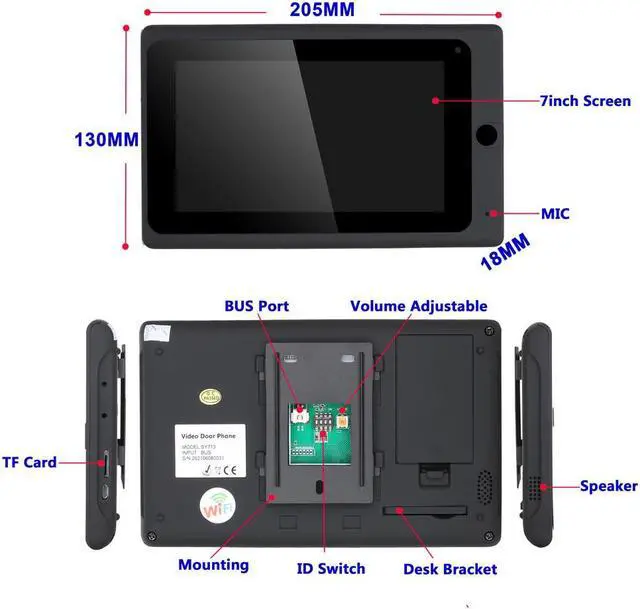

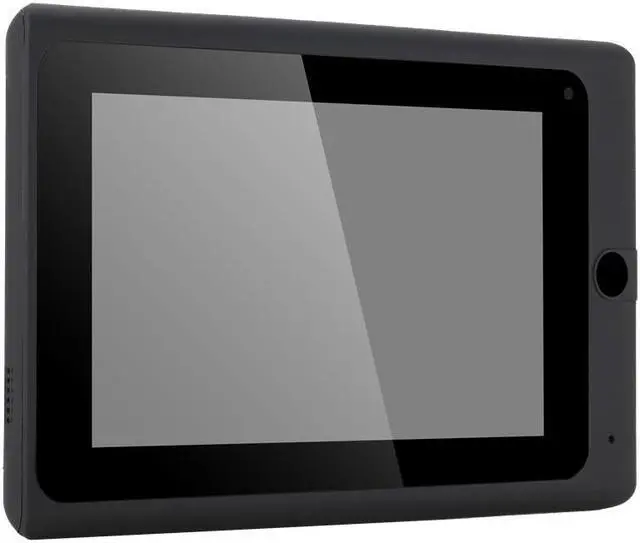

Monitor

1.
Display: 7" TFT LCD( 16:9 )

2.
Resolution: 1024 (H) X600 (V)

3.
Unlock: Support mobile phone and tablet to unlock

4.
Additional memory: Support additional TF card (64GB max. )

5.
Touch: Yes

6.
Wifi: Yes

7.
Connection way: BUS 2-wire

8.
Dimensions: 205 * 138 * 18 (MM)

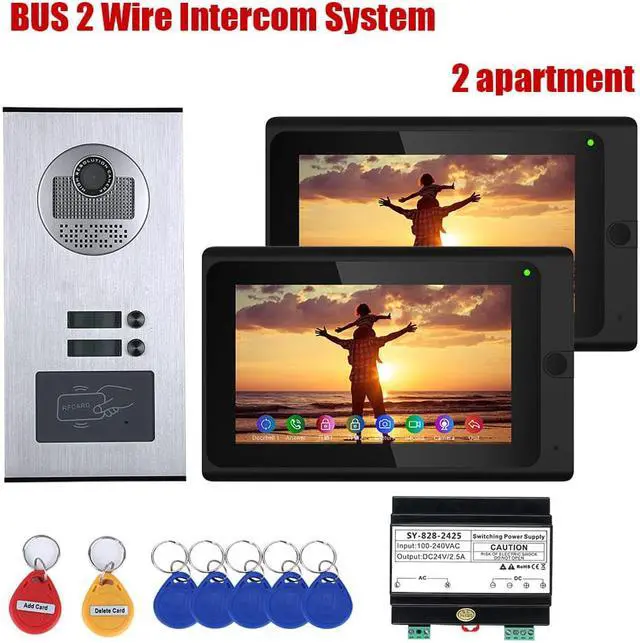

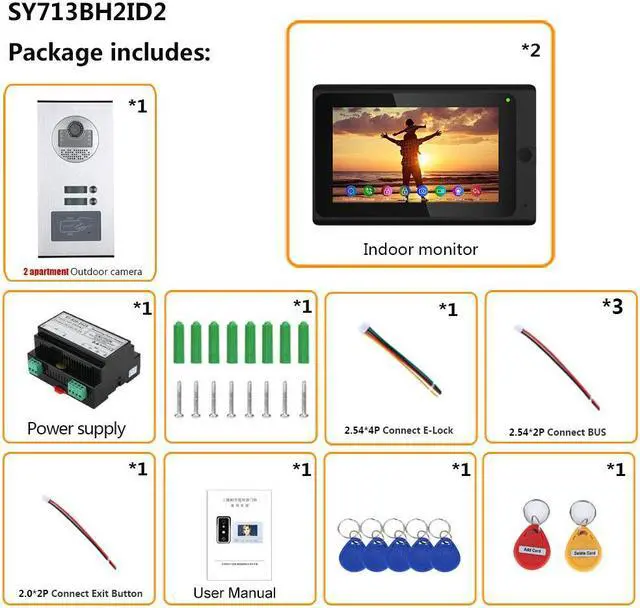

Package includes:
1 * Outdoor Unit (Embedded mounted Camera)
2 * Indoor Unit (Monitor)

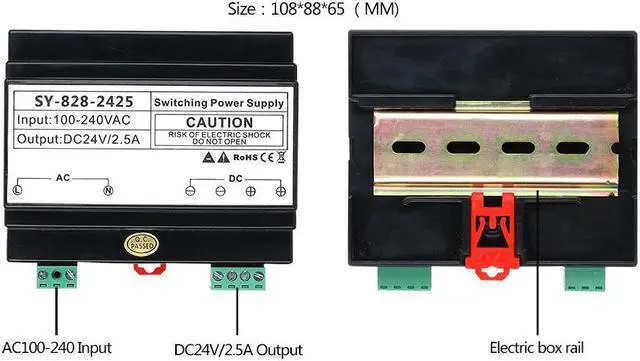

1 * DC24V 2.5A power suppply
1 * 4-core Connection locks terminal wire
3 * 2.54 *2P 2-core Connection terminal wire
1 * 2.0 *2P 2-core Connection terminal wire
1 * Screws
1 * User Manual
