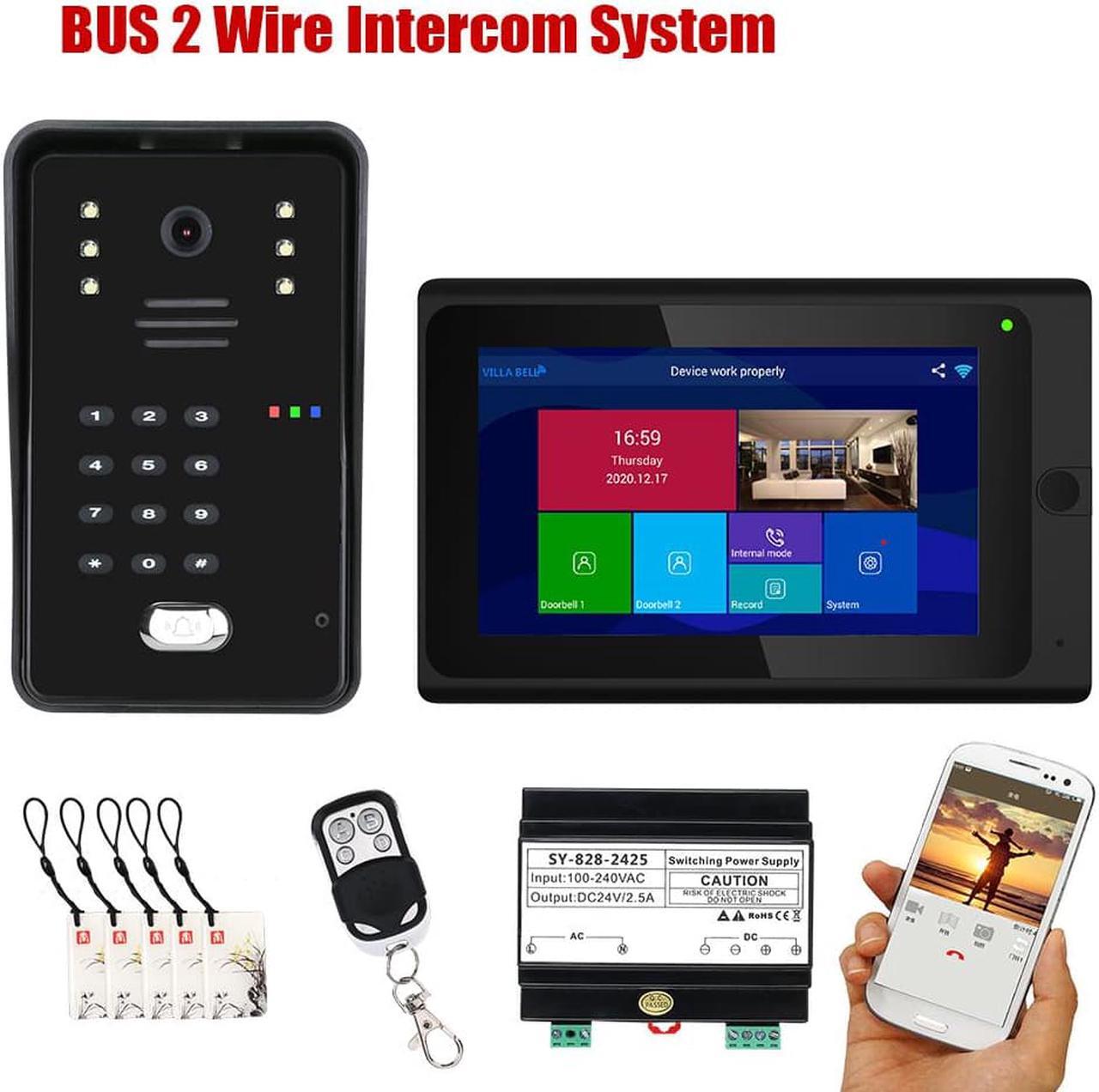

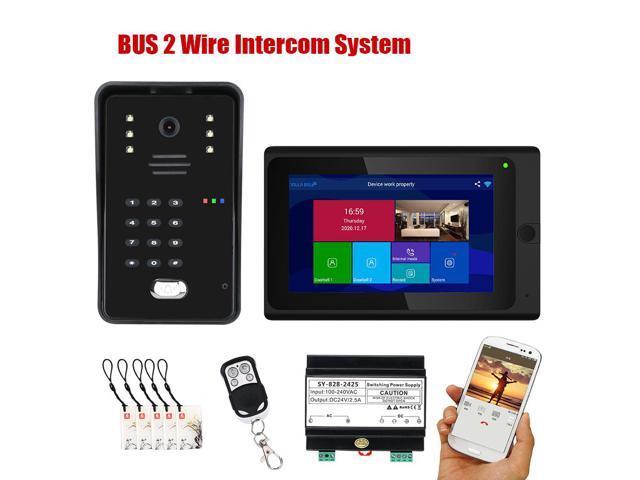

Wireless Wifi 7 Inch Doorbell BUS 2 Wire RFID Video Door Phone Intercom systems Support Remote APP home Access Control System 1 Monitor + 1 Camera

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity, central power supply. Use Plug-in connectors and DIP switchers for rapid installation. Integrated Multi functions with simple operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode. Dual intercom communication between indoor units, When indoor monitor connected to your wireless wifi router, you can connect mobile phone to indoor monitor, then mobile phone also can record video or open the door etc.

Features:
1. The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable.
2. Using integrated power suppply, max support 2 outside unit and 6 indoor monitors
3. Little rain and oxidation-proof for the durable aluminum alloy outdoor unit. with White Led Night Vision
4.7" color TFT LCD without radiation, low power consumption and high definition.
5. To unlock 2 locks simultaneously
6. Handfree intercom.
7. Mute indoor intercom function.
8. Monitoring the outside of the door.
9. Volume, brightness and contrast adjustable.

10. Group talk/intercom function
11.
Fingerprint type: 1000 IC cards unlock, password unlock, 99 pcs remote controls to unlock.
12. The indoor monitor can support to connect 8 mobile phone APP user, Support IOS/Android system mobile phone, then the mobile phone can view and unlock.

Specifications

:

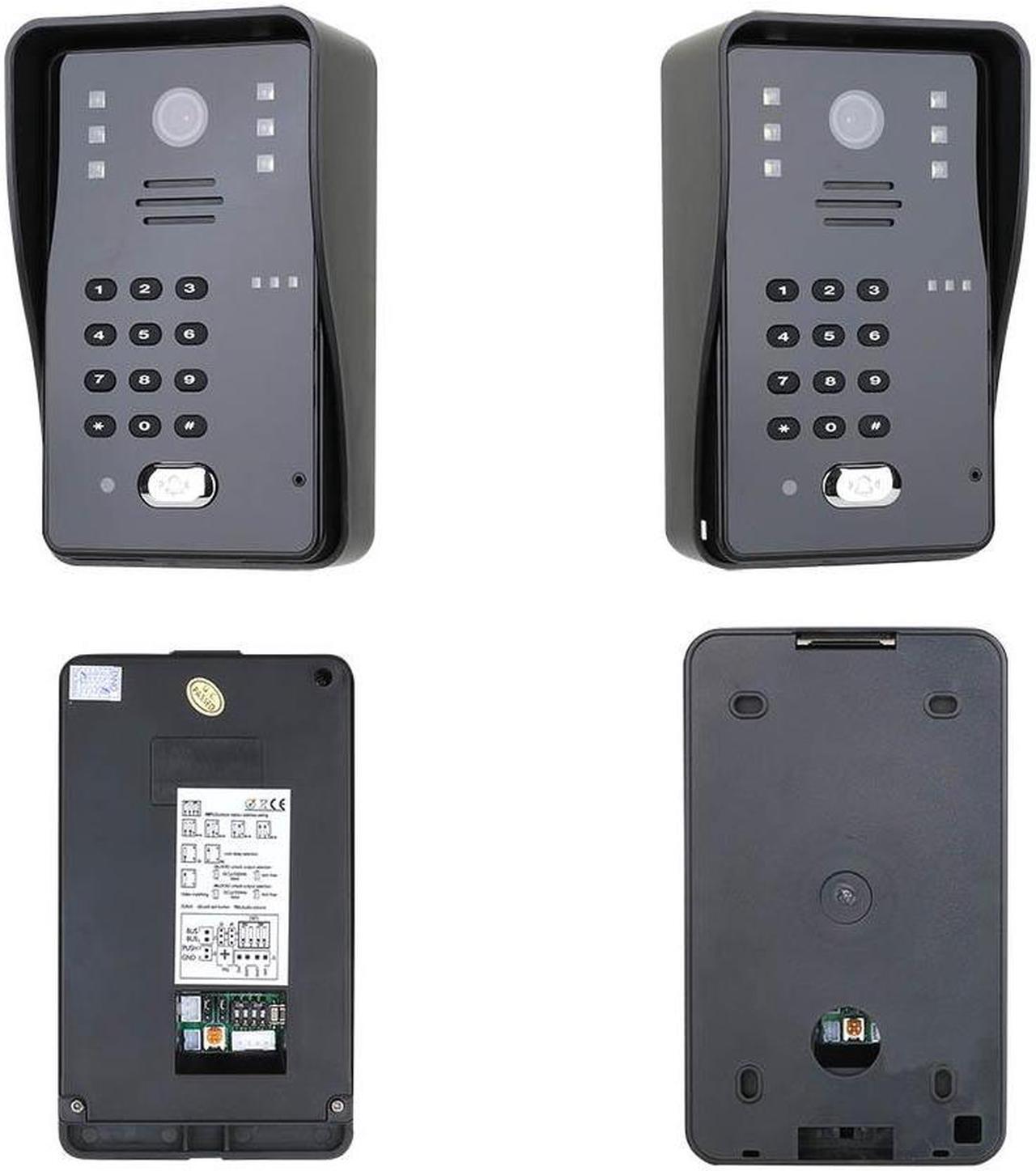

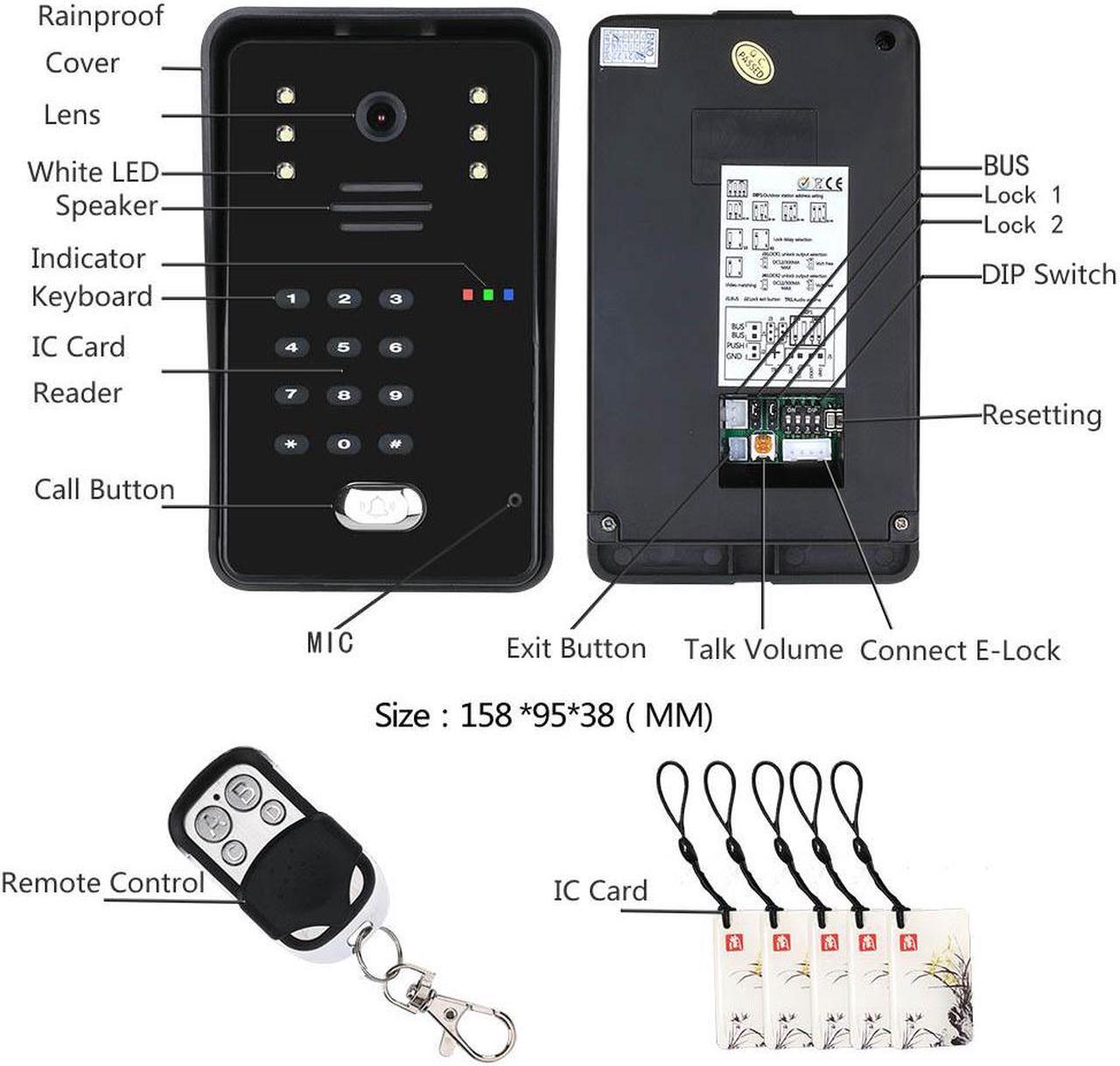

Outdoor Camera
1. Aluminum alloy outside unit with White Led Night Vision
2.
Camera: 1/3" CMOS 1000TV line
3.
View angle: 92°
4. Min.
Illumination: 0.5L ux
5.
Fingerprint type: 1000 IC cards unlock, password unlock, 99 pcs remote controls to unlock.
6.
Connection way: BUS 2-wire
7.
Installation: Wall mounted
8.
Working Temperature: -30°C to 50°C
9.
Size: 158*93*38mm

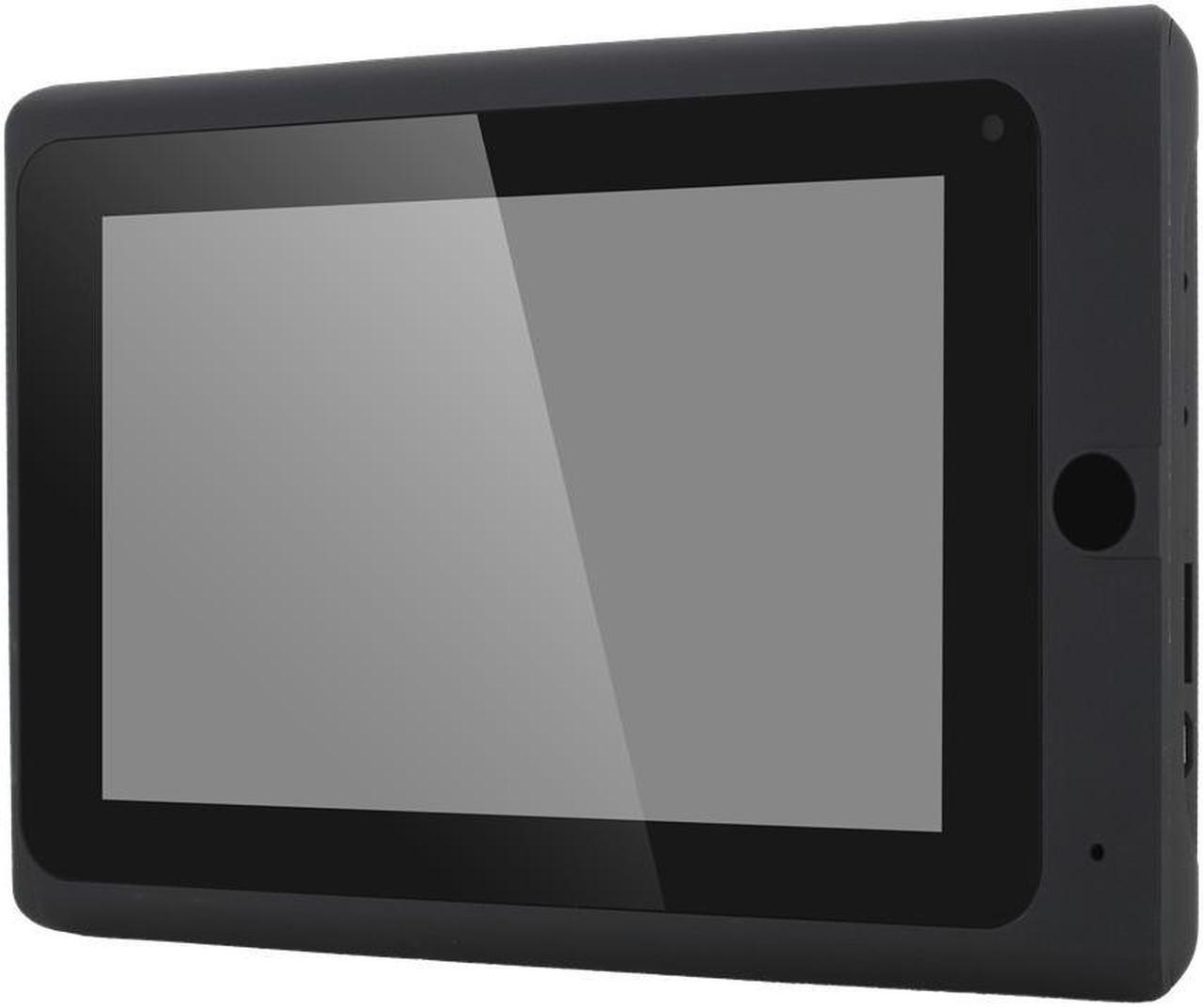

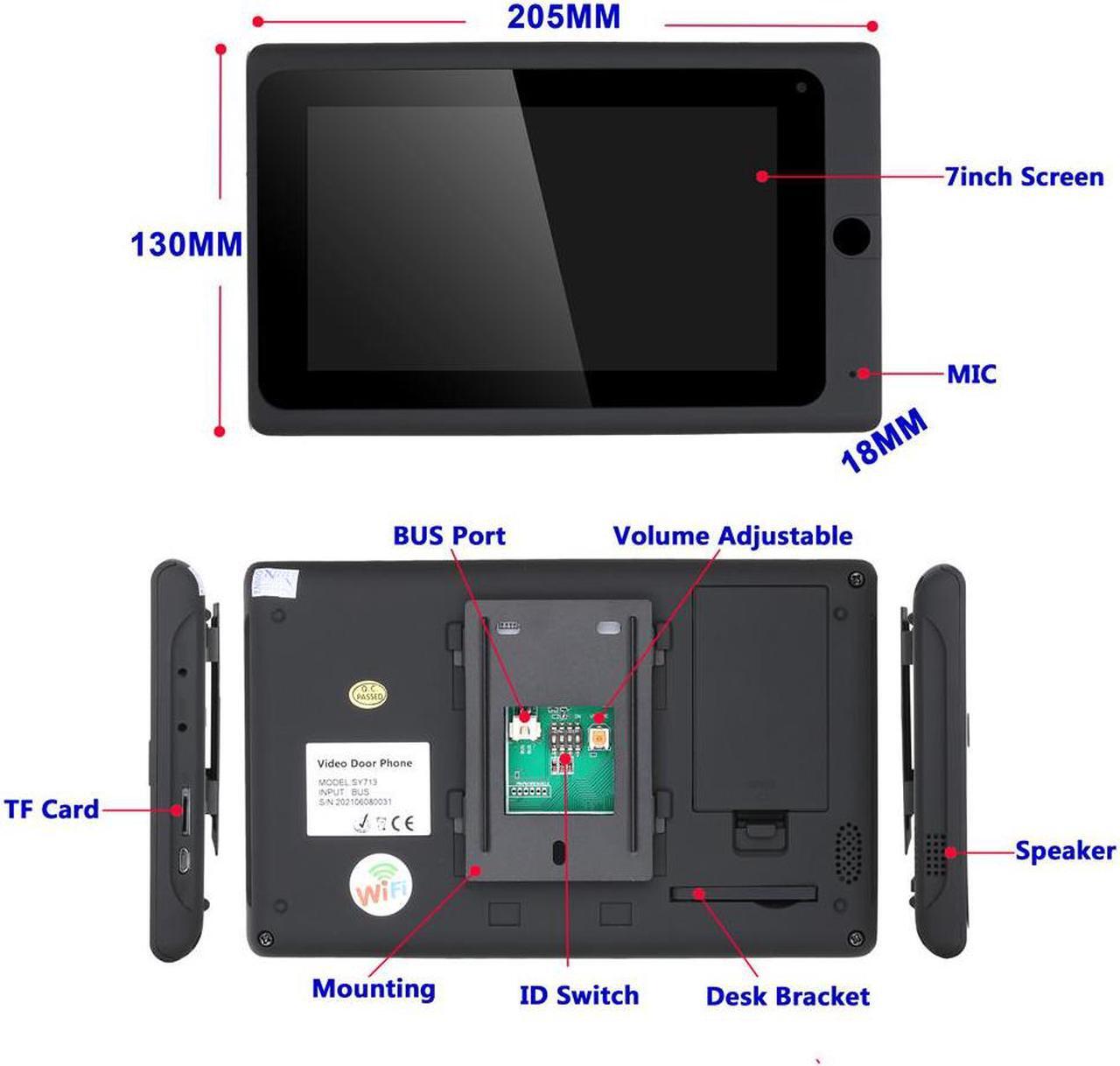

Monitor
1.
Display: 7" TFT LCD( 16:9 )
2.
Resolution: 1024 (H) X600 (V)
3.
Unlock: Support mobile phone and tablet to unlock
4.
Additional memory: Support additional TF card (64GB max. )
5.
Touch: Yes
6.
Wifi: Yes
7.
Connection way: BUS 2-wire
8.
Dimensions: 205 * 138 * 18 (MM)

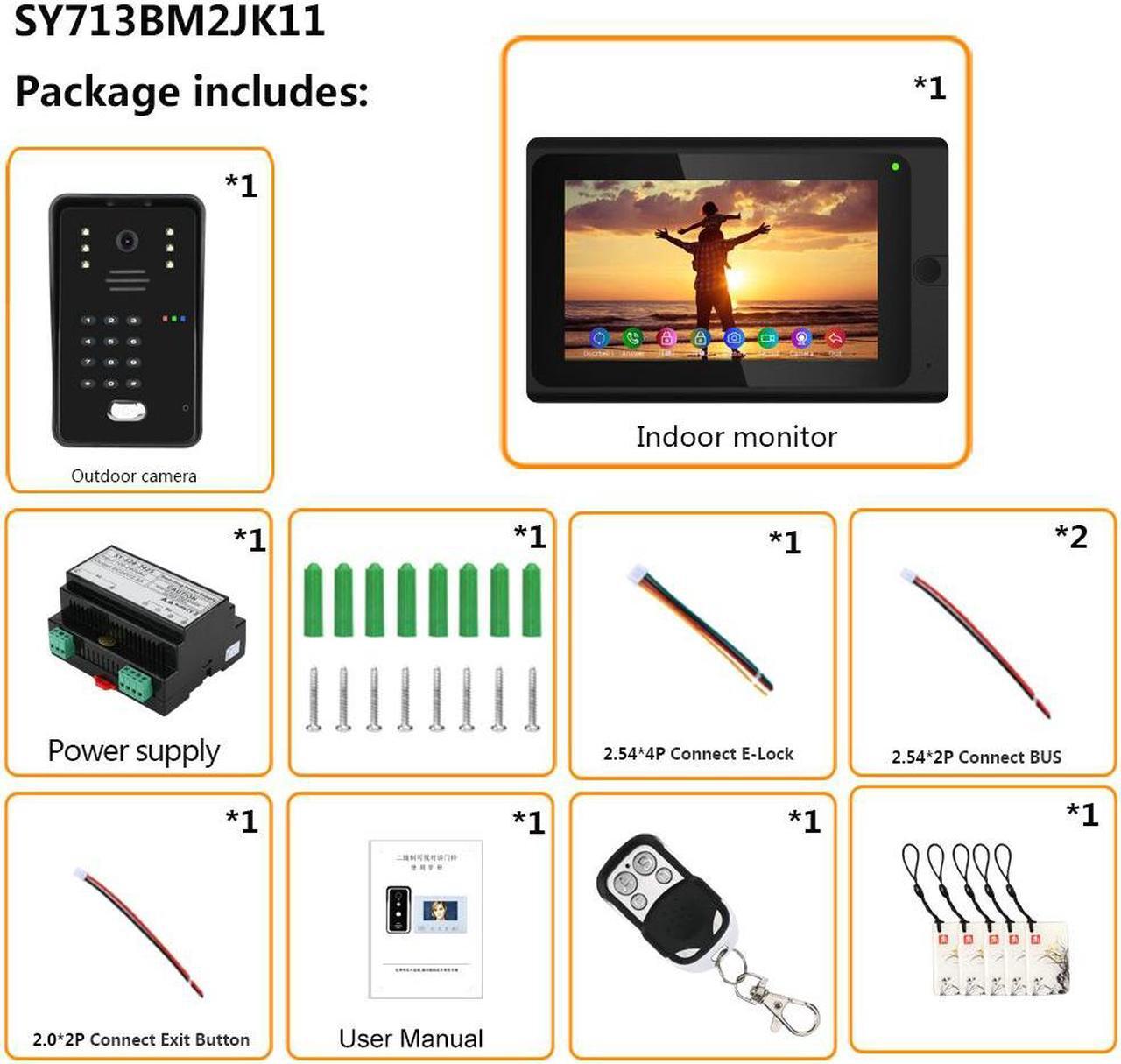

Package includes:
1 * Outdoor Unit (Camera)
1 * Indoor Unit (Monitor)

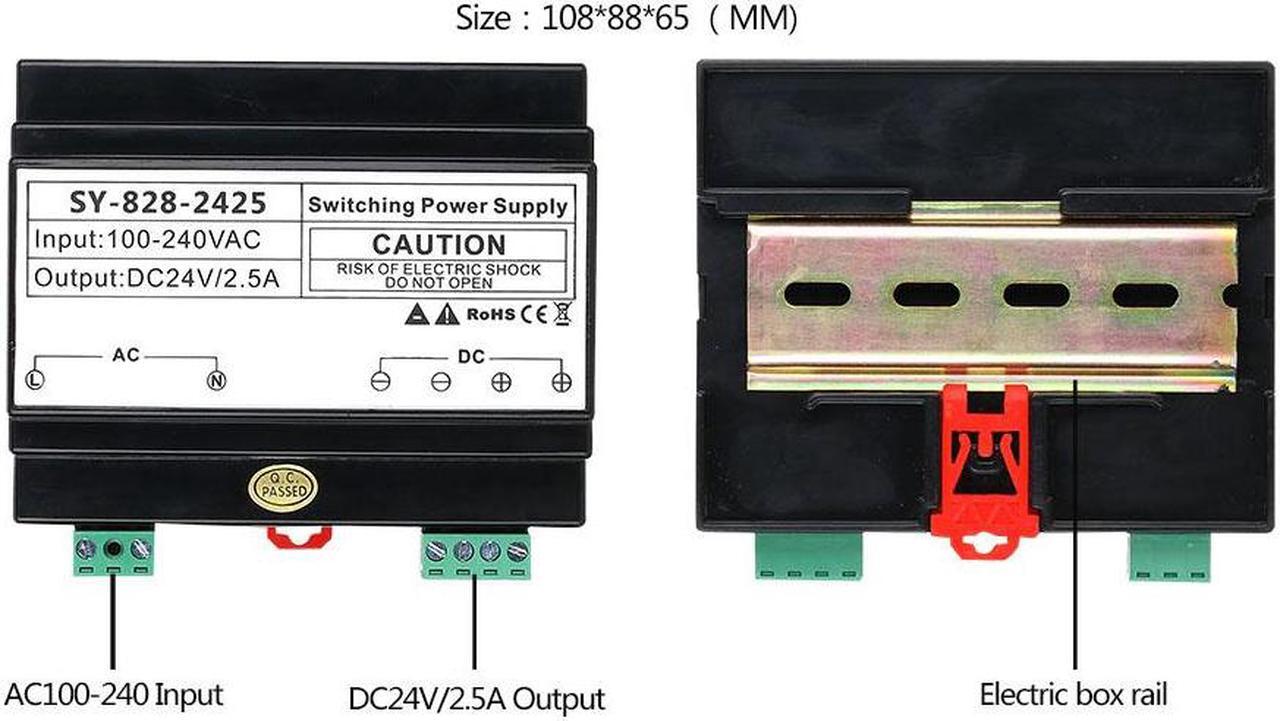

1 * DC24V 2.5A power suppply
5 * IC Cards
1 * Remote Control
1 * 4-core Connection locks terminal wire
2 * 2.54 *2P 2-core Connection terminal wire
1 * 2.0 *2P 2-core Connection terminal wire
1 * Screws
1 * User Manual
