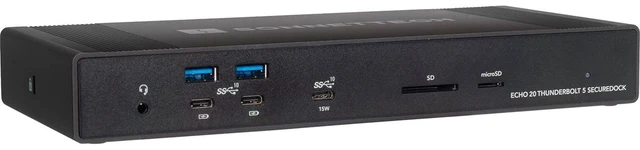

Sonnet Echo 20 20-Port Thunderbolt 5 SecureDock with 140W Power Delivery

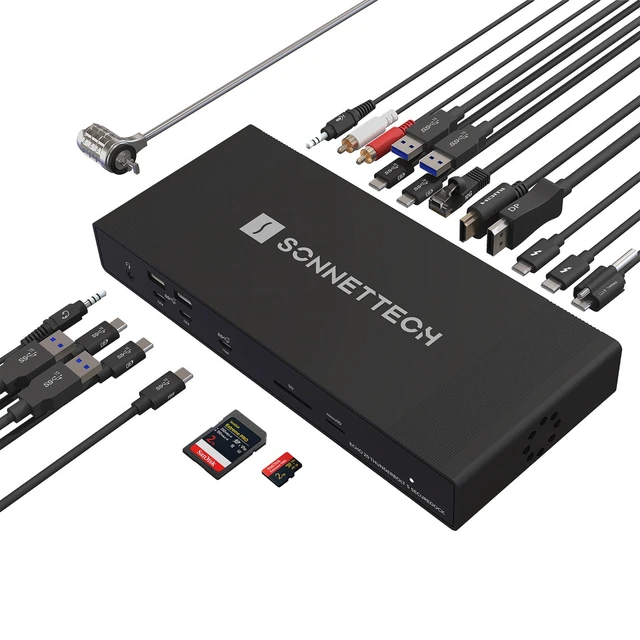

Introducing Echo 20 Thunderbolt 5 SecureDock - a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed - twice as fast as Thunderbolt 4 - and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.Connect Your Peripherals and Power Your Laptop with One Thunderbolt 5 CableEcho 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitors, USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? The SecureDock will power it with 140W of charging power. When it's time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.
Integrated HDMI and DP Display Support
Echo 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K @ 60Hz HDMI monitor or a 4K @ 144Hz DisplayPort monitor.Blazing-fast 10GBASE-T Access
Echo 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) - eliminating the need for a separate adapter.Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.High Resolution Audio Support
Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock's audio I/O jacks with high quality, lossless audio. And, with the SecureDock's fanless, silent design, you'll hear every detail.

Headset Microphone
24-bit/48 kHz and 24-bit/96 kHz sample rates
Ideal for meetings, calls, and chat headsets, and supports professional microphones.Headset Earphones
24-bit/44.1 kHzIdeal for CDs and music libraries, avoiding resampling of 44.1 kHz audio content.24-bit/48 kHzGreat choice for streaming video and meetings. Supports Apple Lossless Audio Codec (ALAC) playback.
24-bit/96 kHzFantastic choice for audiophiles; supports Hi-Res Apple Lossless playback.24-bit/192 kHzIdeal when maximum detail is required; supports high-resolution Apple Lossless playback, preserving the full fidelity and dynamic range of studio-quality audio recordings.
Dedicated Mic Jack
24-bit/96 kHz sample rate
Connect a dedicated microphone for clear voice input during meetings, calls, streaming, and voice recording.
Stereo RCA Jacks
24-bit/96 kHz sample rateProvide consistent line-level audio output, ideal for connecting powered speakers or directly to a receiver, power amplifier, or mixer. Also excellent for self-powered studio monitors and other professional audio equipment. Supports Hi-Res Apple Lossless playback.Dual Downstream Thunderbolt 5 Ports for Simple, Powerful Connectivity

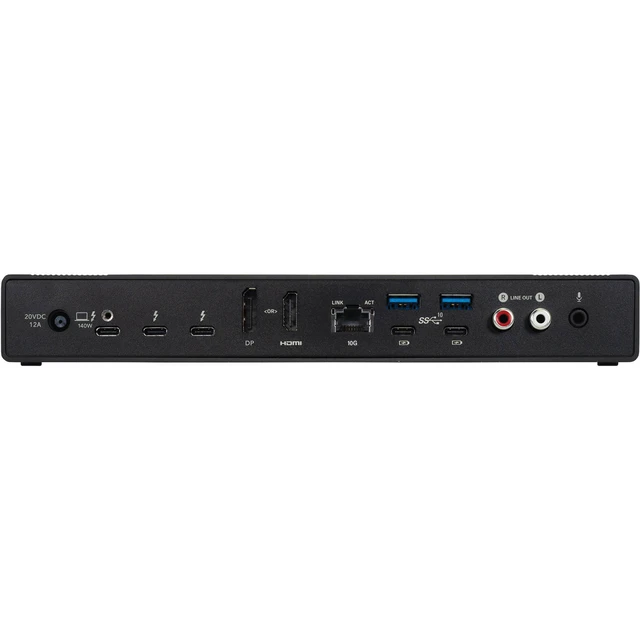

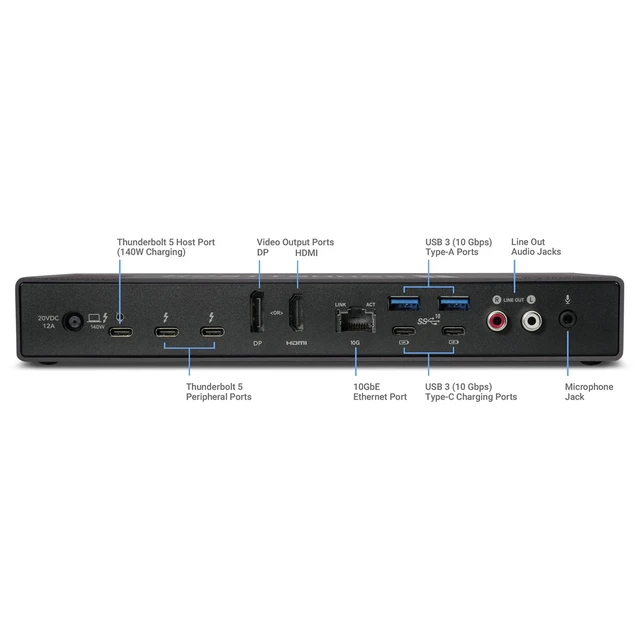

Echo 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer - ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices - as well as USB4 and USB 3 peripherals - and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.All the Ports Plus Fanless, Silent Design
Thunderbolt 5, Display, 10GbE Networking, Audio, and USB Connectivity In One Powerful Dock
