VideoSecu Tilt Flip Under Cabinet TV Mount Bracket for most 15 16 17 19 22 23 24 27 inch LED LCD Monitor Flat Panel Screen Display MB0

Video

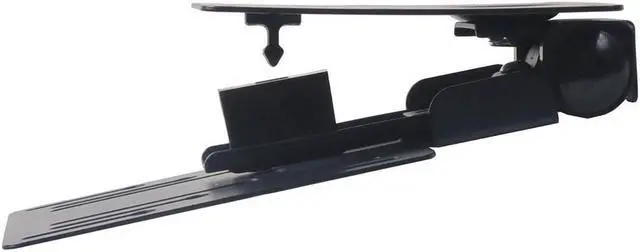

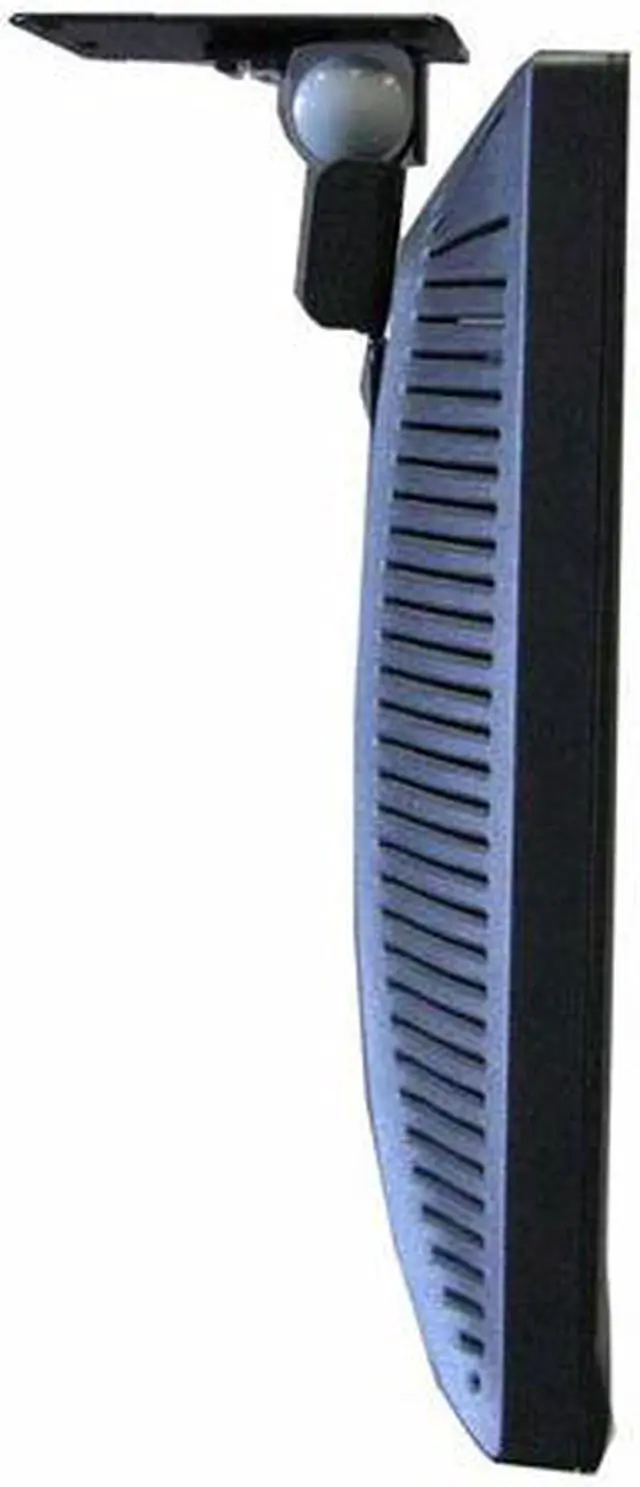

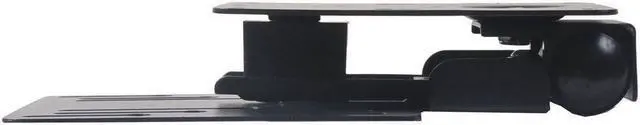

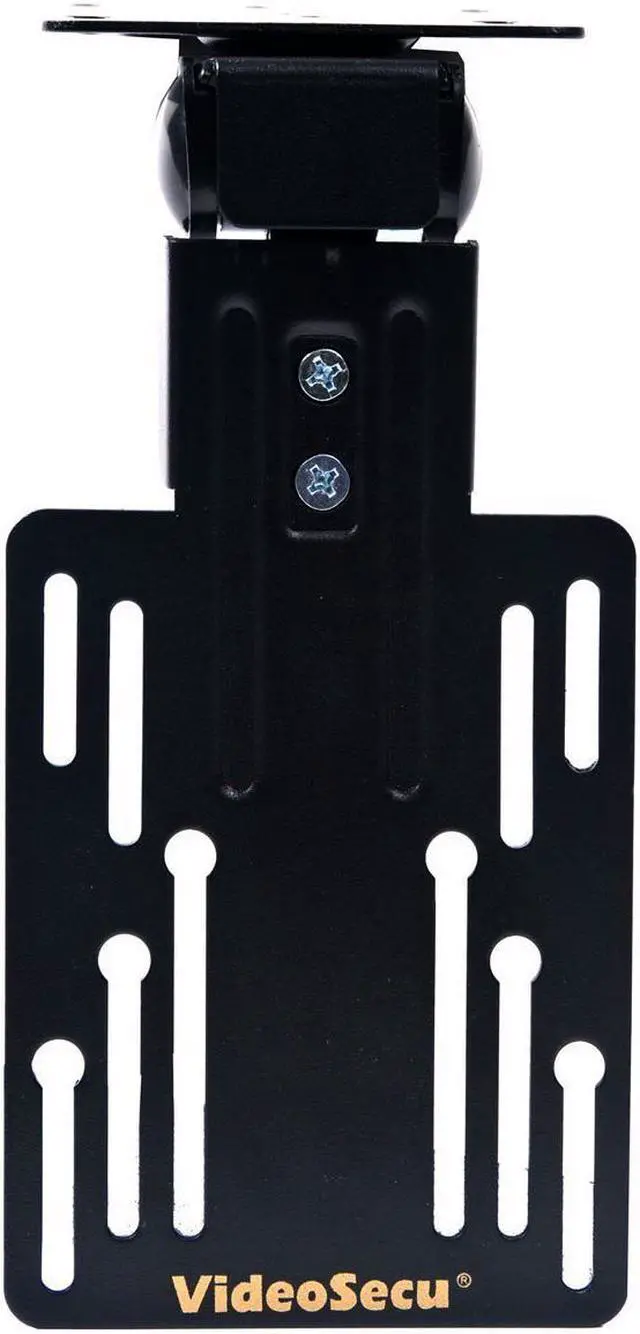

Secu supplies a broad range of high-quality and affordable mounts available in various specifications for your selection. The sturdy mount MLU01B features a space saving design that conveniently tucks your flat panel display under a cabinet when not in use. The black under cabinet flip mount bracket fits most 15 - 24 inch LED LCD monitor flat panel screen TV, some up to 27 inch (Please check VESA and Weight). This mount flips the LED LCD screen down for viewing, and then tucks your screen conveniently under the cabinet for storage. Includes additional cabinet T-nut insert designed to protect and reinforce the cabinet surface when mounting the FLIP.

It features heavy duty structure together with lightness and easy installation. Easy adjustable tilting, swivel for optimal viewing make it absolutely the best choice for you.

Specification:

*Fits most 15" - 24" TV displays, some LED up to 27" (Please check VESA and weight)

*Fits VESA mounting holes: 50x50/ 75x75/ 100x100mm (mounting holes on the rear of screen should be 2 or 3 or 4 inch apart from each other vertically and horizontally)

*Loading capacity up to 18lbs/ 8.2 kg

*Adjustable tilt up 110 degrees

*Swivel 180 degrees (depending on TV model)

Features:

*Solid steel construction in classic black finish

*Space saving: conveniently tucks your flat panel display under a cabinet when not in use

*Includes additional cabinet T-nut insert designed to protect and reinforce the cabinet surface when mounting the FLIP

*Note: monitor in the picture is not included

Package contents:

Under cabinet mount, standard mounting hardware pack included, user manual

Please check whether the bracket is suitable for your screen:

1. Please check the weight of your screen; it must be less than 18lbs.

2. Please look at the back of your screen, find the mounting hole and measure horizontal and vertical distance, if the holes pattern is one of the following data, then the bracket will work perfect for you. 50x50mm (2"x2"), 75x75mm (3x3"), 100x100mm (4"x4").

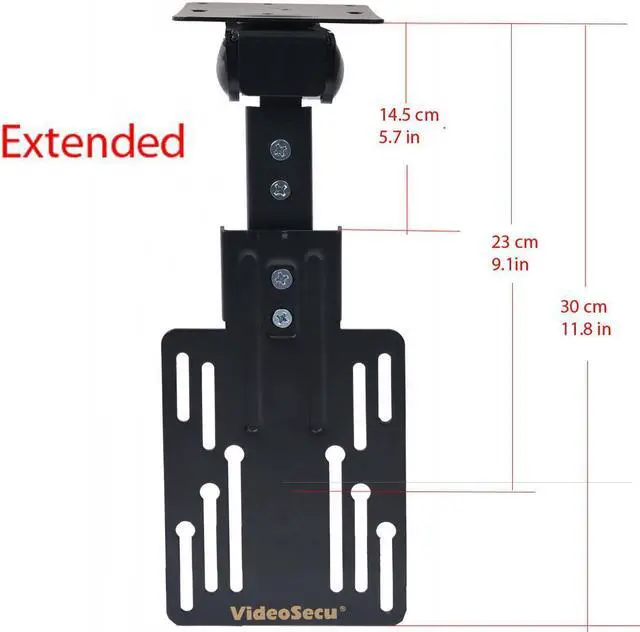

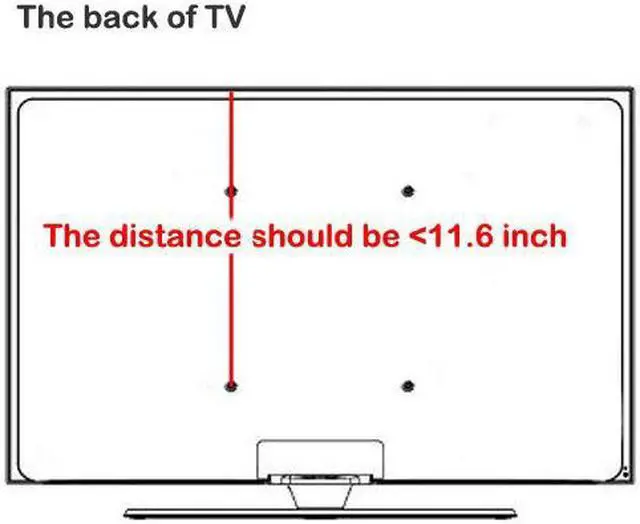

3. Please measure the distance from the lower mounting hole to the top of the TV (as the picture shown), it must be less than 11.6 inch and otherwise the TV will touch the cabinet before set to vertical.
