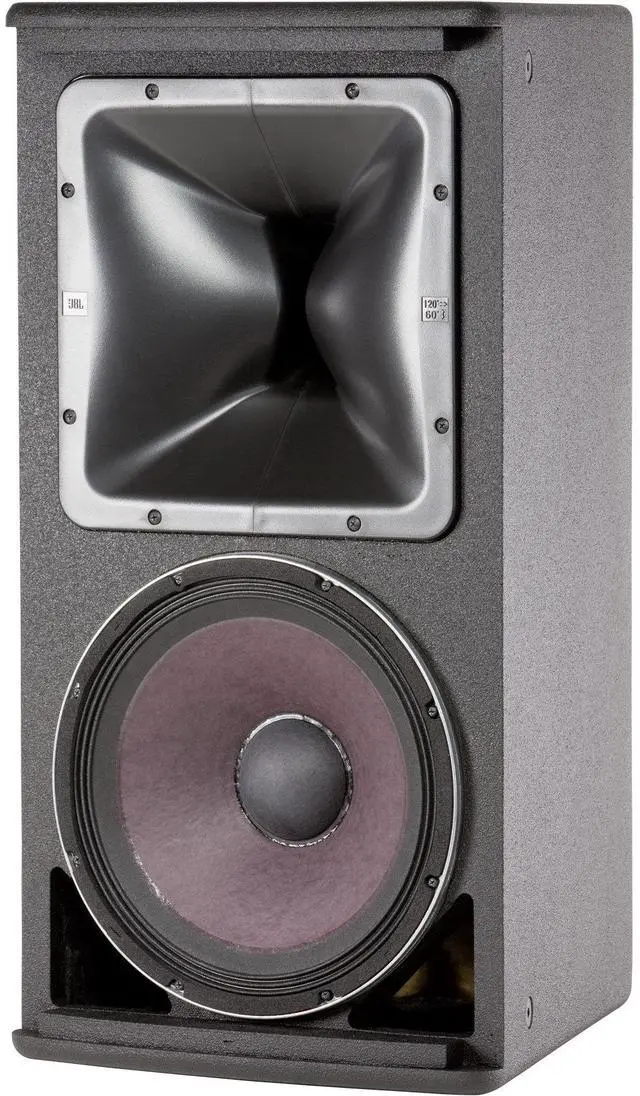

The AM7215/26 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Wellcontrolled off-axis response enhances arrayability.
Features
* Product Type: Speaker
* Impedance: 8 Ohm
* Sensitivity: 96 dB
* Product Type: Speaker
* Impedance: 8 Ohm
* Sensitivity: 96 dB
* Limited Warranty: 5 Year
* Weight (Approximate): 59.97 lb
* Color: White
* Driver Type: 15"
* Driver Type: 1.50"
* Color: White
* Driver Type: 15" Woofer
* Driver Type: 1.50" Tweeter
* Product Model: AM7215/26
* Product Name: AM7215/26 High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn
* Brand Name: JBL Professional
* Brand Name: JBL Professional
* Height: 30.8"
* Width: 16.5"
* Depth: 19.8"
* Crossover Type: 2-way
* Minimum Frequency Response: 40 Hz
* Maximum Frequency Response: 18 kHz
* RMS Output Power: 600 W
* PMPO Output Power: 2400 W
* Crossover Type: 2-way
* Minimum Frequency Response: 40 Hz
* Maximum Frequency Response: 18 kHz
* RMS Output Power: 600 W
* PMPO Output Power: 2400 W
* Product Type: Speaker
* Impedance: 8 Ohm
* Sensitivity: 96 dB
* Color: White
* Driver Type: 15"
* Driver Type: 1.50"
* Brand Name: JBL Professional
* Crossover Type: 2-way
* Minimum Frequency Response: 40 Hz
* Maximum Frequency Response: 18 kHz
* RMS Output Power: 600 W
* PMPO Output Power: 2400 W
