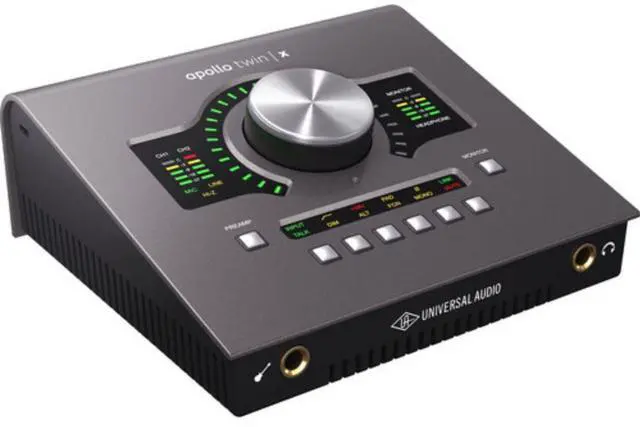

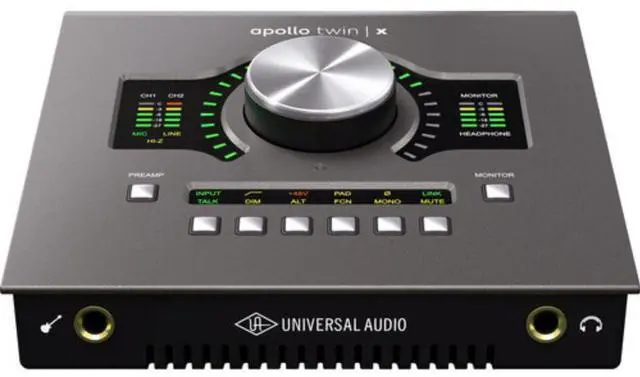

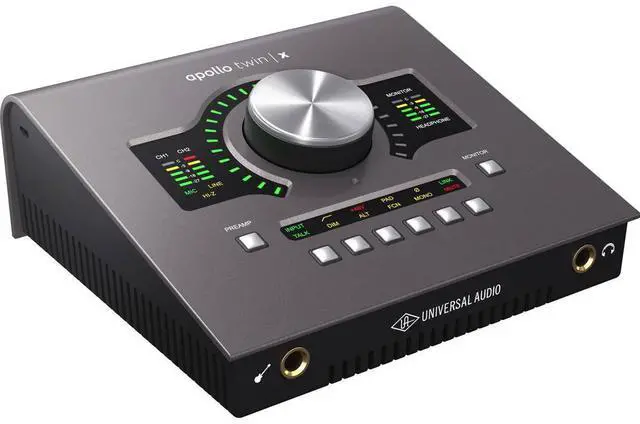

Universal Audio Apollo Twin X USB DUO Heritage Edition USB-C Audio Interface with UAD DSP (Windows Only)

Poised to be the center of a Windows-based home studio or mobile rig, the Universal Audio Apollo Twin X USB DUO Heritage Edition is a desktop 10x6 USB-C audio interface that gives musicians and producers elite-class A/D and D/A conversion with the tone, feel, and flow of analog recording.



Offering DUO Core UAD plug-in processing, Unison-enabled mic preamps, and the Heritage Edition suite of 25 award-winning UAD plug-insfeaturing Collections from Teletronix, Pultec, UA, and morethe Apollo Twin X USB DUO lets you record your vocals, acoustic instruments, and electric guitars in real time through classic mic preamp and channel-strip emulations from Neve, API, Manley, Avalon, and morewith near-zero latency.



The Power of Apollo Twin X USB DUO

• Track, overdub, and mix with high-resolution AD/DA conversion and DSP-powered plug-ins.


• Onboard UAD-2 DUO Core Processing for tracking in real time through included UAD Heritage Edition plug-ins like the Teletronix LA-2A and 1176 vintage compressors, Pultec EQs, iconic UA 610 tube preamp, tape machines, and guitar ampswith near-zero latency, regardless of audio buffer size.


• Proprietary Unison technology offers the tone of sought-after classic-tube and transformer-based preamps from Neve, API, Manley, Avalon, and more, plus guitar amps, and stompboxes.


• USB-C 3.0 connectivity for Windows-based computers.


• Runs UAD Powered Plug-Ins via VST, Audio Units, and AAX in all major DAWs.


• Uncompromising analog design, superior components, and premium build quality in a convenient desktop form factor.


• Reliable AC powering (external power supply included).


• Free, industry-leading technical supporton the phone and onlinefrom knowledgeable audio engineers.

Elite-Class A/D and D/A Conversion for Crystal-Clear Sound

• Furnished with elite-class, next-generation 24-bit / 192 kHz conversion akin to the popular Apollo X rackmount interfaces, the Apollo Twin X USB DUO gives you a spacious, organic sound that easily rivals dedicated high-end converterswith low distortion (-117 dB) and immense dynamic range (127 dB).

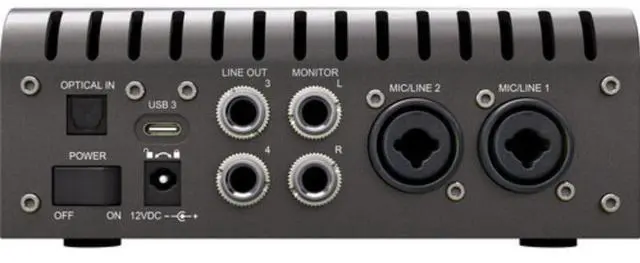

Versatile I/O for the Studio

• The 10x6 audio interface features two Unison-enabled microphone preamps (via XLR-1/4" combo mic/line inputs) for precise UAD emulations of classic analog preampsimpart vintage character of your choosing on microphone and instrument recordings while bypassing the unpredictable nature of old equipment.


• One front-panel Unison-enabled 1/4" Hi-Z input for direct connection of a guitar, bass, or keyboard


• Two 1/4" digitally controlled analog monitor outputs for full resolution at all listening levels and one 1/4" headphone outputeach with dedicated level control


• Two additional 1/4" line-level outputs, may be used for alternate monitor outputs


• Add up to eight extra input channels via one TOSLINK optical ADAT port (may alternatively be used for stereo S/PDIF)

Pro-Level Monitor Functionality

• Flexible monitor functionality includes monitor remote functions and Mono, Mute, DIM, and ALT monitor controls


• Built-in talkback mic for communication with studio talent and recording slate cues

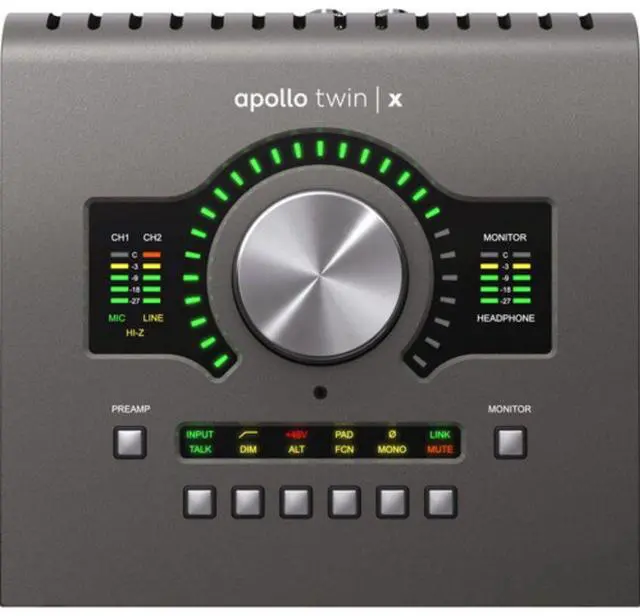

• Comprehensive front-panel metering and fast, intuitive controls, no menu-diving required

Get the Pro Sounds of Analog Hardware, Right on Your Desktop

Out of the box, Apollo Twin X USB DUO's 25 included plug-ins give you album-ready tones in realtime with professional tools.

• 1176 Classic Limiter Collection (x3), 1176LN Legacy Compressor/Limiter, 1176SE Legacy Compressor/Limiter


• 610 Tube Preamp & EQ Collection (x2)


• Ampeg SVT-VR Classic Bass Amplifier


• Pultec Passive EQ Collection (x3), Pultec EQP-1A Legacy, Pultec Pro Legacy


• Pure Plate Reverb, RealVerb Pro


• Precision Channel Strip, Precision Reflection Engine


• Precision Delay Modulation, Precision Delay Modulation L


• Softube Marshall Plexi Classic Guitar Amp, RAW Distortion Pedal


• Teletronix LA-2A Classic Leveler Collection (x3), Teletronix LA-2A Legacy Limiter

Box Contains

Universal Audio Apollo Twin X USB DUO Heritage Edition USB-C Audio Interface with UAD DSP (Windows Only)


• 1 x External Power Supply
