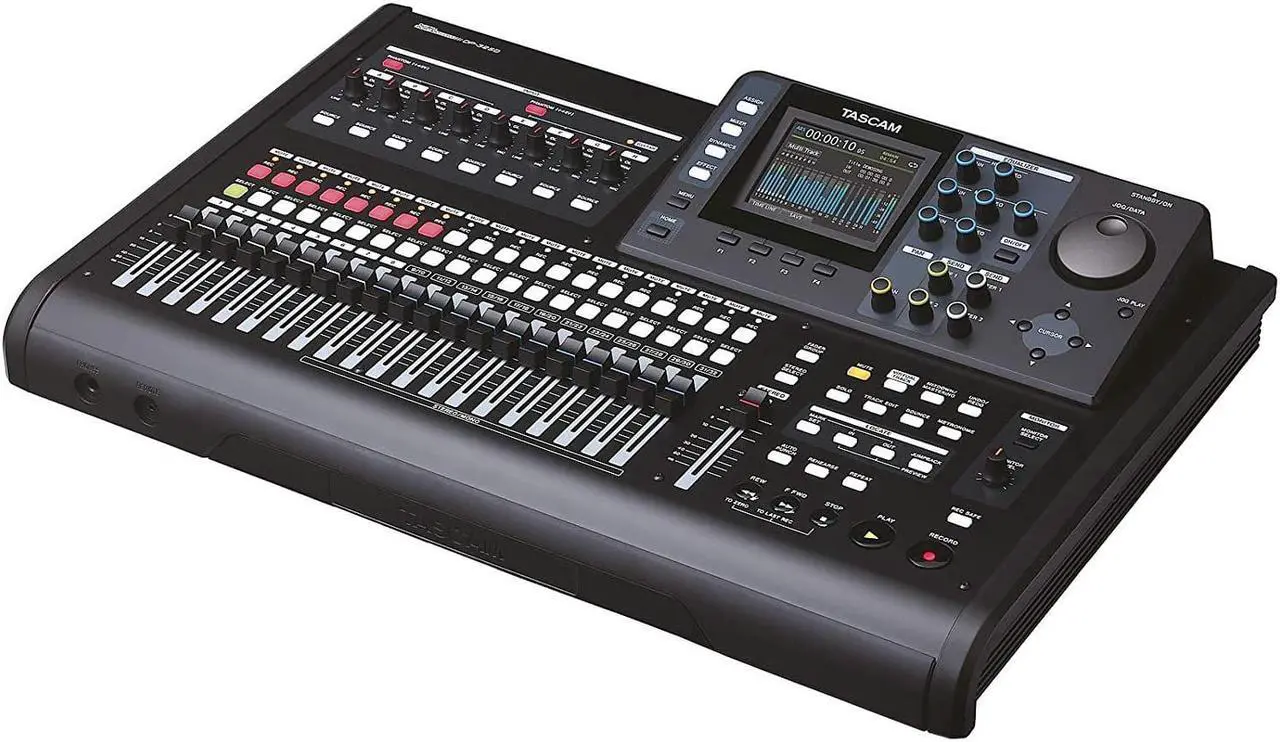

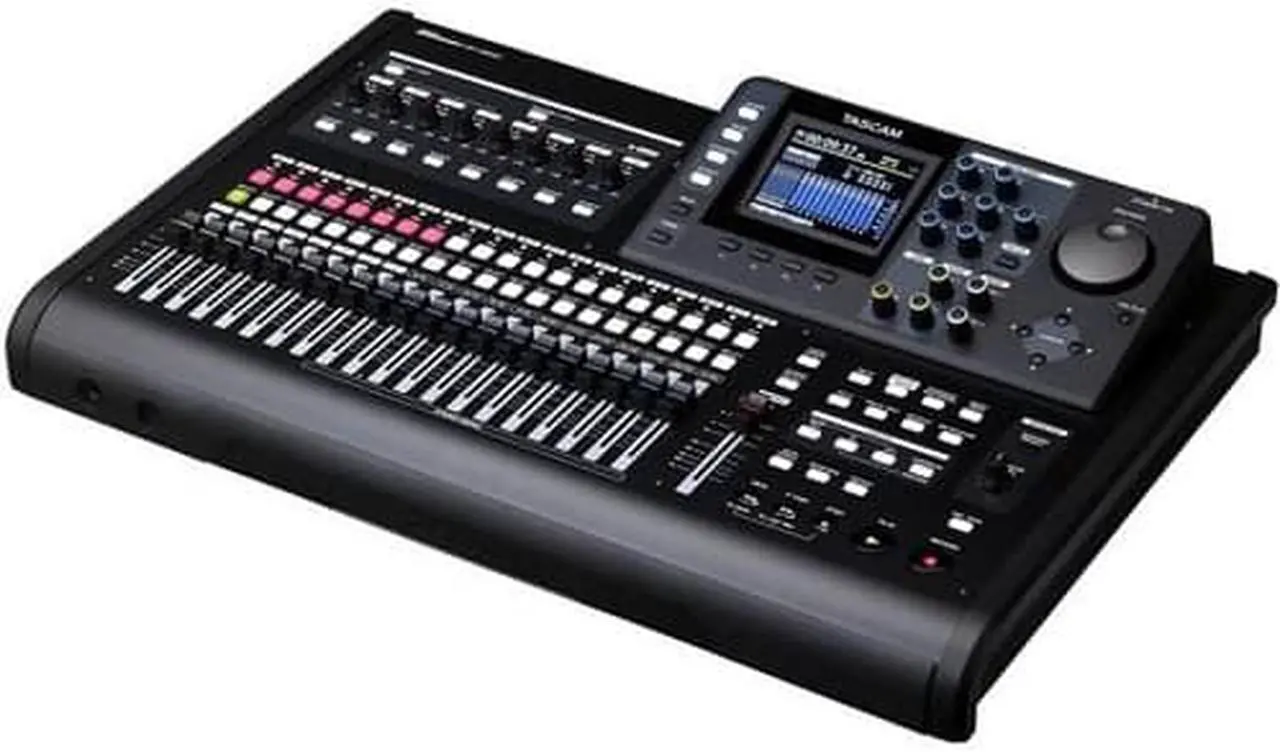

TASCAM's DP-32SD Digital Port a studio records an unmatched 32 tracks to solid-state media. Up to eight tracks can be recorded at a time through its combination XLR and 1/4" combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input. A color LCD and channel strip knobs make mixing fast and creative. The included 4GB SD card can be replaced with up to 32GB SCHC media or swapped with other cards between projects. With its great sound, powerful features and easy operation, the DP-32SD is TASCAM's biggest Port a studio yet.
Simultaneous 32 track playback
8 mono tracks + 12 mono/stereo selectable tracks
Mounted TMSS (TASCAM Multi Stage Sampling rate converter) provides high-quality sampling rate conversion
Integrated 40-input mixer to mixdown the 32 playback tracks with the 8 inputs or for bouncing
Simultaneous 8 track recording
16 or 24 bit, 44.1 or 48 kHz recording
8 XLR/TRS combo connectors
Phantom power supply for all inputs

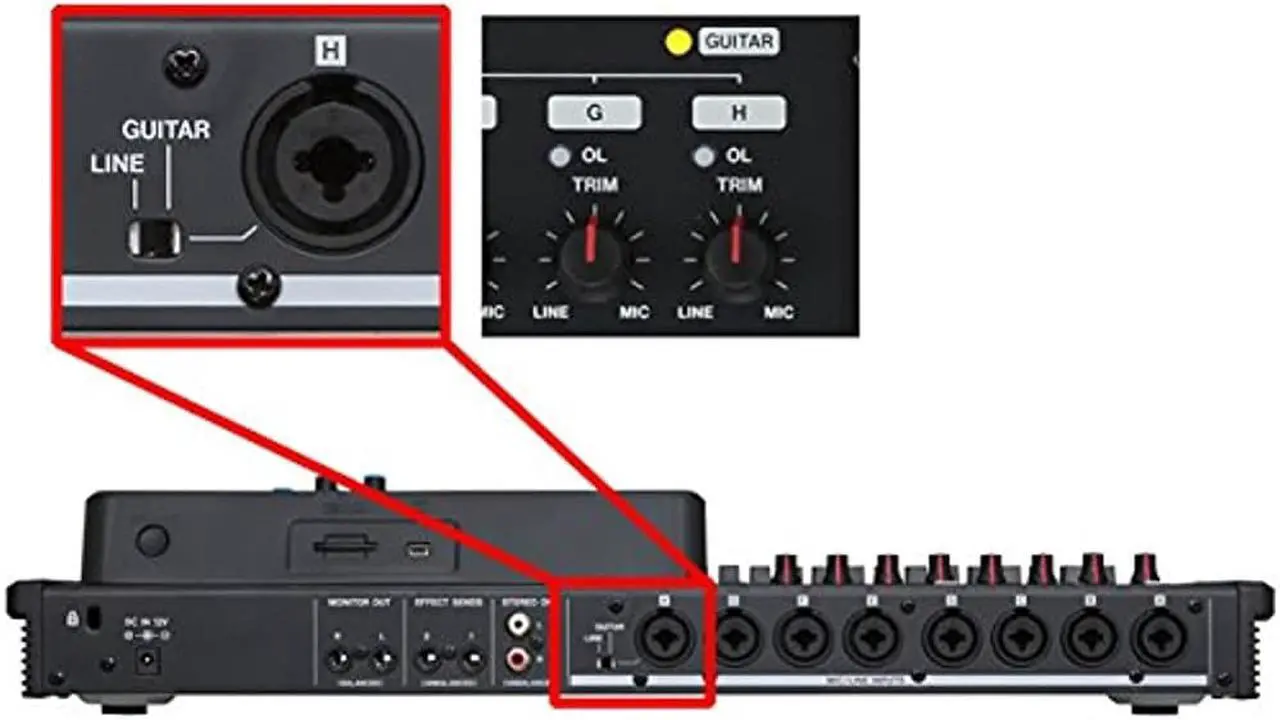

High-impedance input available (INPUT-H)

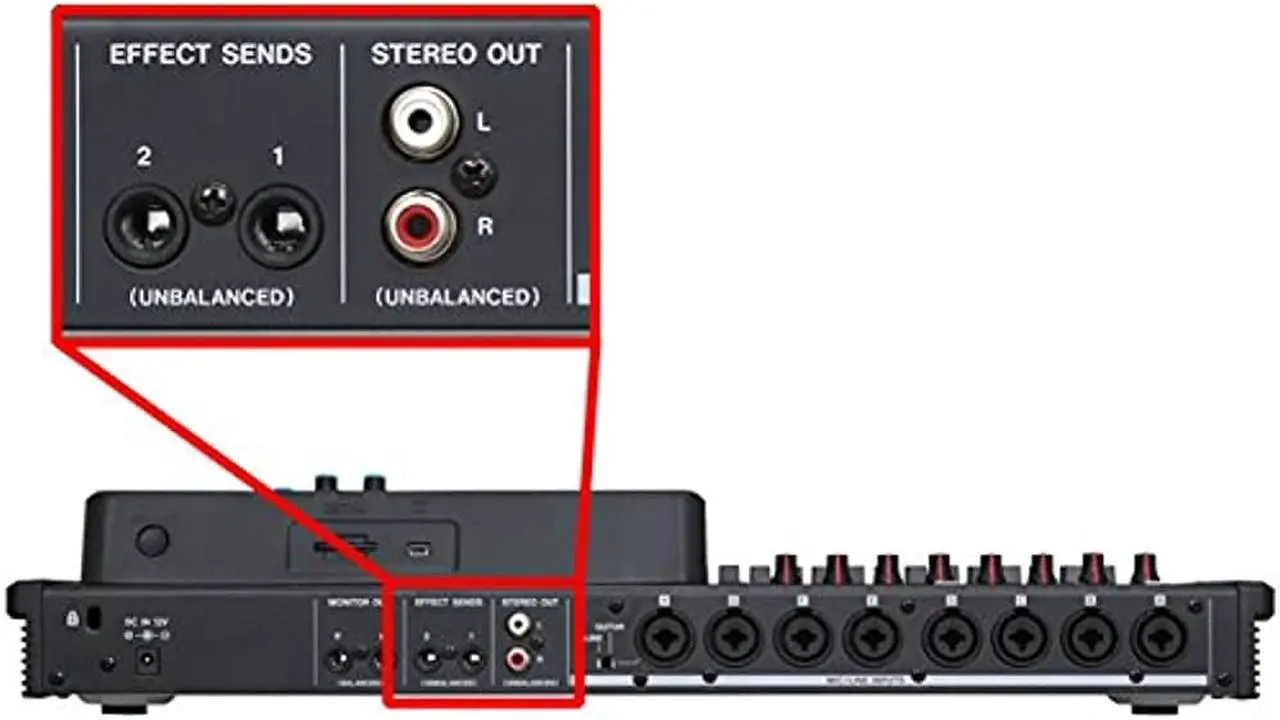

Stereo RCA pin-jack output
2 effect send outputs (1/4" TS jack)
70mW/ch headphone amplifier
Peak-hold function at a level meter of the LCD
Sub-frame editing
Remote connector for optional RC-3F footswitch
INPUT A-H and each track are equipped with 3-band EQ
Automatic punch in/out
Various edit functions(COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
Undo and Redo function with Undo history
8 dynamics effects
Guitar effects
Mix-down effects
Mastering Effects
Track bounce function
Virtual tracks(8 virtual track per one track)
Locate mark up to 99 at one song
File transferring via USB2.0
Chromatic tuner
Metronome
Dedicated AC adapter included(TASCAM PS-1225L)
8 mono and 12 mono/stereo selectable tracks
21 faders (19 track-faders and one master fader)
Dedicated DP-32 Recording
Twelve Mono and Twelve Stereo Tracks
The DP-32 has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesizer or set the track to MONO when recording guitar or vocal. Not only that, you can create ideal settings for each track. (set #9 to #12 STEREO, then set #13 to #22 MONO) If all tracks are set to MONO the DP-32 becomes a 20-track multi track recorder.
The DP-32SD provides a creative musical experience

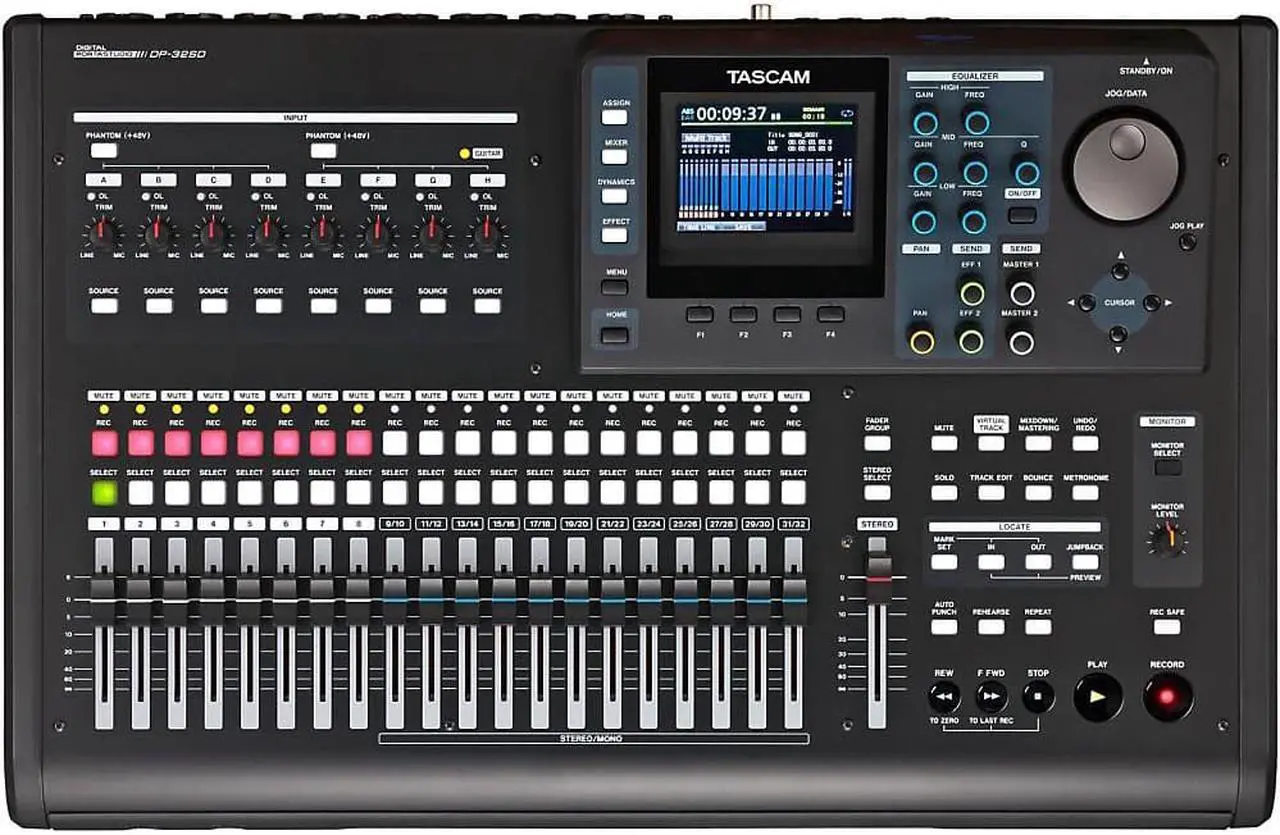

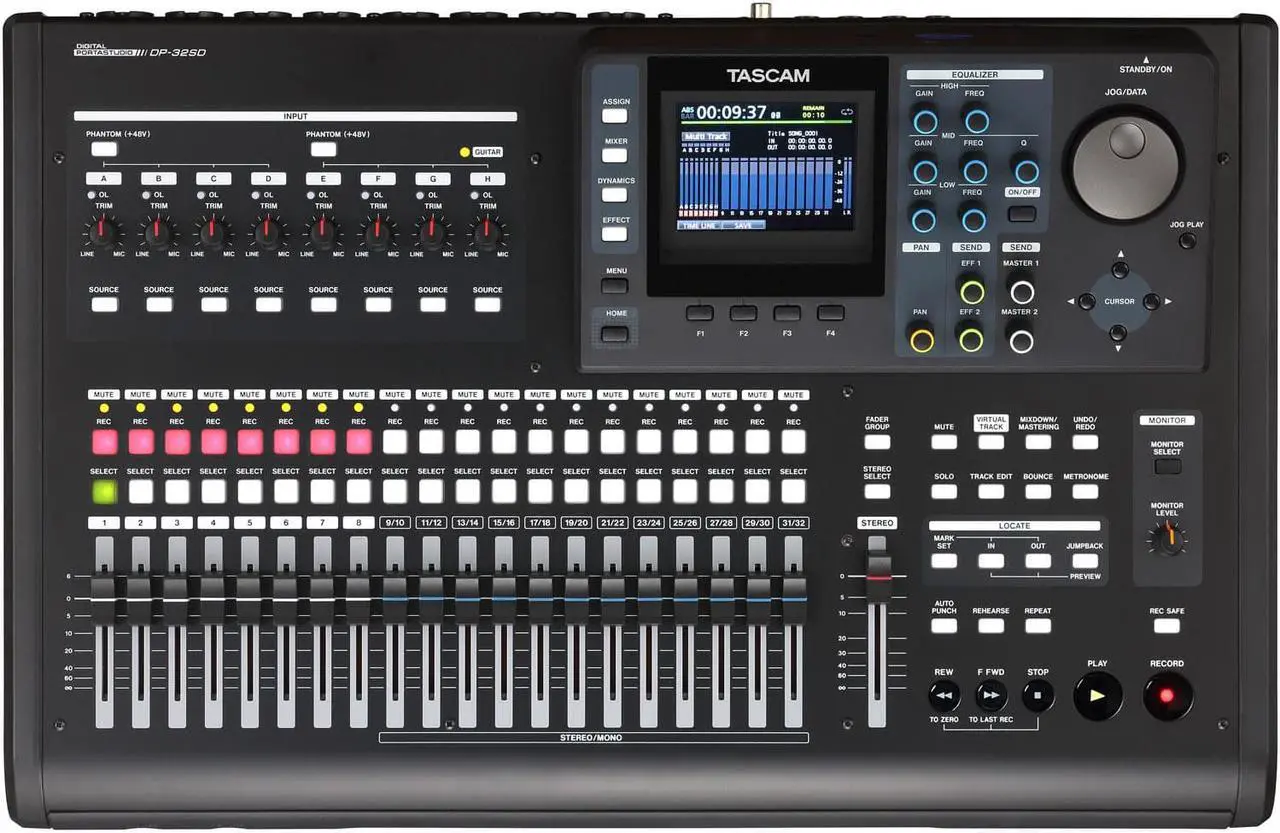

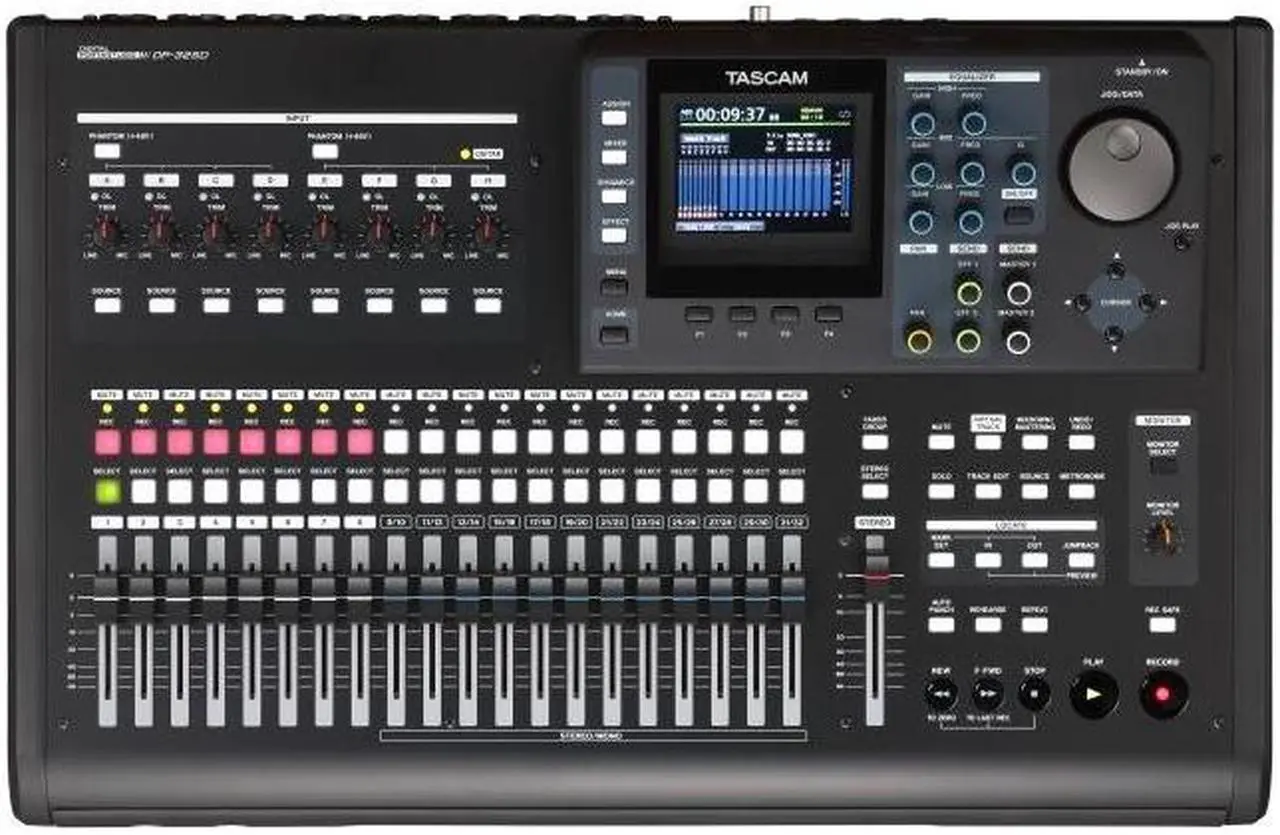

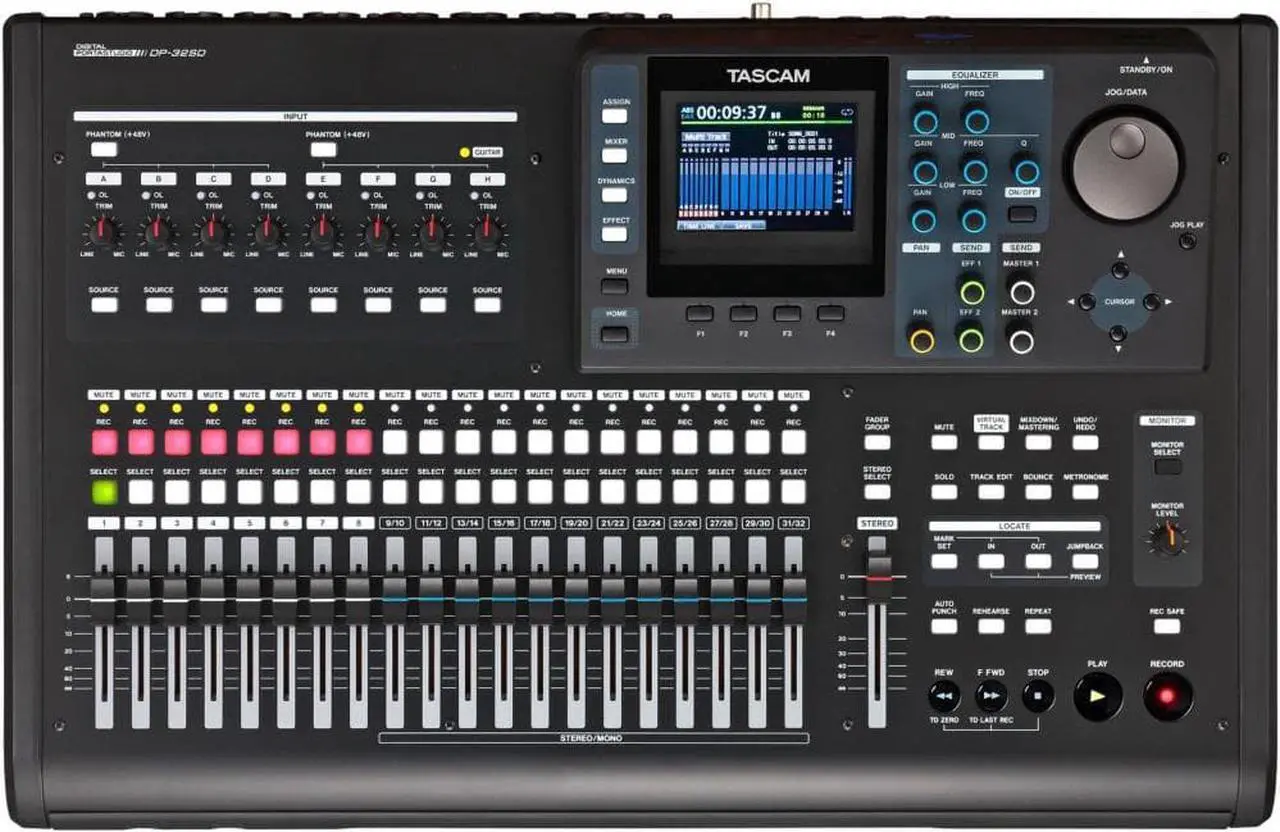

21 faders eliminates layer structuring
The DP-32, even with the high number of tracks, is one of the easiest multi-track recorders in the market to use. The DP-32SD has 20 track-faders and one master fader. You can control any track with ease.
The 3.5" full-color LCD and the self-illuminated buttons increase visibility
The DP-32SD has a 3.5" LCD screen and select self-illuminated buttons, making it easy to view your entire creative process. Some of the illuminated buttons include (SOURCE, SELECT, REC, MUTE).
12 rotary knobs linked to the LCD to help increase easy operation
The DP-24/32 have similarly employed rotary knobs to control qualities such as EQ, Effect Send and other related features.
Utilizing SD/SDHC media ensures confident recording, free from shock due to loud sounds
The DP-32SD uses SD/SDHC media. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-32SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB.

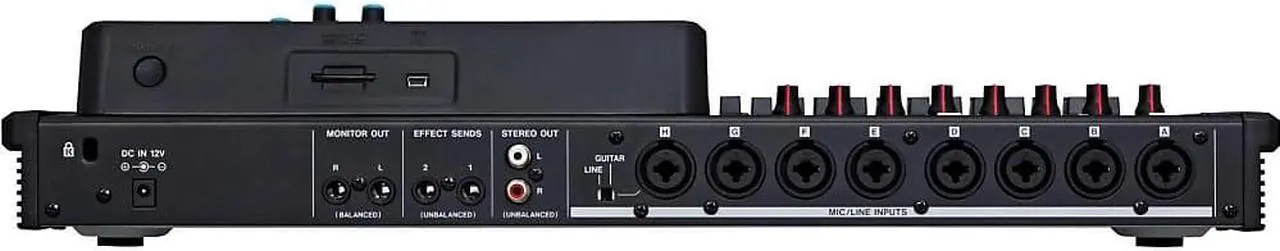

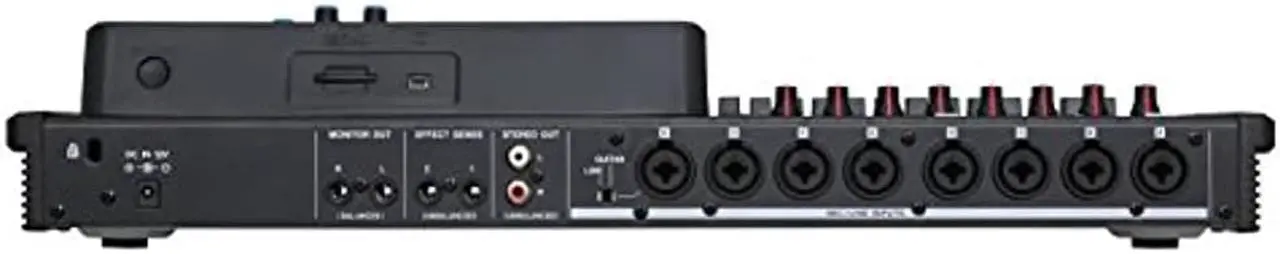

8 XLR/TRS inputs, 8 channel recording, 32 tracks playback
The DP-32SD has 8 XLR-TRS combo inputs. You can record up to eight sources at one time.
INPUT A-H and each track are equipped with 3-band EQ
