WallCAT 8 - Analog, AES3, DMX and intercom 4 Channel Wall Plate NO Solder Required (White)

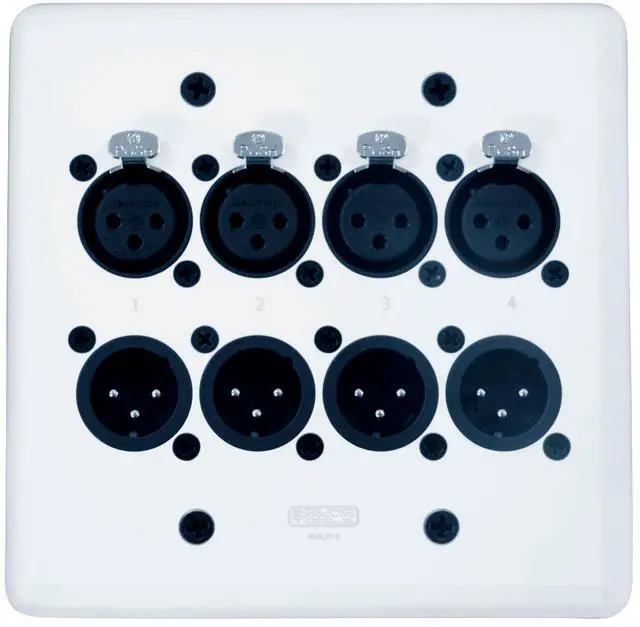

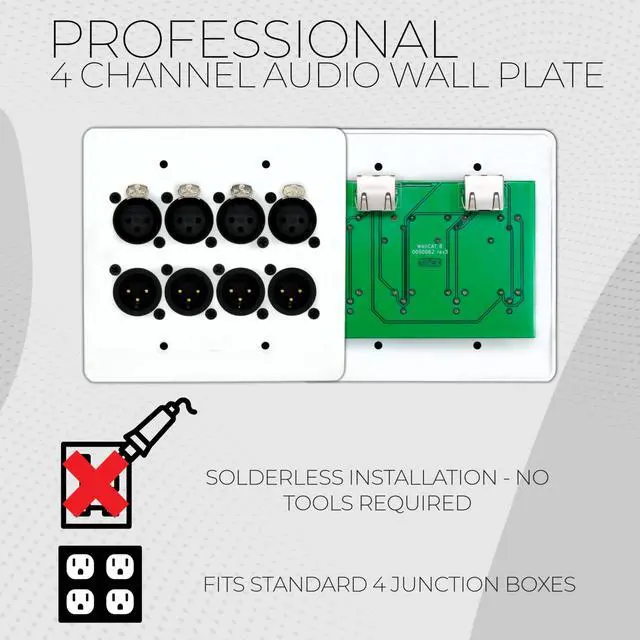

This 4-channel XLR wall plate comes with all necessary connections pre-installed and clearly labeled, including 8 Neutrik XLR connectors (4 male and 4 female wired in parallel) on the front and 2 Amphenol RJ45 connections on the back. It is ideal for home studios, music venues, concert halls, and office buildings. Designed for easy installation, these 2-gang plates fit standard 4" US electrical junction boxes and require no soldering. You can send audio and data between rooms using installed shielded RJ45 cable. The modular design makes it suitable for a wide range of applications, compatible with Analog, AES3, DMX, and intercom signals, and supports phantom power when used with shielded CAT5e or better cable. Constructed for durability, it features a professional brushed aluminum finish in black or painted white, along with included stainless steel mounting screws that resist rust and general wear-and-tear.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Additional Information
First Listed on Newegg	June 13, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
