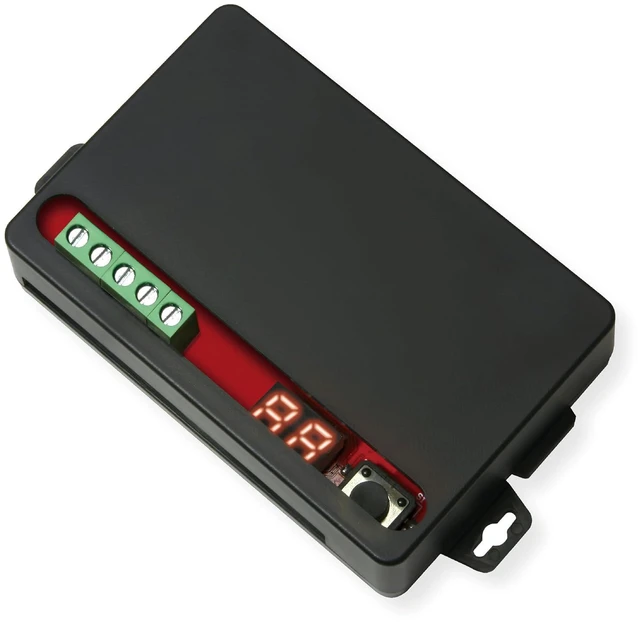

Seco-Larm SK-910RD1 RF Receiver, 1-Channel; 10-24 VAC/VDC, Range up to 500 feet or up to 1,000 feet with Optional Extended Range Antenna; Pushbutton Programming; Replaced SK-910RBQ

Seco-Larm SK-910RD1 RF Receiver, 1-Channel; 10-24 VAC/VDC, Range up to 500 feet or up to 1, 000 feet with Optional Extended Range Antenna; Pushbutton Programming; Replaced SK-910RBQ ENFORCER 1-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more
Key Features: - Flexible 10~24 VAC/VDC operating voltage - Range up to 500ft (150m) - Independently programmable channels and up to 15 transmitter button codes per channel - Pushbutton programming, no jumpers to cut or switches to set - 5 Output modes/channeltimed pulse ( 0.5 -99sec), timed pulse (1-99min), toggle, latch, and follow (validity) - Compatible with all ENFORCER SK-series transmitters of the receiver's base frequency

Specifications

: -
Operating frequency: 315MHz -
Memory capacity: 15 per channel -
Operating voltage: 10-24 VAC/VDC -
Operating current:
Standby: 16mA@12VDC, 12mA@24VDC;
Active: 60mA@12VDC, 50mA@24VDC (both per channel) -
Relay output modes:
Type: Independent, sequence, access control;
Modes:. 05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity) -
Relay contacts:
Number: 1;
Rating: Form C 10A@14VDC -
Connectors: Screw terminals, +, -, with NO/NC/COM per relay -
Digital display: 2-digit, 7-segment LED -
Overall Dimensions: 4.21 x 0.90 x 2.36 inches
