ProX XTP-GS2023 | LED Video Panel Truss Ground Support System 20'W x 23'H Outdoor w/ Hoist - OEM

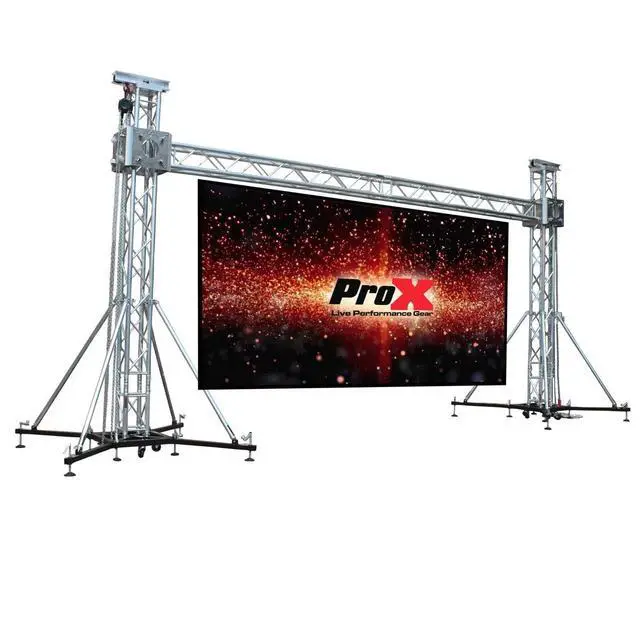

The ProX XTP-GS2023 LED Panel Support System package is 20'W x 23'H and constructed with our heavy-duty Aluminum XT truss combined with our modular ground support towers as well as the GSBPACK3 Lift System. (LED WALL NOT INCLUDED)

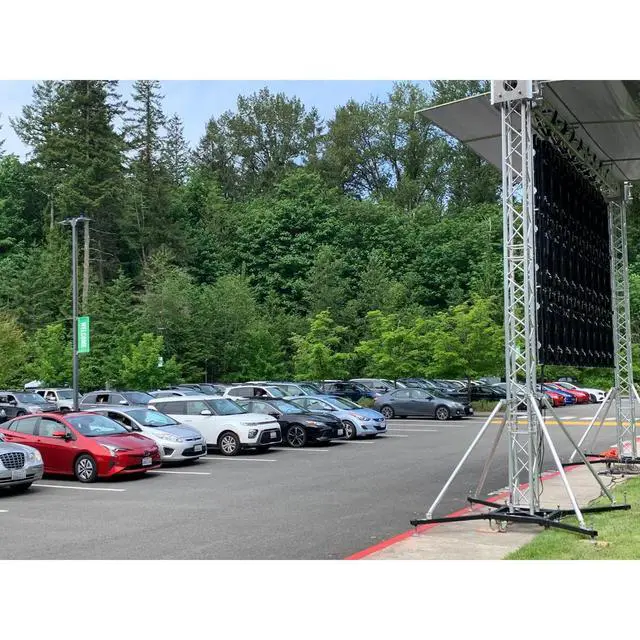

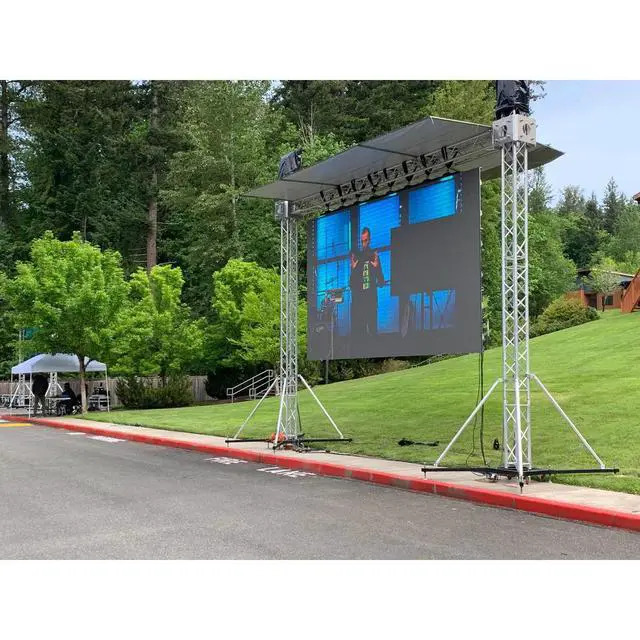

This Indoor / outdoor Truss Ground Support System is designed to fly LED Screen Display Panel Video Wall

The ProX XT-SQ Series Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
Tolerance Free Standard Conical connector
Main tube wall thickness of .08in


Includes:

2 XTP-GSBPACK3

6 XT-SQ984 9.84ft (3.00m) Square Truss Segment With Connecting Hardware

1 XT-MCH1TX2-30FT Sets of 2 1T Manual Chain Stage Hoist with 30ft Chain

Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers F34 trussing products.

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

Exterior Dimensions & Weight
XT-GSOUTS3 (8): 64.00"H x 2.00"W x 37.50"L - Weight: 29.00 lbs
XT-SQ328 (2): 39.36"H x 11.42"W x 11.42"L - Weight: 19.00 lbs
XT-TOPCM (2): 11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs
XT-BLOCK-MK2 (2): 18.50"H x 22.50"W x 22.50"L - Weight: 77.30 lbs
XT-SQ984 (6): 118.08"H x 12.00"W x 12.00"L - Weight: 42.00 lbs

Shipping Dimensions & Weight
Box 1 of 8: XT-GSOUTS3 (8 boxes) 6.00"H x 8.00"W x 64.00"L - Shipping Weight: 34.00 lbs
Box 2 of 8: XT-SQ328 (2 boxes) 41.50"H x 12.50"W x 12.50"L - Shipping Weight: 21.00 lbs
Box 3 of 8: XT-GSB MK3 (2 boxes) 9.00"H x 29.00"W x 29.00"L - Shipping Weight: 70.00 lbs
Box 4 of 8: XT-HINGE (8 boxes) 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs
Box 5 of 8: XT-TOPCM (2 boxes) 12.00"H x 10.00"W x 25.
