$369.99
Meet Your Seller
Galaxy Audio DHX Wireless Handheld Mic System,DHXR Receiver & HH65SC Transmitter
- Available Frequencies:120
- Transmitter Output Level:20 mW
- Band:UHF
- Operating Range:Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference
- Audio Frequency Response:(+/-3 dB) 60 Hz - 16 kHz
- Total Harmonic Distortion:(+/-30 kHz deviation, 1 kHz tone): <1%
- Dynamic Range:>90 dB A-weighted
- Operating Temperature Range:14 to 122 deg. F (-10 to 50 deg. C) battery characteristics may limit this range
- Audio O/P(+/-30kHz deviation, 1kHz tone):XLR Connector (into 600 Ohms load) -12 dBV1/4" Connector (into 3 k Ohms load) -18 dBV

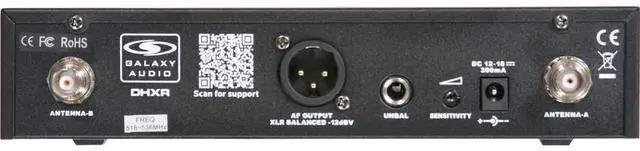

- Output Connections:1x Male XLR Balanced1x 1/4" Unbalanced
- Output Impedance:XLR connector 200 Ohms1/4" connector 1 k Ohms
- XLR Output:Impedance balancedPin 1: Ground (cable shield) Pin 2: Audio +Pin 3: No Audio -
- Sensitivity:-93 dBm for 30 dB
- Image Rejection:>90 dB
- Casing:Metal Chassis EIA STANDARD 1/2 U
- Power Requirements:12-18 V DC at 1000 mA, supplied by external power supply
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

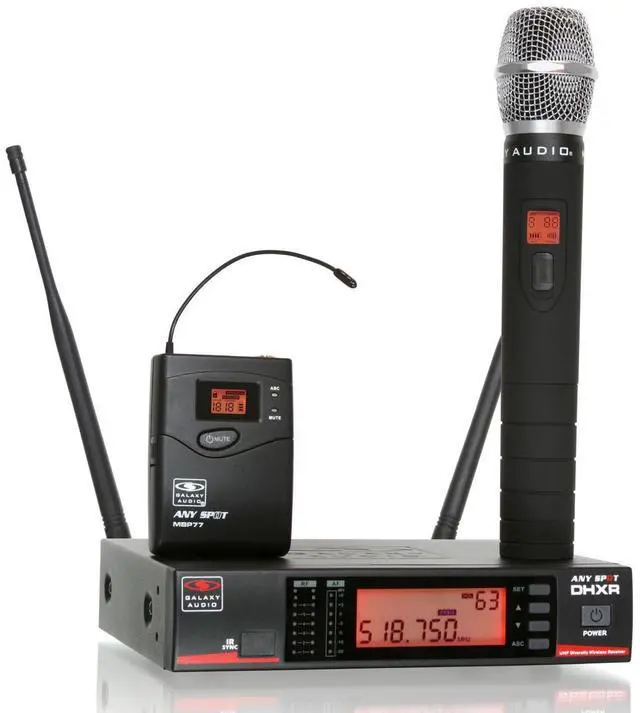

The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use and then IR Sync the frequency to a transmitter. The large LCD display shows channel number, frequency, lock mode and volume output. The DHX receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The DHX works great with any 77 or 65 Series transmitter.
300' Range
Auto Scan
120 Selectable UHF Frequencies
Diversity Antennas

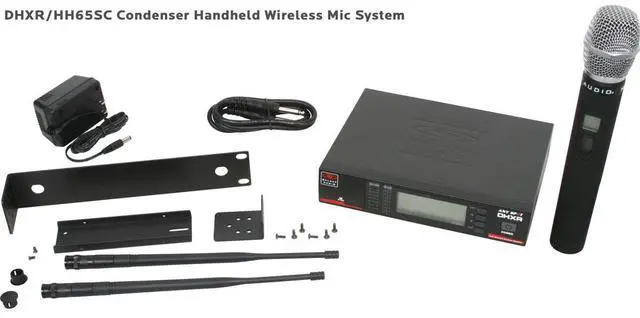

Single/Dual Rack Kit Included
- DHXR Receiver -

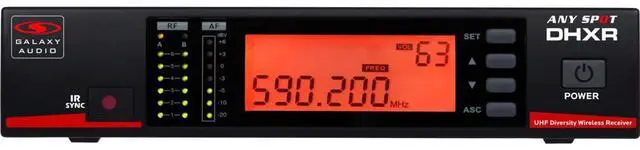

LCD Display
IR Sync Receiver to Transmitter
Frequency with Channel and Group Selector
AF/RF Indicators
Tone-key Squelch
Squelch Adjustment
XLR/1/4" Output
Detachable BNC Antennas
Metal Chassis
- HH65SC Condenser Handheld Microphone Transmitter -
Super Cardioid Condenser Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System.
LCD Display (4 Bar Battery Life Indicator, Group and Channel Indicator)
IR Sync Transmitter to Receiver
10 mW
Gain Adjustment
Works with WMC-CGR Charger Station
Operated on 2 AA Batteries (up to 6 hours Alkaline)
300' Range
Auto Scan
120 Selectable UHF Frequencies
Diversity Antennas
Single/Dual Rack Kit Included
- DHXR Receiver -
LCD Display
IR Sync Receiver to Transmitter
Frequency with Channel and Group Selector
AF/RF Indicators
Tone-key Squelch
Squelch Adjustment
XLR/1/4" Output
Detachable BNC Antennas
Metal Chassis
- HH65SC Condenser Handheld Microphone Transmitter -
Super Cardioid Condenser Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System.
LCD Display (4 Bar Battery Life Indicator, Group and Channel Indicator)
IR Sync Transmitter to Receiver
10 mW
Gain Adjustment
Works with WMC-CGR Charger Station
Operated on 2 AA Batteries (up to 6 hours Alkaline)
