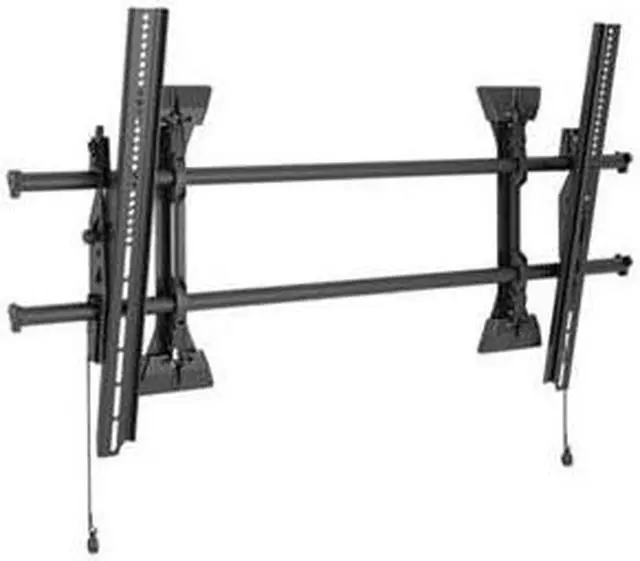

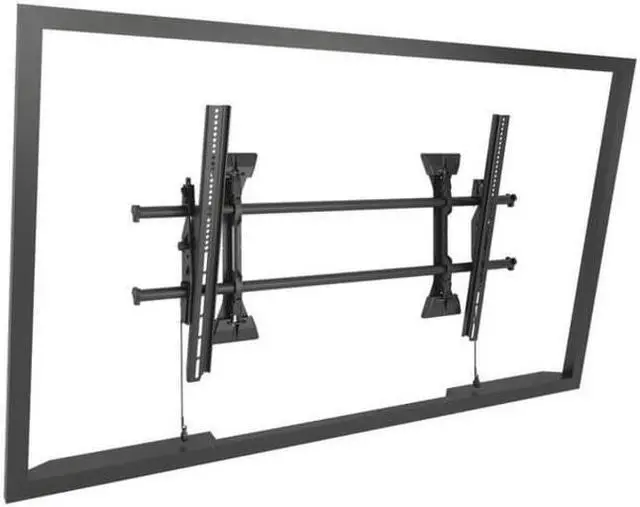

Chief XTM1U X-Large Fusion Micro-Adjustable Tilt Wall Mount

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

- Type of Mount/Mounting System The Chief XTM1U is an Extra-Large Fusion Tilt Micro-Adjustable Wall Mount. This type of mount provides a stable and flexible mounting system for large displays, allowing for adjustments in height, lateral shift, and tilt to ensure precise positioning and alignment of the display.
- Dimensions as H x W x D The dimensions of the Chief XTM1U Extra-Large Fusion Tilt Micro-Adjustable Wall Mount are 24.5 inches (H) x 42.75 inches (W) x 2.5 inches (D).
- Compatible with displays ranging from 55 to 100 inches in size and supports a weight capacity of up to 250 lbs. (113.4 kg). It's designed for dual-stud mounting, ensuring a secure and stable installation.
- Click Connect Latching Ensures secure attachment of the display to the mount.
- Comes in black color.
- Compatible with 100 x 100 mm - 1070 x 600 mm mounting pattern.
- Orientation: Landscape.
- Maximum screen thickness: 6".
- Lateral shift: 21.4".
- Wall stud compatibility: 24" - 42".
- Built-in teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall.
- ControlZone leveling for post-installation fine tuning of height and leveling while centris low-profile tilt uses center of gravity for screen balance.
- Set screws keep the mount rigid, stable secure throughout the life of the installation while integrated cable stand offers easy access under screen.
- UL Listed.

- Sold as 1 Each.
