Z X96Max PLUS TV BOX Android 9.0 Amlogic S905X3 Quad Core 4GB 32GB 2.4G&5GHz Wifi BT4.1 4K Set top box X96 Max X2

Z X96Max TV BOX Android 9.0 Amlogic S905X2 Quad Core 4GB 32GB 2.4G&5GHz Wifi BT 4.1 4K Set top box X96 Max X3

Note: The X96MAX plus is available in 3 versions, 2+16/4+32/4+64.

2+16 version:2.4G WIFI, (Not support Bluetooth)

4+32 version: 2.4G/5G WIFI, BT4.x

4+64 version: 2.4G/5G WIFI, BT4.x

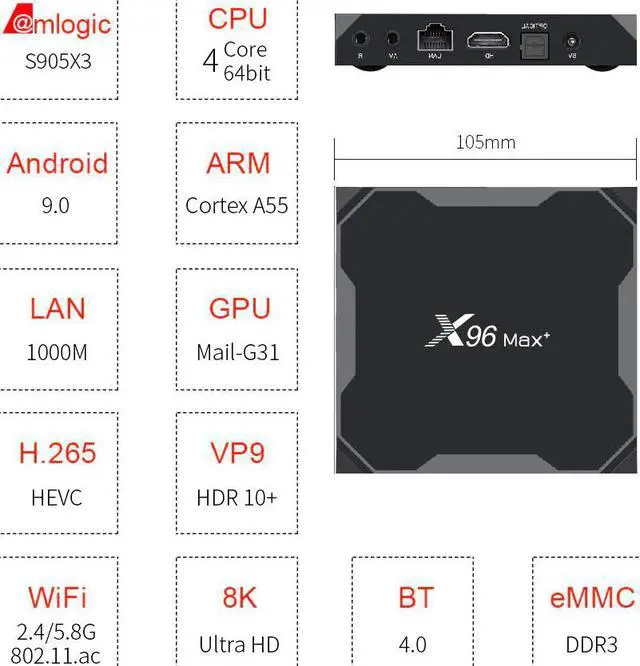

Product specifications

System Config:

CPU:Amlogic S905X3 64-bit quad core ARM® Cortex A55 CPU

GPU:G31 MP2 GPU processor

Memory:LPDDR4: 4GB

Flash:EMMC32GB

WiFi:IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G

BT:BT4.x +HS

Moudle:Plastic : Black Color

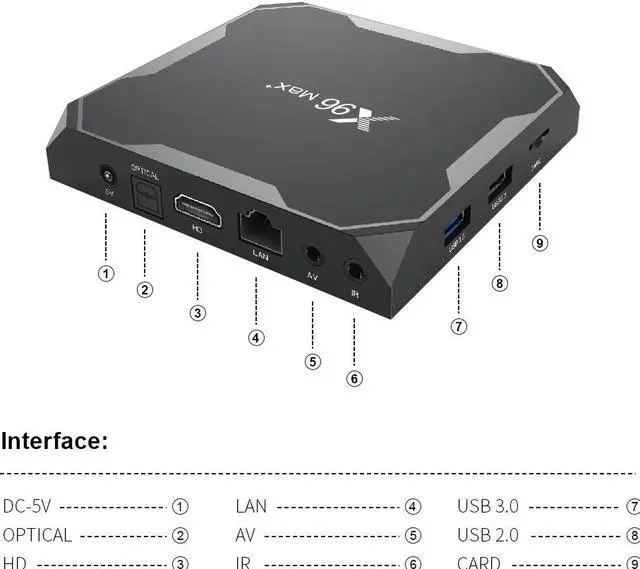

I/O:

HD:HD2.1 ,Support HD CEC, Dynamic HDR and HDCP 2.2,4Kx2K-75 max resolution output.

AV OUT:480i/576i standard definition output

USB:1* USB 3.0 ;1*USB 2.0

RJ45:Ethernet Interface;Support 10/100

TF CARD:Support 4GB/8GB/16GB/32GB/64GB

Power:DC 5V/2ALED indicatorWorking :Blue;

Software:

OS:Android 9.0

Video:

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4Kx2K-60fps+1x1080P-60fps

Supports multiple secured video decoding sessions and simultaneous decoding and encoding

Video/Picture Decoding

VP9 Profile-2 up to 4Kx2K-60fps

H.265 HEVC MP-10-L5.1 up to 4Kx2K-60fps

AVS2-P2 Profile up to 4Kx2K-60fps

H.264 AVC -L5.1 up to 4Kx2K-30fps

H.264 MVC up to 1080P-60fps

MPEG-4 ASP-L5 up to 1080P-60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P-60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P-60fps

MPEG-2 MP/HL up to 1080P-60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P-60fps (ISO-11172)

Audio:

Others:
