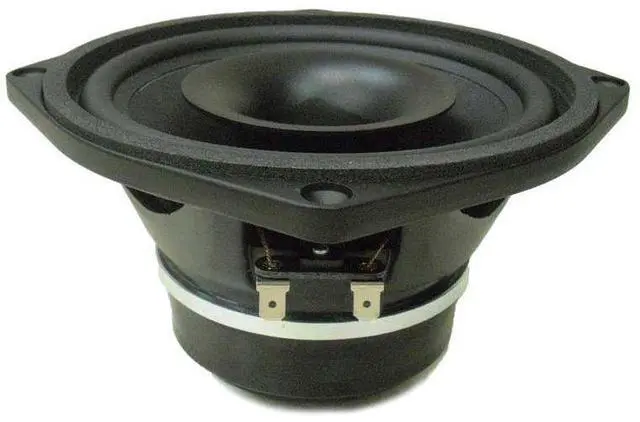

Beyma 6CX200ND 6 Coax Neo 200w

Nominal impedance LF / HF 8 / 8 ohm* Minimum impedance LF / HF 5.4 / 5 ohm* Power capacity LF / HF 200 / 40 W AES* Program power LF / HF 400 / 80 w* Sensitivity LF / HF 92 / 103 2.83 @ 1 m @ 2* Frequency range 65-20000 Hz* Recom. crossover frequency 2.5 kHz or higher (12 dB / oct. min slope)* Voice coil diameter LF / HF 50.8 / 44.4 mm - 2 / 1.75 in* BL factor 10.52 N / A* Moving mass 0.016 kg* Winding length 14 mm*
Bolt circle diameter: 6.77 -in* Cutout diameter 5.72 -in* Xdamage pp 26 mm* LF Recone kit ref. 5M6CX2ND8* HF diaphragm ref. 5MSMC2258200 WAES power handling capacity for LF unit * 40 WAES power handling capacity for HF unit *
High sensitivity: 92 dB (LF) and 103 dB (HF) *
Low resonant frequency: 65 Hz *
Extended controlled displacement: XMAX + / - 5, 5 mm *
Extended mechanical displacement capability: Xdamage + / - 26 mm * CONEX spider * Designed with MMSS technology * Common neodymium magnet system for both units * Low weight and mounting depth * Excellent off-axis response * 70 degree conical dispersion
