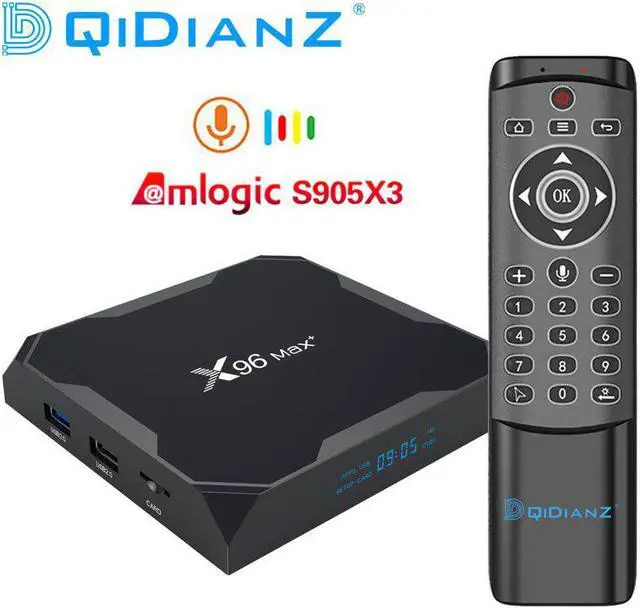

Z X96max Plus Android 9.0 Smart TV BOX Amlogic S905X3 Quad Core 2.4G&5G wifi BT X96 max Multimedia Set top box

Z X96max plus Android 9.0 Smart TV BOX Amlogic S905X3 Quad Core 2.4G&5G wifi BT X96 max Set top box Multimedia BOX

Note: The X96MAX Plus is available in 3 versions, 2+16/4+32/4+64.

2+16 version:  2.4G WIFI,  (Not support Bluetooth)

4+32 version: 2.4G/5G WIFI,  BT4.x

4+64 version: 2.4G/5G WIFI,  BT4.x

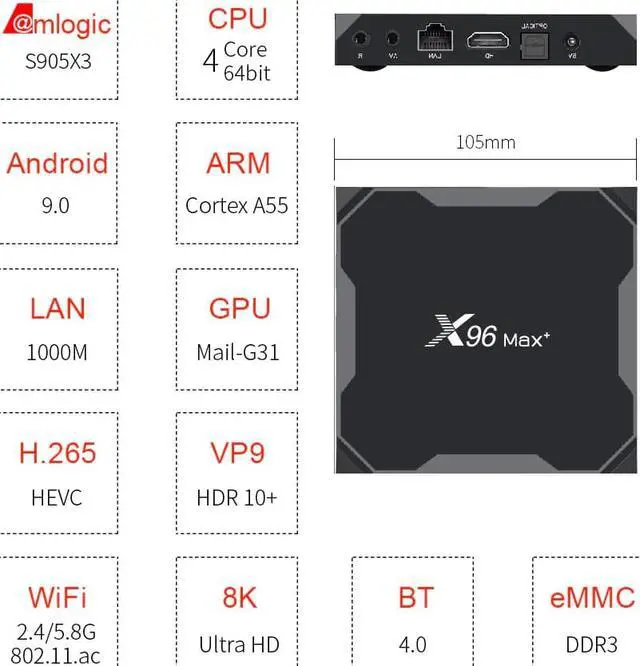

Product specifications

System Config:

CPU:Amlogic S905X3 64-bit quad core ARM® Cortex A55 CPU

GPU:G31 MP2 GPU processor

Memory:2GB/4GB

Flash:EMMC16GB/32GB/64GB

WiFi:IEEE 802.11 a/b/g/n/ac ;  2.4G / 5G

BT:BT4.x +HS

Moudle:Plastic : Black  Color

I/O:

HD:HD2.1 ,Support HD CEC, Dynamic HDR and HDCP 2.2,4Kx2K-75 max resolution output.

AV OUT:480i/576i standard definition output

USB:1* USB 3.0  ;1*USB 2.0

RJ45:Ethernet Interface;Support 10/100/1000M

TF CARD:Support 4GB/8GB/16GB/32GB/64GB

Power:DC 5V/2ALED indicatorWorking :Blue;

Software:

OS:Android 9.0

Video:

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4Kx2K-60fps + 1x1080P-60fps

Multiple supports secured video decoding sessions and simultaneous decoding and encoding

Video / Picture Decoding

VP9 Profile-2 up to 4Kx2K-60fps

H.265 HEVC MP-10-L5.1 up to 4Kx2K-60fps

AVS2-P2 Profile up to 4Kx2K-60fps

H.264 AVC HP-L5.1 up to 4Kx2K-30fps

H.264 MVC up to 1080P-60fps

MPEG-4 ASP-L5 up to 1080P-60fps (ISO-14496)

WMV / VC-1 SP / MP / AP up to 1080P-60fps

AVS-P16 (AVS +) / AVS-P2 JiZhun Profile up to 1080P-60fps

MPEG-2 MP / HL up to 1080P-60fps (ISO-13818)

RealVideo 8/9/10 up to 1080P-60fps
