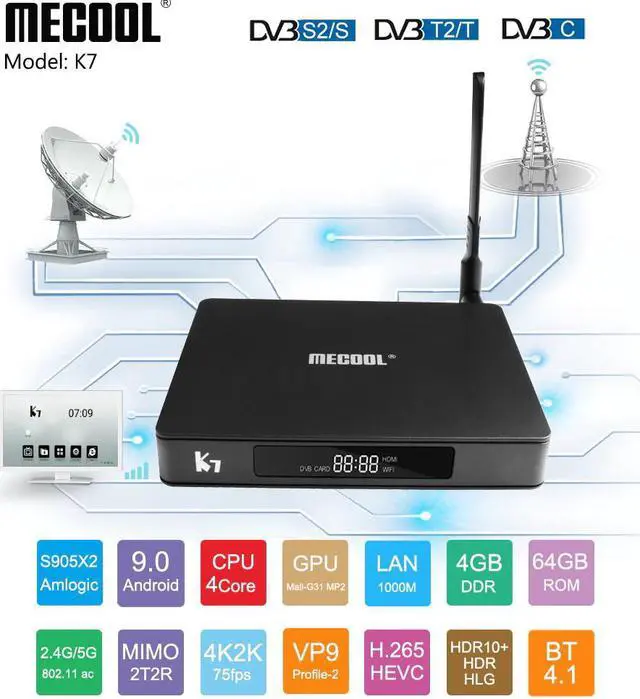

K7 DVB-S2 DVB-T2 DVB-C Android 9.0 TV Box 4G 64G Amlogic S905X2 2.4G/5G WiFi USB 3.0 Smart TV Box Media Player

Model: K7

OS: Android 9.0

CPU: Amlogic S905X2 Quad core ARM Cortex-A53 CPU

GPU: ARM Mali-G31 MP2 GPU

RAM: 4GB

ROM: 64GB

WiFi: Built in 2.4G/5G WiFi 2T2R Support IEEE 802.11 b/g/n/ac

BT: V4.1

LAN Ethernet: 10/100/1000M

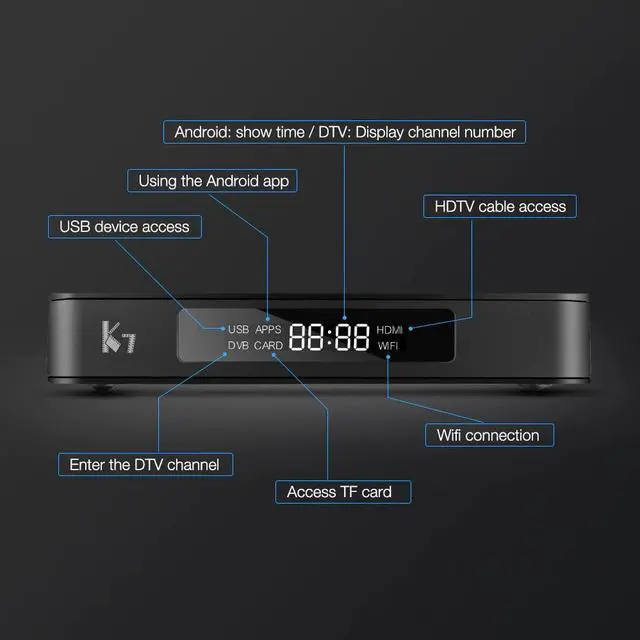

LED Displays: 4 digits LED Segment Displays and Standby :Red LED

Language: English, German, French, Spanish, Italian, Chinese, Japanese etc. 24 languages

HDR: Dynamic HDR10, HDR10, HLG and Technicolor HDR processing

OTA: Support OTA update

I/O

1* HDTV support 4K*2K@60 max resolution output

1* USB 2.0

1* USB 3.0

1* TF CARD Support 1~32GB

1* 3.5 Phone out CVBS&L/R output

1* SPDIF

1* RJ45 LAN

1* DC 12V/1A

DVB-S2

DVB-S2 system standardETS 302 307

Symbol Rates: QPSK,8PSK

Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Symbol Rates: 1- 55 Msps

Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8

Input Signal level: -84 dBm to 0 dBm (average power)

ANT. Connector:TYPE F

DVB-T2/T

DVB-T2/T system standardETSIEN 302 755

Support MPLP

Demodulation: QPSK,16QAM,64QAM or 256QAM

Forward error correction rate 1/2,2/3,3/4,3/5,5/6

Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128

Bandwith: 6/7/8MHz

Input Frange range:54--860MHz Input Impedance:75

Input Signal level: -84 dBm to 0 dBm (average power)

ANT. Connector: TV Plug 9.5mm Female

DVB-C

DVB_C system standardETSI EN300 429 V1.2.1
