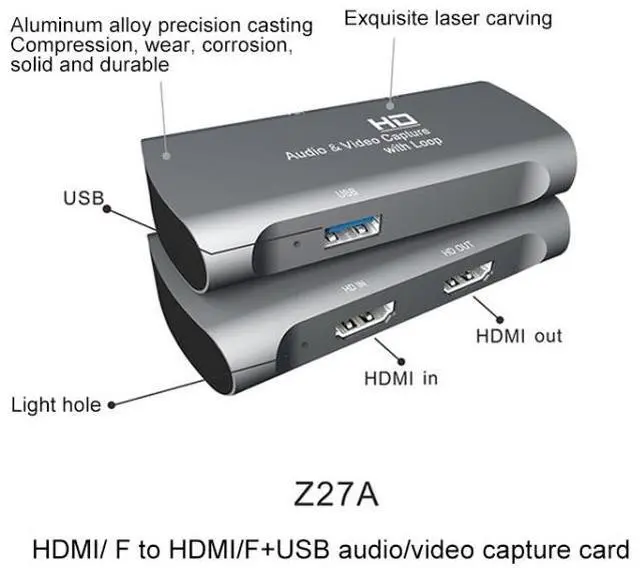

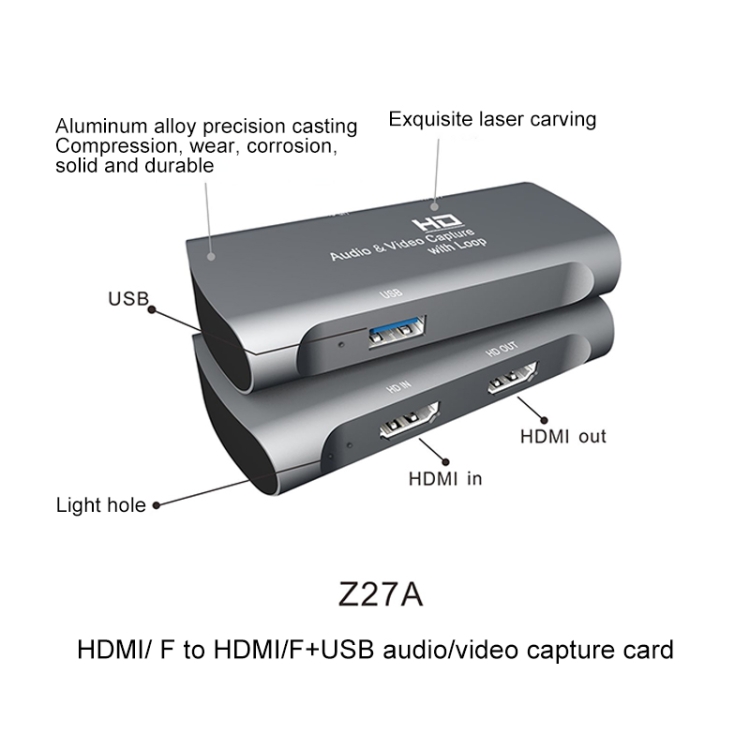

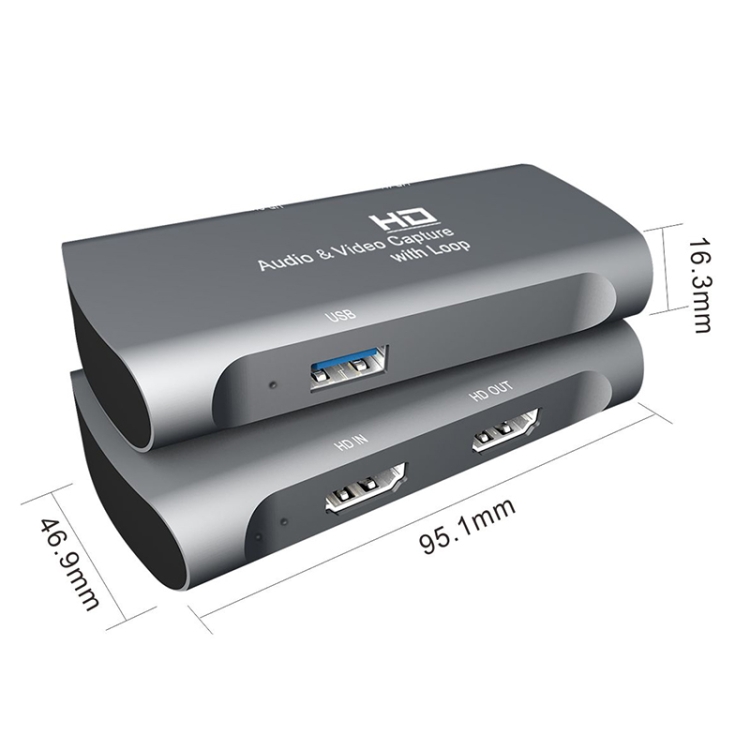

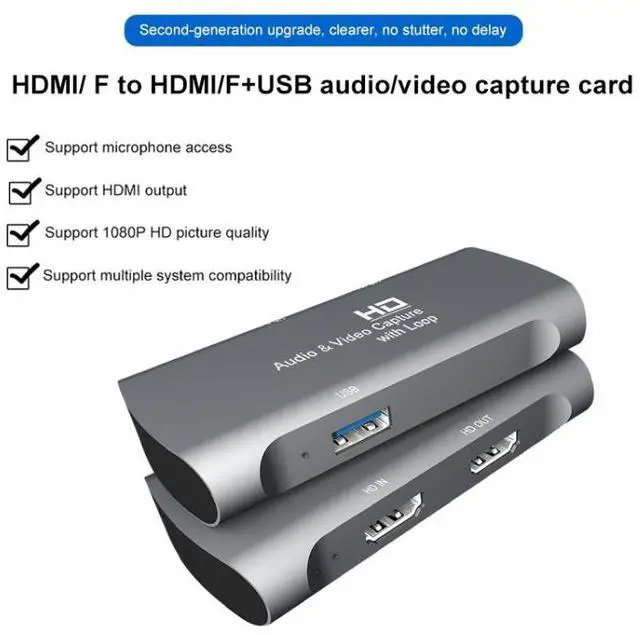

Z27A HDMI Female to HDMI Female USB Video Audio Capture Box

1. Product materials: Adopt aluminum alloy CNC technology, surface sand surface oxidation, environmental protection; with good anti-interference and heat dissipation capabilities.
2. Product features: This product is a portable HDMI high-definition video capture card that can simultaneously capture HDMI audio and video signals and transmit them to mobile phones and computers for preview, editing, storage and other multi-functional applications.

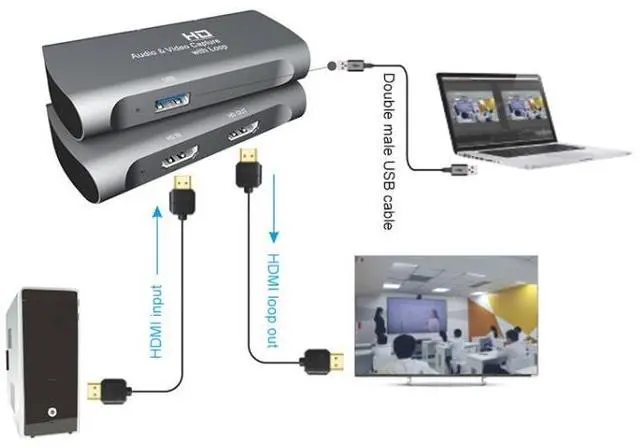

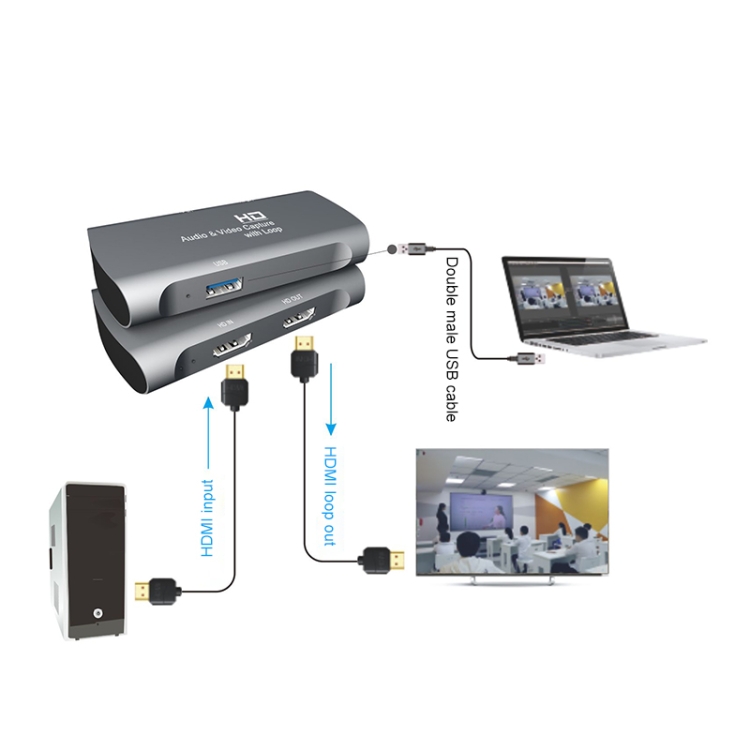

3. Product application: connect the HDMI input end of the capture card to the signal source, and the HDMI output end to the display port, for high-definition acquisition, video recording, video live broadcast, teaching recording, medical imaging, game live broadcast, video live broadcast, and record camera HD video Wait.

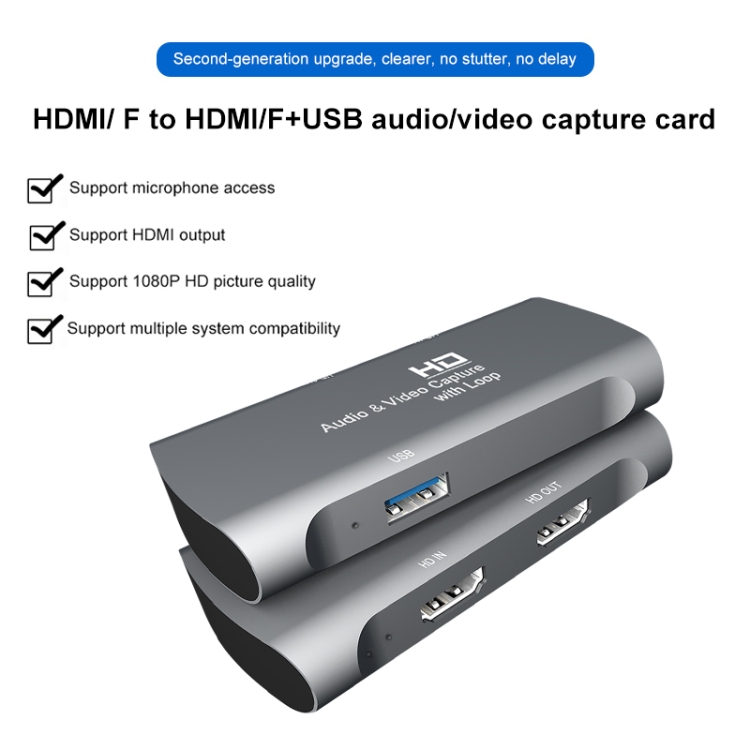

Features :
1. The product complies with USB video UVC specification
2. Support operating systems such as Windows, Android, Linux and MacOS
3. Support most acquisition software, such as VLC, OBS, Amcap, etc.
4. Support HDMI local loop out
5. Input: HDMI/F input can support 4K, 8/10/12 bit color depth input format
6. Output: USB2.0/M supports up to 1080P; YUV, JPEG output mode
7. When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
8. High-definition capture, strong compatibility, smooth picture without stutter, no delay
9. No need for external power supply, small size, ultra-thin and portable
10. Operating environment: -20 Degree C to 75 Degree C, relative humidity 5% to 95%
