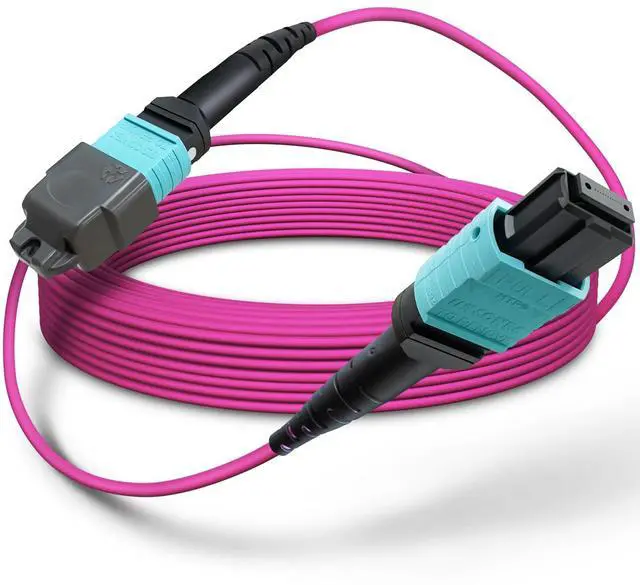

40ft OFNP MTP/MPO Fiber Cable 12 Strand Female, MTP to MTP OM4 Multimode Fiber Optic Ptach Cord, Type B Plenum MTP Jumpers
Limited time offer, ends 09/07 By Brightflag Electronics
- Equipped with US Conec Female (no pins) MTP Elite Connectors: MTP Elite fully complies with MPO standards, yet provides improved mechanical designs and optical performance. 12-Fiber MTP OM4 Multimode Trunk Cables: MTP/MPO Cable built with 12 strands of OM4 fibers in a single cable, boosting data rate performance by up to 12 times compared to traditional cables while occupying less physical space. The MTP/MPO-12 OM4 Trunk also supports MTP-8 fiber systems, making it well-suited for 8-fiber parallel multimode optical transceiver applications, such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optics direct connection. Low-Loss 12 Core Type B MTP Fiber Patch Cable: Insertion Loss 0.35dB Max (0.15dB Typ.) Plenum (OFNP) Flame-Rating Outer Jacket: complies with UL 910 regulations and serves as a substitute for OFNR (riser) rated cable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Equipped with US Conec Female (no pins)
MTP Elite Connectors: MTP Elite fully complies with MPO standards, yet provides improved mechanical designs and optical performance. 12-Fiber
MTP OM4 Multimode Trunk Cables: MTP/MPO Cable built with 12 strands of OM4 fibers in a single cable, boosting data rate performance by up to 12 times compared to traditional cables while occupying less physical space. The MTP/MPO-12 OM4 Trunk also supports MTP-8 fiber systems, making it well-suited for 8-fiber parallel multimode optical transceiver applications, such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optics direct connection. Low-Loss 12 Core Type B MTP Fiber Patch Cable: Insertion Loss 0.35 dB Max ( 0.15 dB Typ. ) Plenum (OFNP)
Flame-Rating Outer Jacket: complies with UL 910 regulations and serves as a substitute for OFNR (riser) rated cable
MTP Elite Connectors: MTP Elite fully complies with MPO standards, yet provides improved mechanical designs and optical performance. 12-Fiber
MTP OM4 Multimode Trunk Cables: MTP/MPO Cable built with 12 strands of OM4 fibers in a single cable, boosting data rate performance by up to 12 times compared to traditional cables while occupying less physical space. The MTP/MPO-12 OM4 Trunk also supports MTP-8 fiber systems, making it well-suited for 8-fiber parallel multimode optical transceiver applications, such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optics direct connection. Low-Loss 12 Core Type B MTP Fiber Patch Cable: Insertion Loss 0.35 dB Max ( 0.15 dB Typ. ) Plenum (OFNP)
Flame-Rating Outer Jacket: complies with UL 910 regulations and serves as a substitute for OFNR (riser) rated cable
