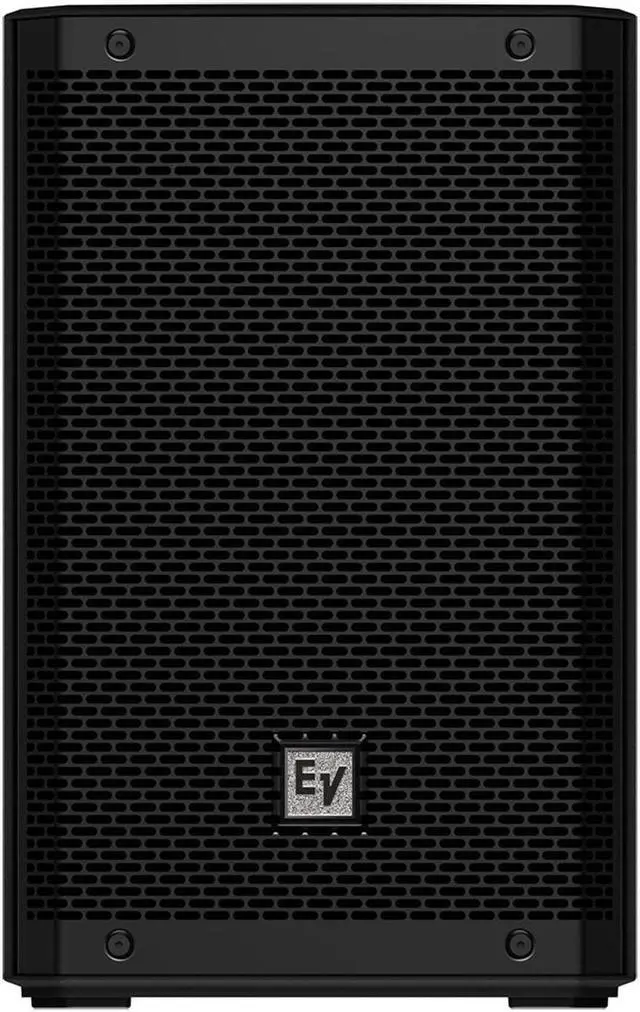

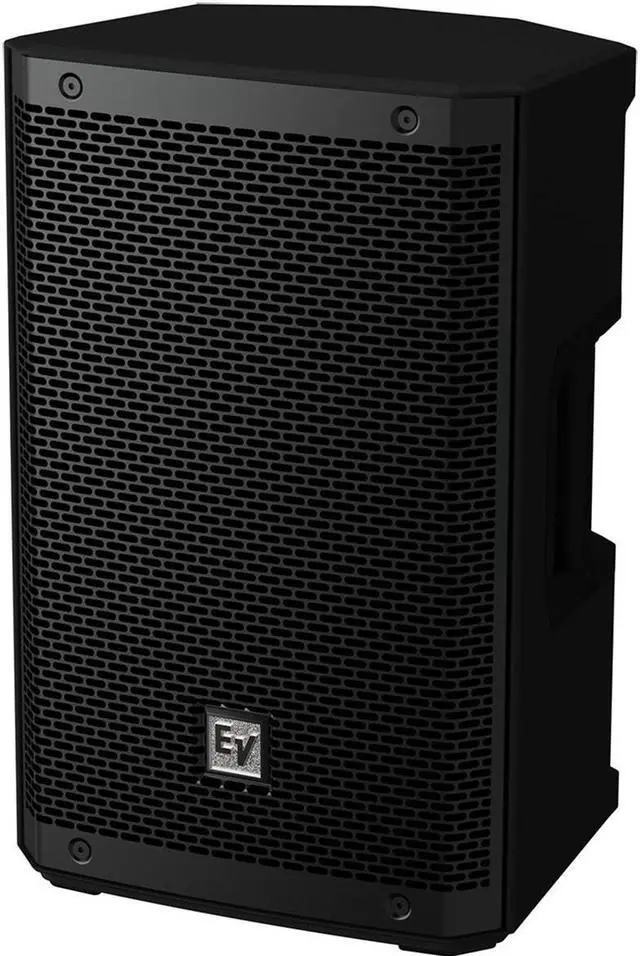

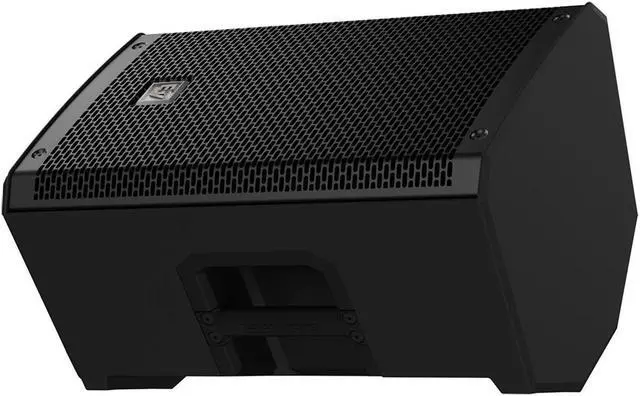

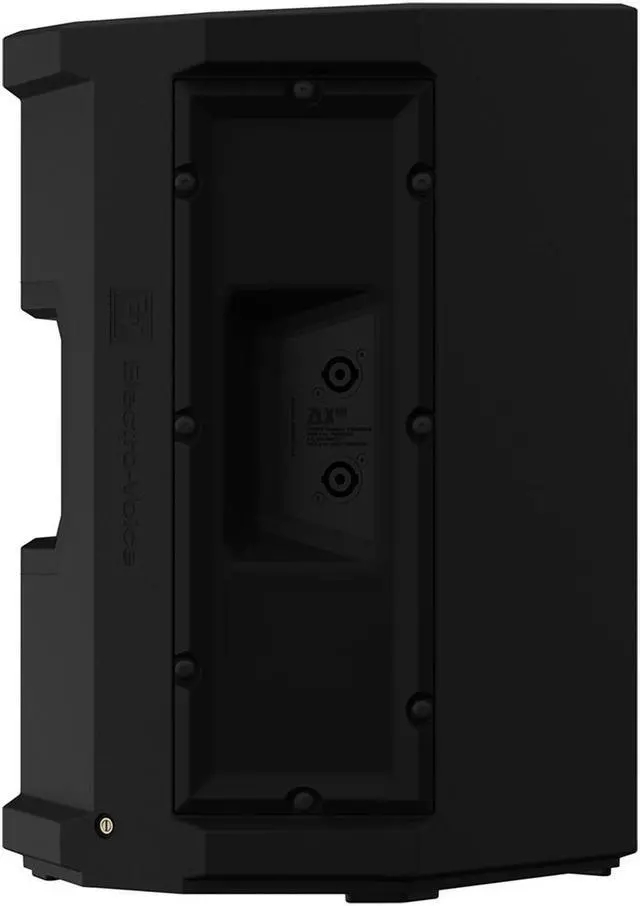

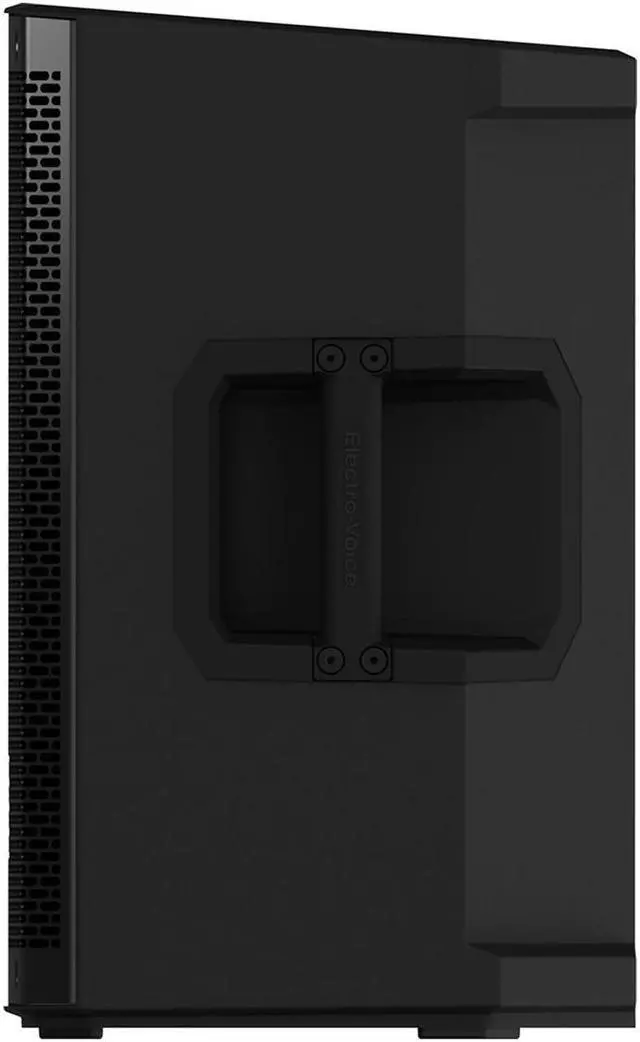

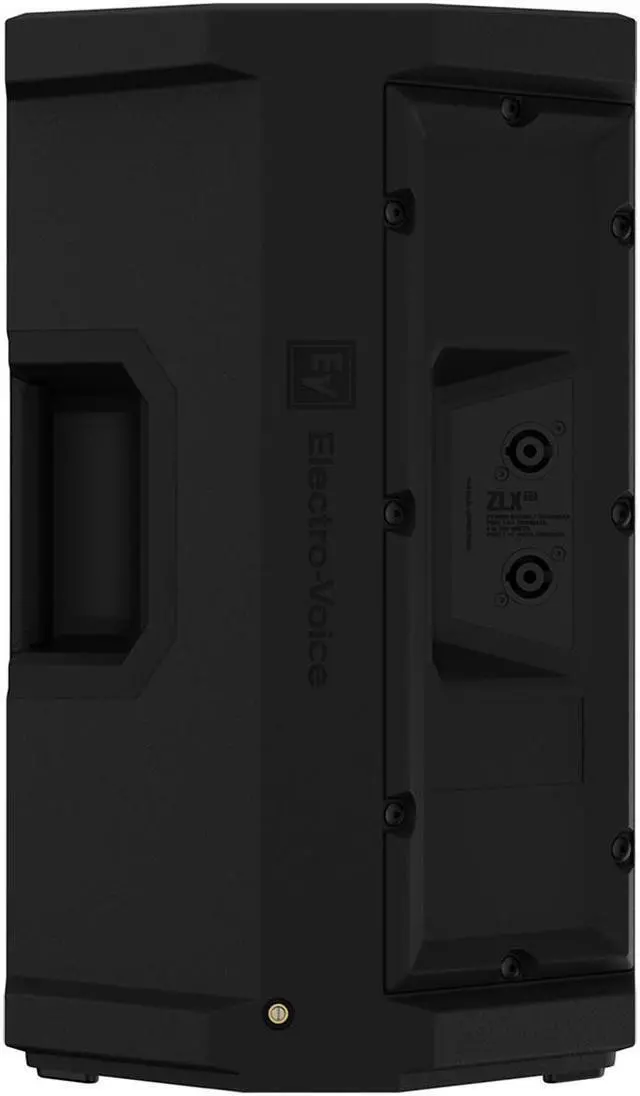

Electro-Voice Electro-Voice 8" 2-way powered speaker, US cord

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch
woofer sizes.
ZLX-G2 loudspeakers offer the best-in-class acoustic
output. Electro-Voice patented SST baffle design
ensures improved bass, small size, and even coverage
across all frequencies.
ZLX-8P-G2 loudspeakers feature a built-in 4-channel
mixer with FX, EQ, automatic feedback suppression and
ducking. The mixer includes two XLR/TRS combo jacks,
providing 24V phantom power and Hi-Z compatibility.
Bluetooth® stereo streaming and linking for true
wireless stereo setup are integrated into the ZLX-G2
family. Users are able to pair and link to two ZLX-G2
powered loudspeakers in a stereo system wirelessly.
The mixer and all speaker functions are easily
controlled from the Electro-Voice QuickSmart Mobile
app. The single encoder and push key interface ensure
a simple and quick setup. The app allows pairing and
grouping of up to six loudspeakers, in any combination.
ZLX-8P-G2 loudspeakers use industry standard
connections, such as XLR and 1�4-inch TRS, at common
signal levels to be compatible with other products on
the market.
ZLX-8P-G2 loudspeakers contain Electro-Voice specific
subwoofer presets. These presets adjust for both gain
and time alignment for full acoustic optimization.
Additional generic high pass (HP) filters are available in
the DSP. The DSP is easily adjustable by the large full
color LCD display.

ZLX-G2 family accessories such as padded covers, a U-
bracket for wall mounting 12- and 15-inch models, and

short and long wall mount brackets for use with the
speaker pole mounts are available.

FEATURES:

High Quality Stereo Bluetooth® 5.0 streaming.
Easy to use with QuickSmart Mobile app and
Electro-Voice's Intuitive User Interface.
POWERED BY DYNACORD with built-in digital
4-channel mixer.
Large full color LCD display.
Controls and connections easily accessible even
in monitor position.

SPECIFICATIONS:

Frequency response (-3 dB) (Hz) 1

58 Hz â?? 20,000 Hz
Frequency range (-10 dB) (Hz) 1,2 50 Hz â?? 20,000 Hz
Maximum sound pressure level at a
distance of 1 m (dB) 3

126 dB
Coverage angle HxV (°) 90° x 60°
Crossover frequency (kHz) 1.40 kHz
Power rating (W) 1000 W
Power consumption (V, Hz) 4

100 - 240 V~, 50 - 60 Hz
LF transducer WECA2088
LF transducer size (in) 8 in
LF transducer magnet material Ferrite
HF transducer DECA2516
HF transducer type Compression driver
HF transducer size (in) 1.40 in
Hf transducer magnet material Ferrite
HF transducer diaphragm material Titanium
Connector type (2) XLR/TRS combo, (1) 1/4-inch TS

Hi-Z
Material Polypropylene
Grille material Powder coated steel
Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
Shipping dimensions (H x W x D)
(mm)

500 mm x 390 mm x 350 mm
Shipping dimensions (H x W x D) (in) 19.69 in x 15.35 in x 13.78 in
