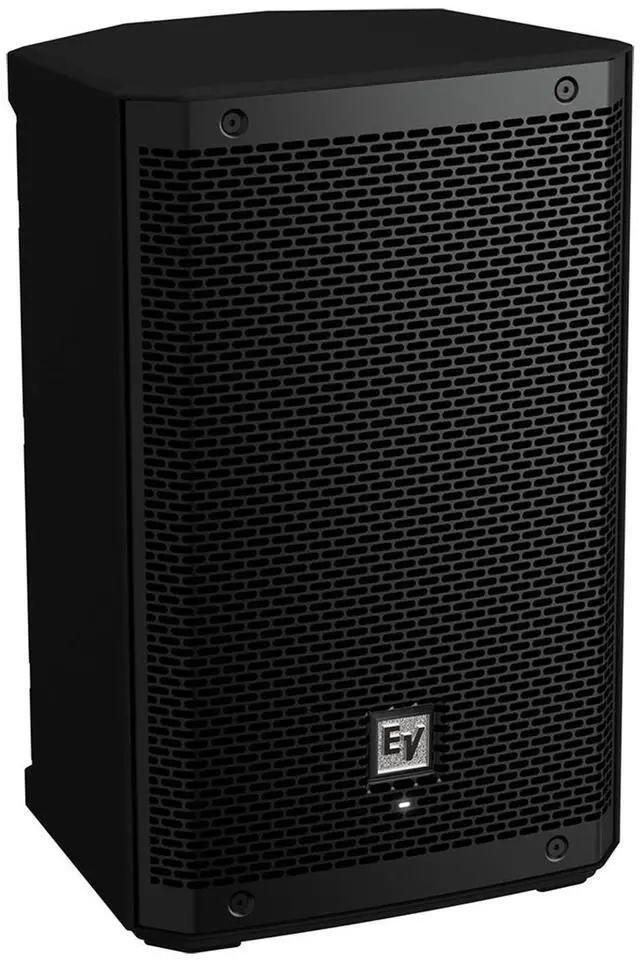

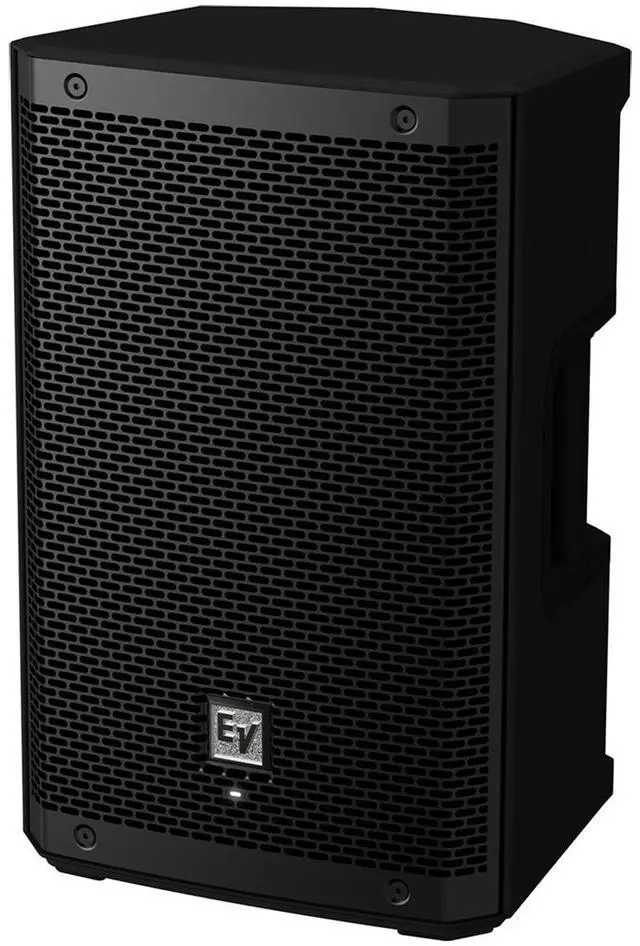

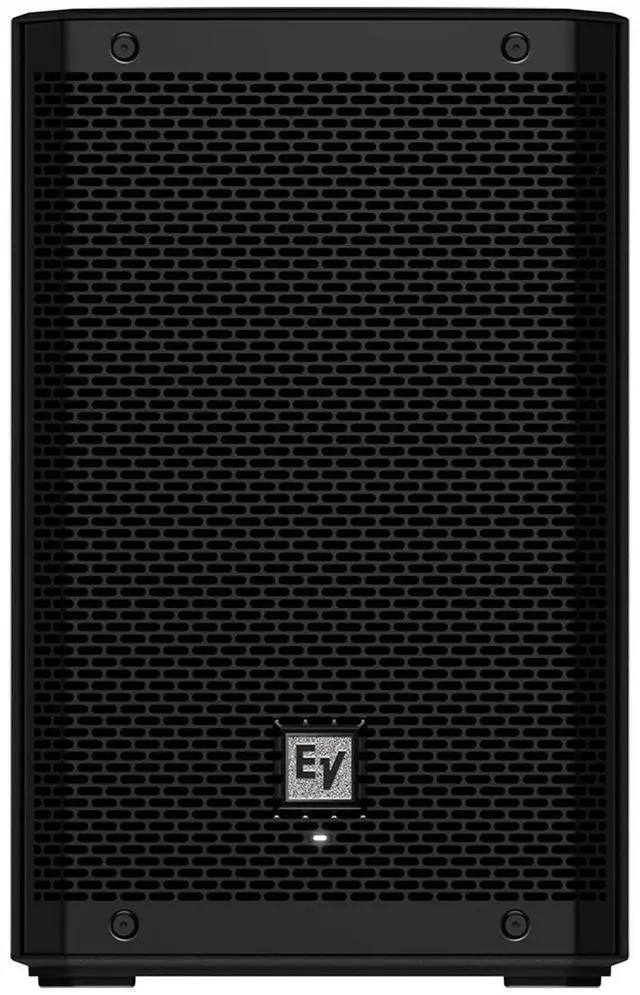

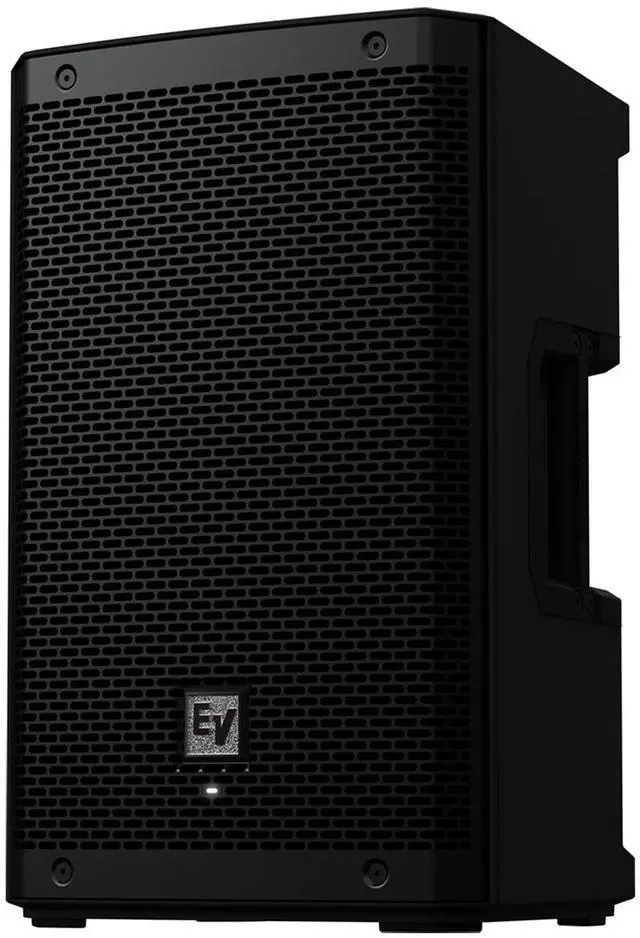

Electro-Voice ZLX8 G2 | Passive 8in 2-way - 127dB

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch

woofer sizes.

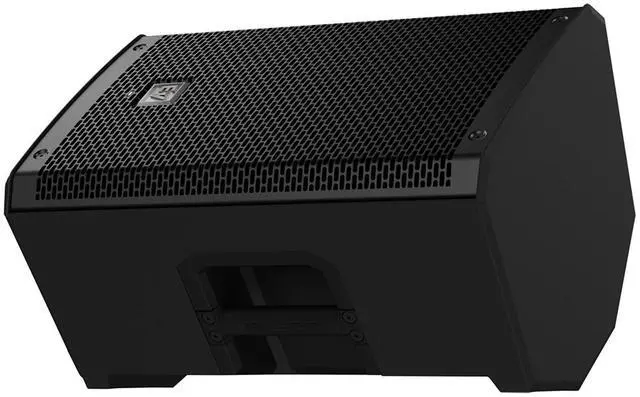

Building on the tried and tested ZLX series, ZLX-G2

loudspeakers feature an improved angled cabinet

design allowing for a 55-degree monitor angle. 12 and

15-inch models additionally include a kickback 25-

degree monitor angle.

ZLX-G2 loudspeakers offer the best-in-class acoustic

output. Electro-Voice patented SST baffle design

ensures improved bass, small size, and even coverage

across all frequencies.

ZLX-8-G2 uses industry standard NL4 connections. The

two NL4 connectors are in parallel and pass through all

pins.

For optimal acoustics and performance, ZLX-8-G2 is

recommended to be used with a Dynacord DSP power

amplifier programmed with the appropriate speaker

settings included in the ZLX-G2 Database for SONICUE.



ZLX-G2 family accessories such as padded covers, a U-

bracket for wall mounting 12- and 15-inch models, and



short and long wall mount brackets for use with the

speaker pole mounts are available.



FEATURES:



Includes 55-degree monitor angle plus 23-

degree kickback angle.

Recommended to use with Dynacord DSP

power amplifiers.

SONICUE integration - optimized speaker

settings for best performance.

Connections easily accessible even in monitor

position.



SPECIFICATIONS:



Frequency response (-3 dB) (Hz) 1



67 Hz 20,000 Hz



Frequency range (-10 dB) (Hz) 1



55 Hz 20,000 Hz

Axial sensitivity (dB SPL 1W/1m) 90 dBspl 1W/1m

Maximum sound pressure level at a

distance of 1 m (dB) 1



127 dB

High pass frequency (Hz) 60 Hz

Crossover frequency (kHz) 2 kHz

Coverage angle HxV (°) 90° x 60°

Power handling (continuous) (W) 250 W

Power handling (peak) (W) 1,000 W

Nominal impedance () 8

LF transducer WECA2088

LF transducer size (in) 8 in

LF transducer magnet material Ferrite

HF transducer DH-1K

HF transducer type Compression driver

HF transducer size (in) 1.5 in

HF transducer diaphragm material Titanium

Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm

Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in

Shipping dimensions (H x W x D)

(mm)



500 mm x 390 mm x 350 mm
