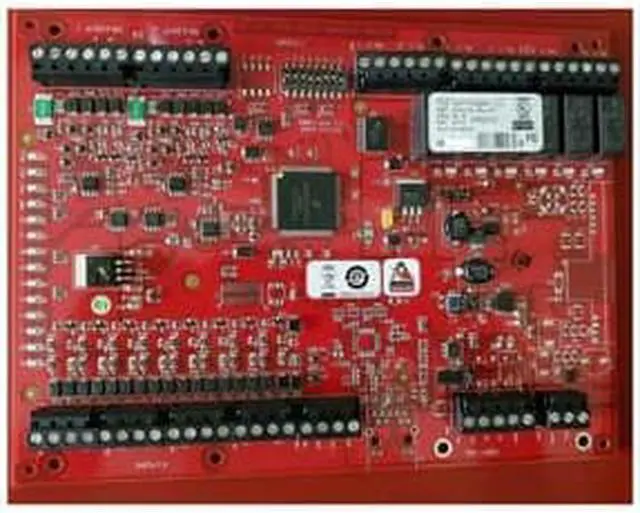

Mercury MR52-S3 Module Dual Reader Series-3 Interface Panel (NOB)
- Brand: Mercury
- Model: MR52-S3
- Product Type: Interface Panel Module
- Condition: New Open Box
- Note: 90-Days Warranty from Seller Only
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Mercury MR52-S3 Module Dual Reader Series-3 Interface Panel (NOB)
Brand: Mercury
Model: MR52-S3
Product Type: Interface Panel Module
Reader Ports: 2 Reader Ports*
Max Number of Doors per Controller: 2 doors/controller
Primary Power: 12-24 VDC +/- 10%, 550mA maximum
Host Communication: RS–485, 2-WIRE, 4,000’ (twisted pair with shield, Belden 9841)
Inputs: 8 General Purpose: Programmable circuit type 2 Dedicated: Tamper and Power Monitor
Output Relays: Six Form-C Relays: ; Normally open contact (NO): 5A @ 30 VDC resistive ; Normally closed contact (NC): 3A @ 30 VDC resistive
Communication Type: RS–485
Storage Temperature: -55° - 85° C
Operational Temperature: 0° - 70° C
Humidity Temperature: 5 to 95% RHNC
Voltage: 12 ~ 24 V DC
Operating Temp oC: 0 ~ 70 C (32 ~ 158 F)
