16S 5A 12S 14S Active Equalizer 13S 15S Whole Group Balancer Lifepo4 Lipo Lto Lithium Active Battery Energy Transfer Equalization Capacitor

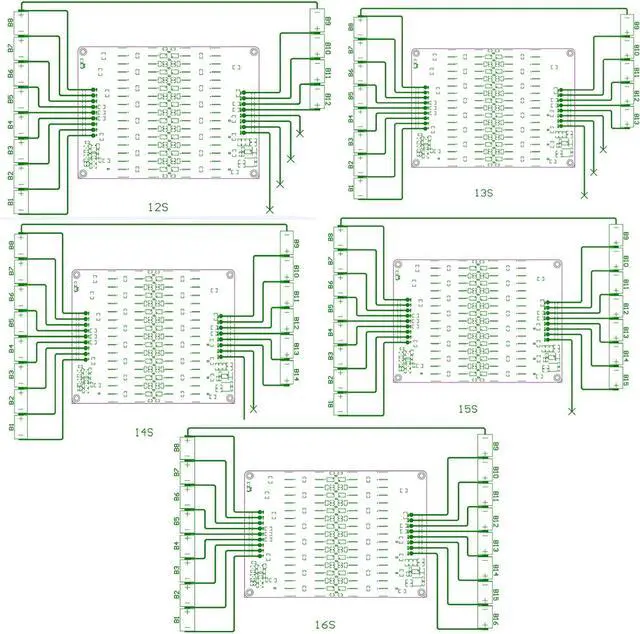

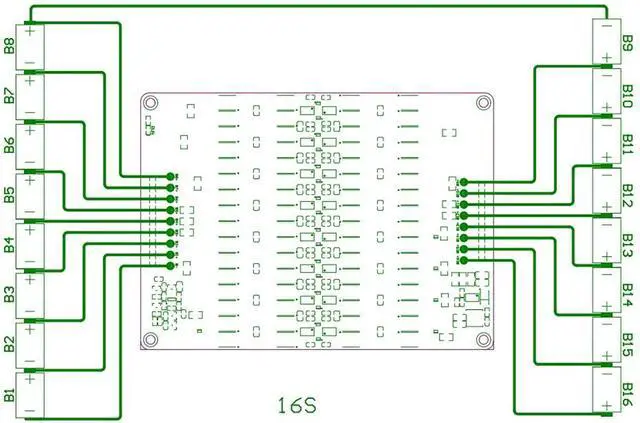

- [Product Information]: Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout.Model:12S-16S Suitable : Lithium Iron Phosphate, NCM Ternary Polymer,Lithium Titanate, Voltage is 1.8 V-4.5V,Suggest Battery Capacity: 60-300AH.
- [Capacitance Principle]: No external power supply is required,The working principle is Capacitor fit transfers the charge transporter, use the internal energy transfer of the battery to transfer and balance the entire battery pack.the equalization board can be connected to the battery to start the equalization work.
- [Protection switch]: With sleep protection, when the voltage is lower than 3V, it will automatically stop and enter the sleep state to reduce the damage to the battery.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

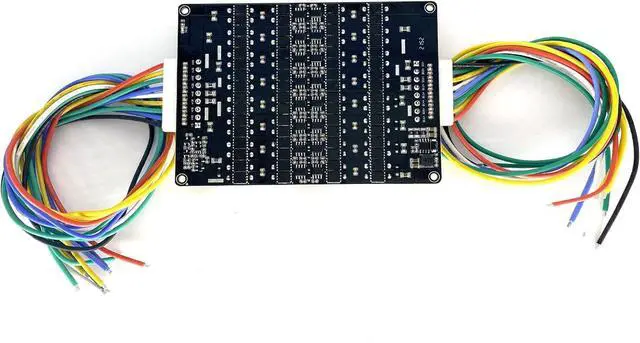

[Original Design]:using the original ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalizing current 0-5.5A, The more balanced the battery, the lower the current.
[Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not support), we will give you a perfect solution.
Product Describtion:
Model:12S-16S
Suitable : Lithium Iron Phosphate, NCM Ternary Polymer,Lithium Titanate
Voltage is 1.8 V-4.5V
Quiescent Current: 12mA
Suggest Battery Capacity: 60-300AH
Working Temperature :0-60 degrees
Sleep Protection:voltage
Safety InformationBefore connecting the equalization board, check whether each piece of wiring is correct, and do insulation work to prevent burnout,This is very important, please pay attention.
NOTE: If the LED indicator is always on, it means that the capacitor plate has been running in a balanced manner. When a fault occurs, the LED indicator will go out.

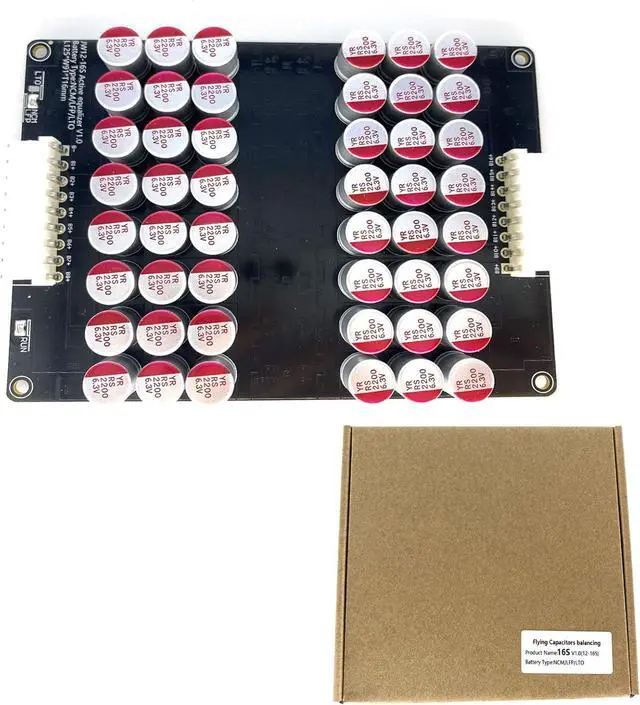

Package Included:
1*12S-16S 5A Active Equalizer Lifepo4 Lipo Lto Lithium
[Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not support), we will give you a perfect solution.
Product Describtion:
Model:12S-16S
Suitable : Lithium Iron Phosphate, NCM Ternary Polymer,Lithium Titanate
Voltage is 1.8 V-4.5V
Quiescent Current: 12mA
Suggest Battery Capacity: 60-300AH
Working Temperature :0-60 degrees
Sleep Protection:voltage
Safety InformationBefore connecting the equalization board, check whether each piece of wiring is correct, and do insulation work to prevent burnout,This is very important, please pay attention.
NOTE: If the LED indicator is always on, it means that the capacitor plate has been running in a balanced manner. When a fault occurs, the LED indicator will go out.
Package Included:
1*12S-16S 5A Active Equalizer Lifepo4 Lipo Lto Lithium
