61-535 Digital Circuit Breaker Finder with Digital Receiver and GFCI Circuit Tester
- cULus 1436 certified, CAT II 150-Volt
- Quickly and easily identifies circuit breakers/fuses without disrupting power on energized 120-Volt AC circuits, clear visual and audible indicators (audibles can be muted)
- NCVT in receiver tip indicates presence of AC voltage between 80-Volt tov300-Volt
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Flashlight in receiver operates independently of the tester functions and can be used to illuminate work area

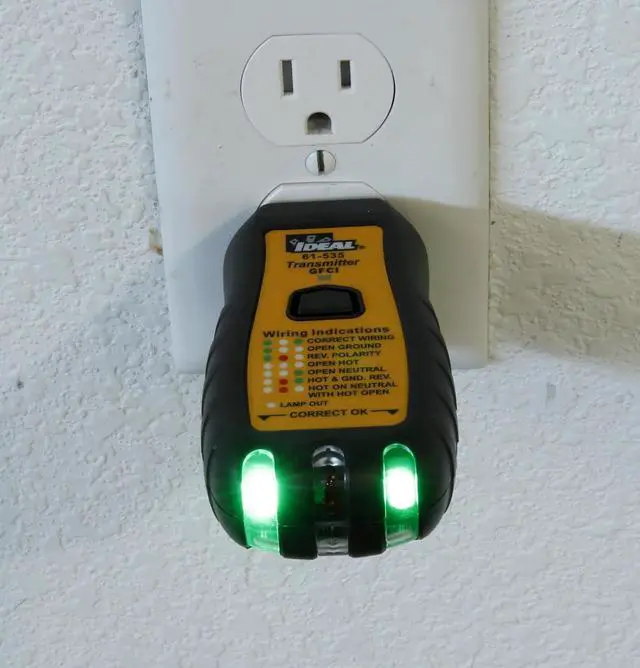

Transmitter tests outlet wiring configurations (indicated via green/red LEDs) and tests GFCIs, receiver powers off automatically after 5-minutes of non-use to conserve battery life

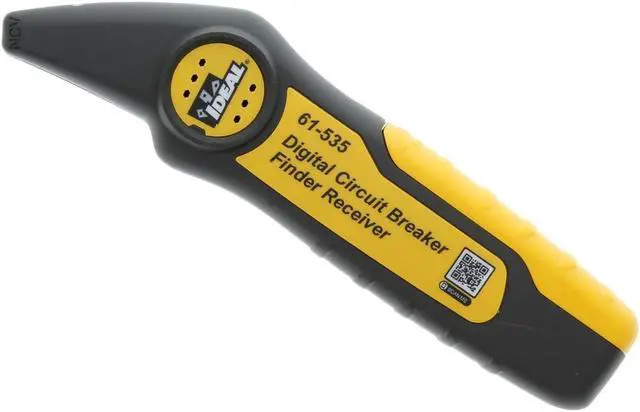

The IDEAL 61-535 is a 120-Volt AC circuit breaker finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated green and red LED's and contains a GFCI trip tester. The receiver reads the transmitter's signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal.
The receiver also senses the presence of AC voltage (80-Volt to 300-Volt AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
Transmitter tests outlet wiring configurations (indicated via green/red LEDs) and tests GFCIs, receiver powers off automatically after 5-minutes of non-use to conserve battery life
The IDEAL 61-535 is a 120-Volt AC circuit breaker finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated green and red LED's and contains a GFCI trip tester. The receiver reads the transmitter's signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal.
The receiver also senses the presence of AC voltage (80-Volt to 300-Volt AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
