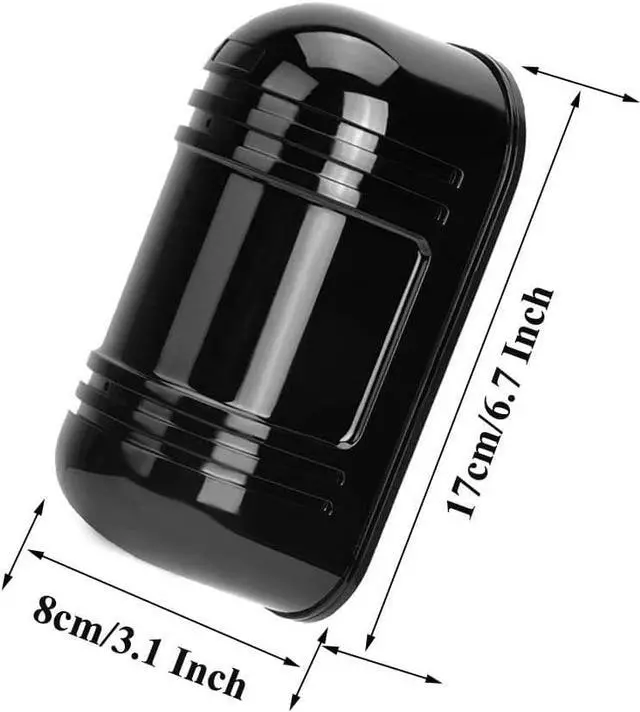

Dual Laser Detector Alarm Beam Sensor Indoor 300m Outdoor 60m Infrared Detector 6.7"x3.1"
- Reliable & Safe: Yohii laser alarm with twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc. Lensed optics reinforces beam strength & provides excellent immunity to false alarms due to rain, snow, mist, etc.

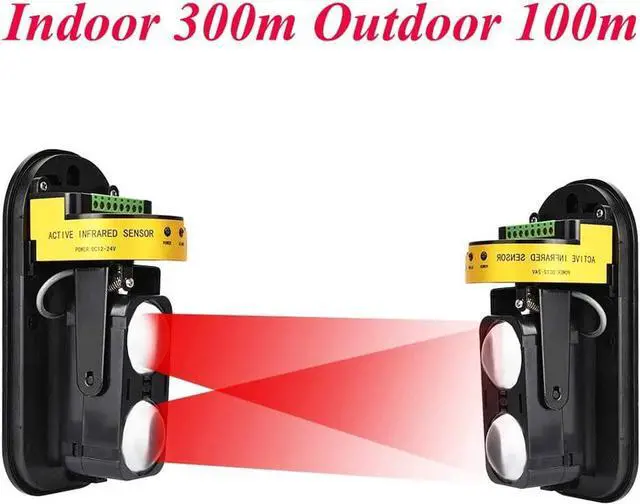

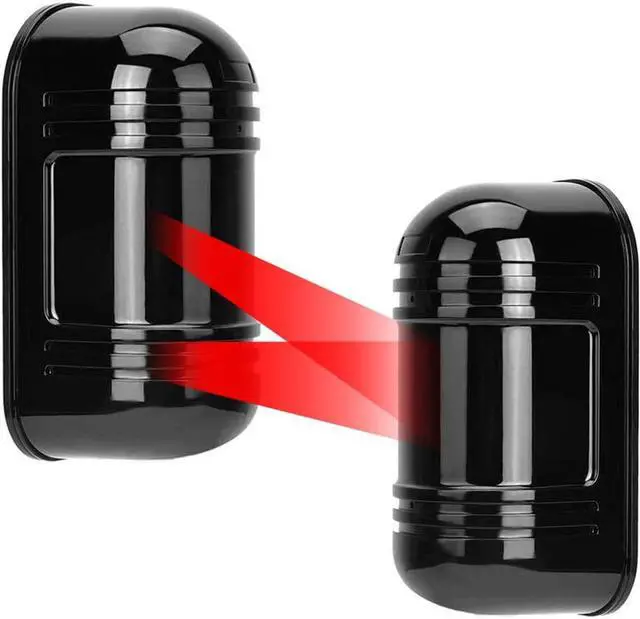

- Principle: This is Alarm Two Beam photoelectric infrared detector ABT: 60m. Install them at the opposite positions. Then there is a infrared area between these two detector parts. When someone passes the infrared region for an adjusted response time, the detector will send alarm signal to the security alarm host (which not included here) work with 2pcs power apater
- Powerful Function: Holographic spot real:time report. Unique displacing receiving, transmitting parts with big power. Full function checking, self:adaption in environment and trouble locking
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Durable: Powerful
Automatic Adjustment Design: The transmit power will be adjusted automatically according to the environmental conditions, which greatly extends the life of the launching tube, while lowering power consumption

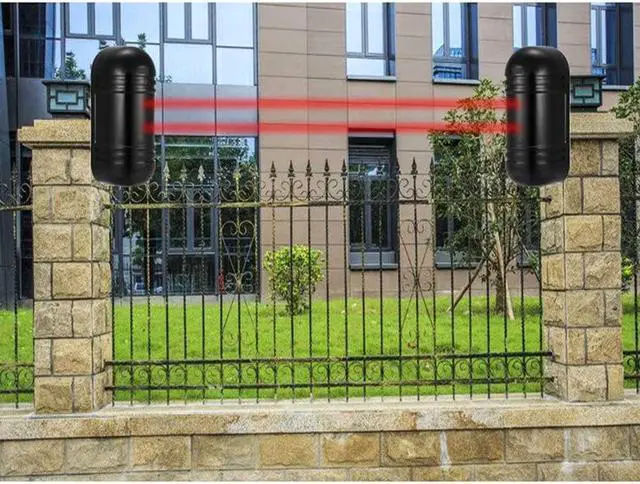

Scope of Application: Great to be installed for security system in school, office building, hospital, home yard, etc.
Specification
Number of Beams: 2 beams
Install Distance(Max. )
Outdoor: 60m/ Indoor: 300m
Dtection Mode: 2 beams blocked simultaneous
Optical Source: Infrared digital pulse beam
Relay Contact Output: NO. NC
Response Speed: 50 ~ 700msec
Contact Rating Output: AC/DC30V 0.5AM ax
Operation Temperature: -25 °C - 55 °C
Operation Humidity: 5% - 95% RH (relative humidity)
Power Supply: DC 13.8 ~ 24V AC 11 ~ 18V P 15W
Product Feature
1. The sensor has a built-in laser beam alignment system that speeds accurate, reliable positioning.
2. Ensure the safety of your property by adding this perimeter-style photobeam sensor to your security system.

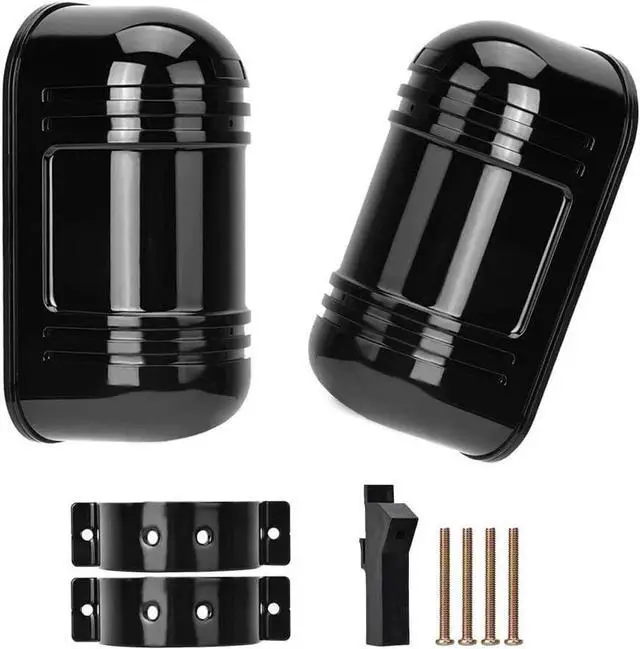

Package Content
1 x Laser detector laser alarm beam sensor(1x transmiter, 1x receiver)
1 x Installation accessories (Including screws)
1 x Operating instruction.
Automatic Adjustment Design: The transmit power will be adjusted automatically according to the environmental conditions, which greatly extends the life of the launching tube, while lowering power consumption
Scope of Application: Great to be installed for security system in school, office building, hospital, home yard, etc.
Specification
Number of Beams: 2 beams
Install Distance(Max. )
Outdoor: 60m/ Indoor: 300m
Dtection Mode: 2 beams blocked simultaneous
Optical Source: Infrared digital pulse beam
Relay Contact Output: NO. NC
Response Speed: 50 ~ 700msec
Contact Rating Output: AC/DC30V 0.5AM ax
Operation Temperature: -25 °C - 55 °C
Operation Humidity: 5% - 95% RH (relative humidity)
Power Supply: DC 13.8 ~ 24V AC 11 ~ 18V P 15W
Product Feature
1. The sensor has a built-in laser beam alignment system that speeds accurate, reliable positioning.
2. Ensure the safety of your property by adding this perimeter-style photobeam sensor to your security system.
Package Content
1 x Laser detector laser alarm beam sensor(1x transmiter, 1x receiver)
1 x Installation accessories (Including screws)
1 x Operating instruction.
