HDMI Scanline Generator Portable Audio Video Output HDMI Image Scan Line Generator Function Board for All Retro Games/Gamers/Mame/Arcade Game/Emulator

AHDMI OUTHDMI Video-Signal/Audio-Signal Out Interface
DWIDTH-Width switchDual or Singular scan lines
Note: If you experience screen cutoff or display issues, please try adjusting the output resolution settings on your game console for optimal compatibility and full screen display.

Description:
HDMI Image Scan Line Generator Function:

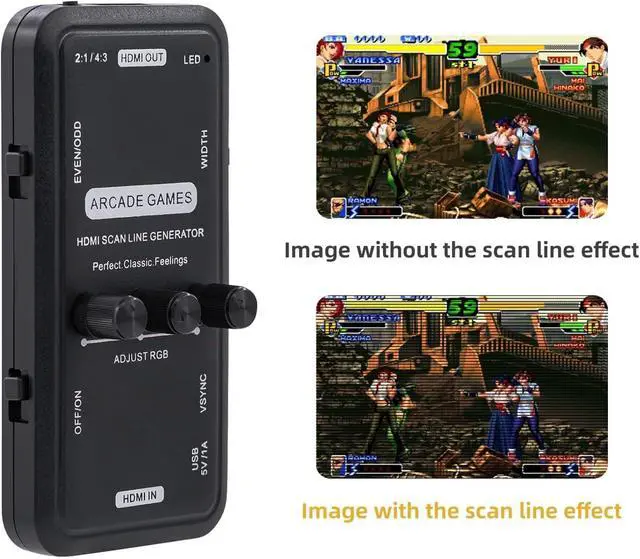

Arcade game video image produces the scan line effectclassicnostalgiaPerfect recall of CRT. 15KHZ video image display effectRe-experience arcade game classic pictureFeel again the wonderful image of the scan line.

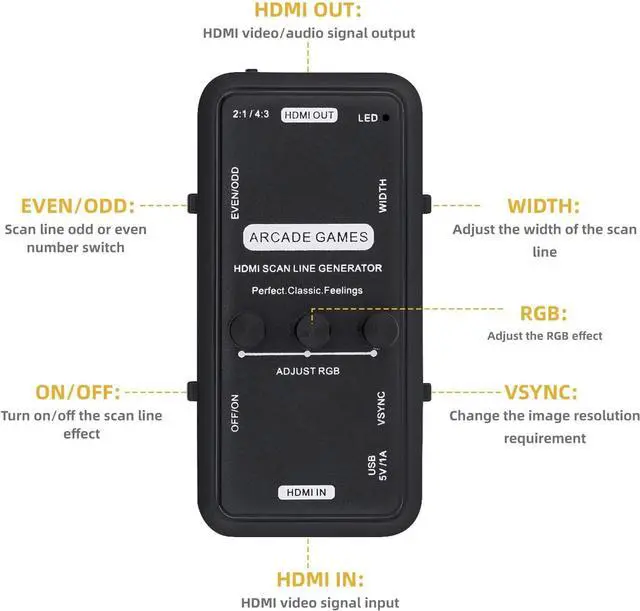

Scan Line Generator Function Switch Description:

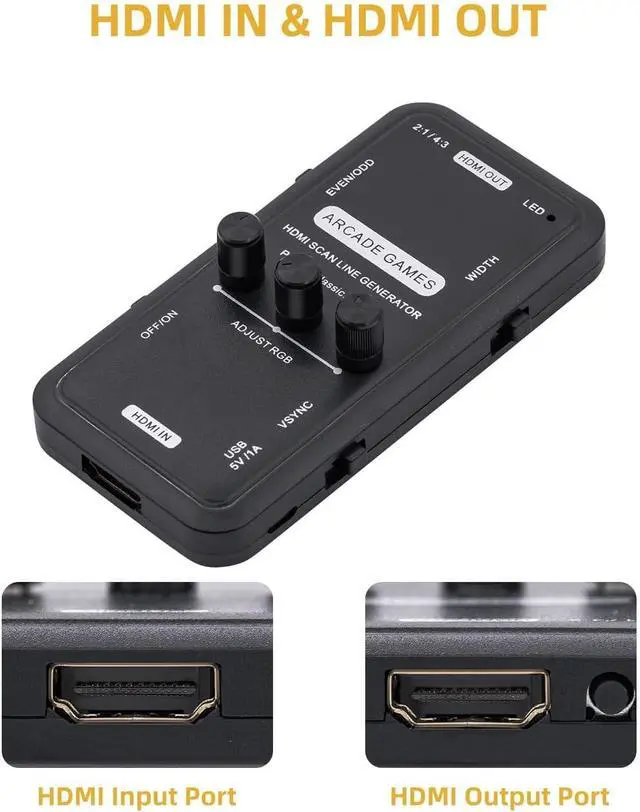

AHDMI OUTHDMI Video-Signal/Audio-Signal Out Interface.
BHDMI InHDMI Video-Signal In Interface.
CEVEN/ODD-Scan line odd or even number switch.
DWIDTH-Width switchDual or Singular scan lines.
EON/OFF- The total switch of the scan line effect.
FVSYNC-Image resolution adapter switchChange the resolution requirement.
GR G B- Red Green Blue debuggingMainly through three potentiometer debugging effect.
Description of vertical signals:
1. If the scan line switch is ON, The scan line has no effectimage darker, This is vertical signal is out of sync.
2. If you need scan line effect, Toggle (VSYNC) to switch sync, resulting in effect.
3. If you don't need the scan line effect, switch is set to OFF, Image restoration to normal VGA state. Darken image will restore brightness.
Operation:
- ON/OFF-You can easily open or close the scan line, without removing the board.
- The intensity of the scanning line can be fine-tuned by three adjustable resistors on the.
Packing Includes:
1 x Scanline Generator
