$186.99
Meet Your Seller
Pocket Logic Analyzer LA104, Portable Mini Size Handheld, Built-in Rechargeable Battery, 4 Channels, Max Sampling Rate 100Msa/s, SPI/I2C/UART Protocol, Entry Level Logic Analyzer for Beginner
- FEATURESBuilt in 4 channel for testing; Max. sample rate in 100Mhz; min. capture pulse width in 10ns.
- SCREEN AND BATTERYIntegrated with 2.8 inch and 320x240 colorful display screen, as well as 500mAh lithium rechargeable battery.

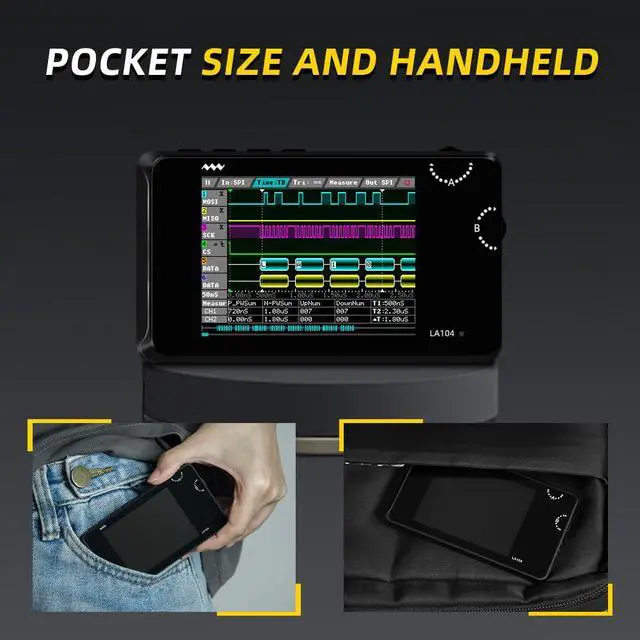

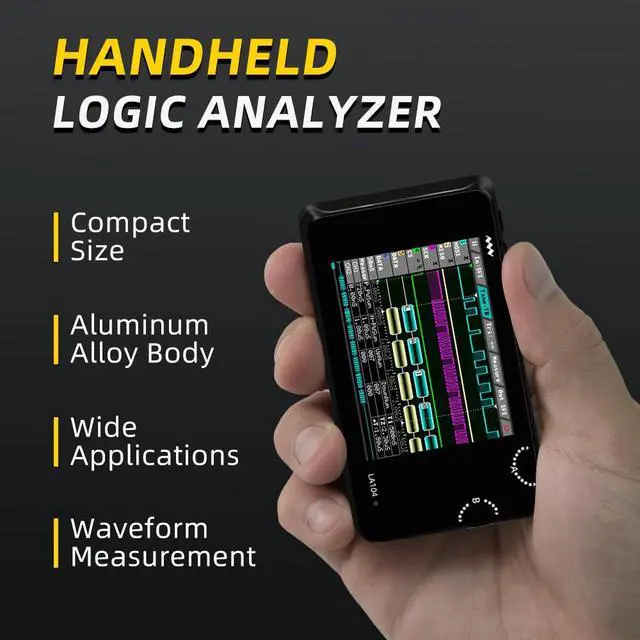

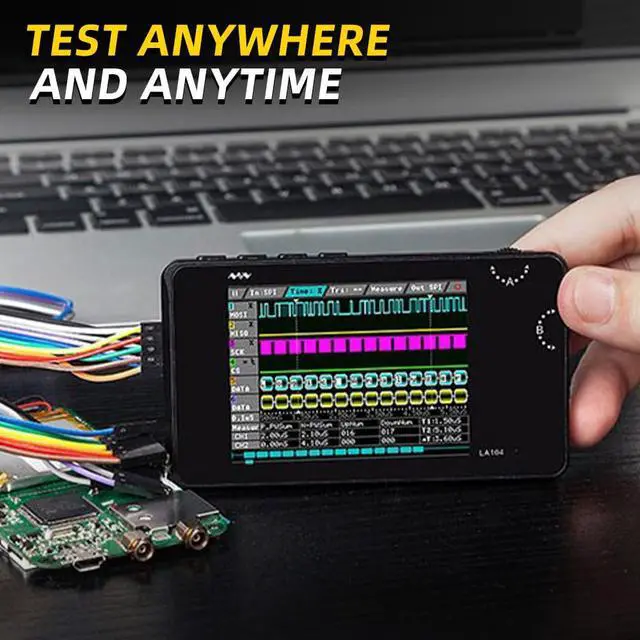

- HANDHELDIdeal for beginner of electronic hobbyist with the small and compact size that could be carried in the pocket, allowing you to achieve every detailed testing anywhere and anytime.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DATA STORAGEbuild-in 8 MB storage memory and could export logic waveform data to computer with micro USB data conexion.

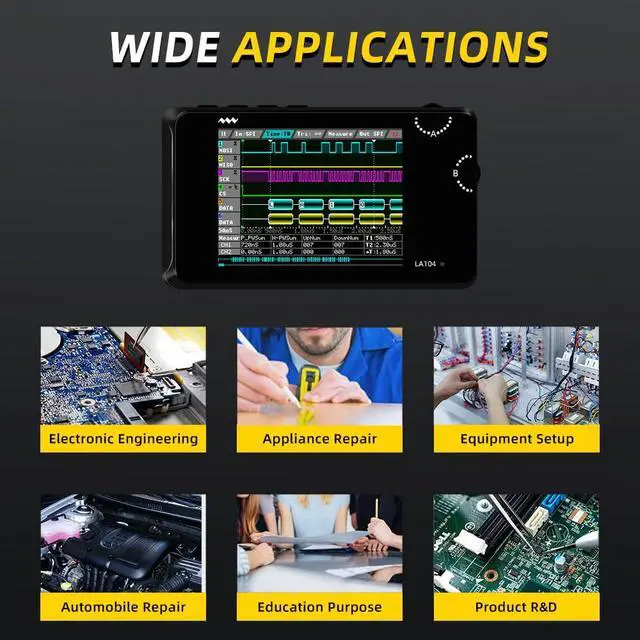

APPLICATIONwidely applicable in the academic experiment, electronics repair, electronic engineering etc. WARNINGIMPORTANT, PLEASE DO NOT CHARGE THIS ANALYZER DURING MEASUREMENT!!!
is an innovative product brand of e-Design, specialized in designing and developing smart tools in mini size, the main products are mini oscilloscopes, mini logic analyzers, smart electric soldering irons, smart screwdrivers and precise digital power supplies, as well as the research and development of relative products.
Storage: built-in 8M flash memory
Battery: 500mAh lithium
Display: 2.8 inch color LCD screen
Size: 100mm* 56.6 mm* 8.4 mm

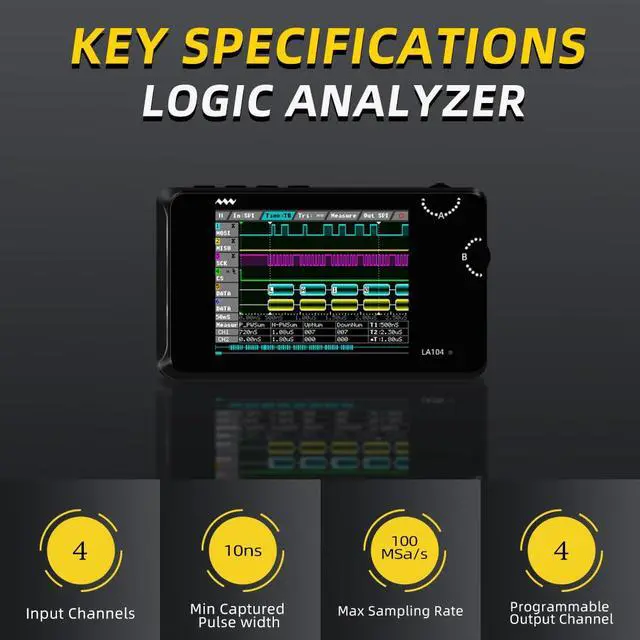

Technical
Input Channels 4
Max. Sampling Rate 100MSa/S
Min. Captured Pulse Width 10ns
Input Voltage Range 0-5V
Equivalent Input Impedance 1M
Thredhold Voltage 1.2 -3V
Programmable Output Channels 4
Programmable Output Type PWM, SPI, I2C, UART
Programmable Output Amplitude 3V
3V Power Output Channel 1
APPLICATIONwidely applicable in the academic experiment, electronics repair, electronic engineering etc. WARNINGIMPORTANT, PLEASE DO NOT CHARGE THIS ANALYZER DURING MEASUREMENT!!!
is an innovative product brand of e-Design, specialized in designing and developing smart tools in mini size, the main products are mini oscilloscopes, mini logic analyzers, smart electric soldering irons, smart screwdrivers and precise digital power supplies, as well as the research and development of relative products.
Storage: built-in 8M flash memory
Battery: 500mAh lithium
Display: 2.8 inch color LCD screen
Size: 100mm* 56.6 mm* 8.4 mm
Technical
Specifications
Input Channels 4
Max. Sampling Rate 100MSa/S
Min. Captured Pulse Width 10ns
Input Voltage Range 0-5V
Equivalent Input Impedance 1M
Thredhold Voltage 1.2 -3V
Programmable Output Channels 4
Programmable Output Type PWM, SPI, I2C, UART
Programmable Output Amplitude 3V
3V Power Output Channel 1
