Electric Magnetic Door Lock with Z and L Bracket Outdoor Waterproof 280KG 600lb Holding Force Electromagnet Lock 12V DC Fail Safe NC Mode for Access Control System
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 280KG (600lb) and significant features.
- Waterproof: This lock is waterproof design; the circuit board and chip are glued, making it suitable for outdoor use in rainy weather.
- Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: DC12V.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor.
Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
Electric Magnetic Door Lock with Z and L bracket Waterproof 280KG 600lb Holding Force Fail Safe
Features
This magnetic door lock provides a strong sense of security with its outstanding holding force 280KG (600lb) and significant features.
Stainless steel, Anti-residual magnesium designed.

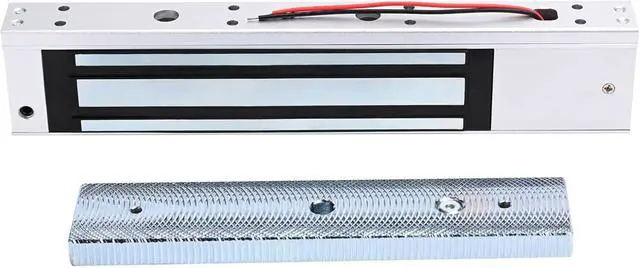

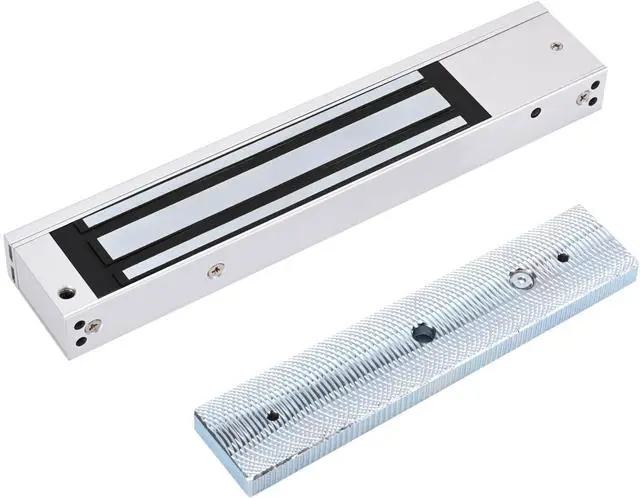

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
Attach this to the door frame and the armature plate to the door.
A current passing through the electromagnet attracts the armature plate, holding the door lock shut.
This lock is waterproof design; the circuit board and chip are glued, making it suitable for outdoor use in rainy weather.
This magnetic lock is NC mode (fail safe), the door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, cabinet, etc.
With Z and L bracket included in the package, you can install the lock more conveniently.
600lb Magnetic Lock
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Holding Force: 280kg/600lbs
Input Voltage: DC 12V
Operating Temp: -10 ~ +55C (14-131F)
Size: 9.84L x 1.93W x 0.98H (in)
Armature plate: 7.09L x 1.50W x 0.43H (in)
Package Weight: Approx. 4.0 lb ( 1.78KG )
Z and L Bracket
High strength aluminum, sandblast finished.
Opening Mode: 90 degree door.
Suitable for Door: Wooden and metal door.
Suitable for Lock: 600lb Electromagnetic lock.
Easy to install and convenient to use.
Package Weight: 0.60KG / 1.33 pounds.
Package Included
Package list of Magnetic Lock:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
Package List of Z and L Bracket:
2 * "Z" Style Bracket
1 * "L" Style Bracket
1 * Screws Pack
Installation
L Bracket- For outward opening door
When the door frame thickness is less than 42mm ( 1.65 inch), L bracket is needed.
ZL Bracket- For inward opening door
For inward opening door, ZL bracket is needed.
Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
Electric Magnetic Door Lock with Z and L bracket Waterproof 280KG 600lb Holding Force Fail Safe
Features
This magnetic door lock provides a strong sense of security with its outstanding holding force 280KG (600lb) and significant features.
Stainless steel, Anti-residual magnesium designed.
This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
Attach this to the door frame and the armature plate to the door.
A current passing through the electromagnet attracts the armature plate, holding the door lock shut.
This lock is waterproof design; the circuit board and chip are glued, making it suitable for outdoor use in rainy weather.
This magnetic lock is NC mode (fail safe), the door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, cabinet, etc.
With Z and L bracket included in the package, you can install the lock more conveniently.
600lb Magnetic Lock
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Holding Force: 280kg/600lbs
Input Voltage: DC 12V
Operating Temp: -10 ~ +55C (14-131F)
Size: 9.84L x 1.93W x 0.98H (in)
Armature plate: 7.09L x 1.50W x 0.43H (in)
Package Weight: Approx. 4.0 lb ( 1.78KG )
Z and L Bracket
High strength aluminum, sandblast finished.
Opening Mode: 90 degree door.
Suitable for Door: Wooden and metal door.
Suitable for Lock: 600lb Electromagnetic lock.
Easy to install and convenient to use.
Package Weight: 0.60KG / 1.33 pounds.
Package Included
Package list of Magnetic Lock:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
Package List of Z and L Bracket:
2 * "Z" Style Bracket
1 * "L" Style Bracket
1 * Screws Pack
Installation
L Bracket- For outward opening door
When the door frame thickness is less than 42mm ( 1.65 inch), L bracket is needed.
ZL Bracket- For inward opening door
For inward opening door, ZL bracket is needed.
