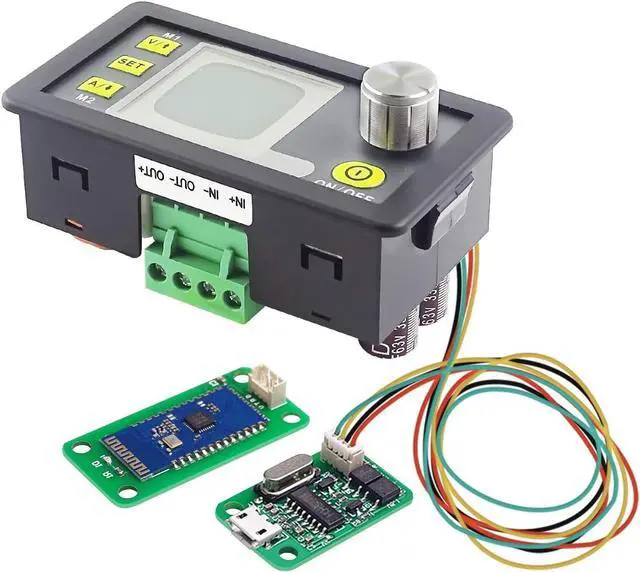

DPS5005 USB DC 6-55V to 0-50V 5A Constant DC DC Voltage Current Step-down Power Supply Module Buck Voltage Converter Voltmeter communication(DPS5005-USB-BT)

You can also set the over voltage value, over current value, over power value, screen brightness and other settings at the setting page
it is the communication version, please check the instruction to see how it works

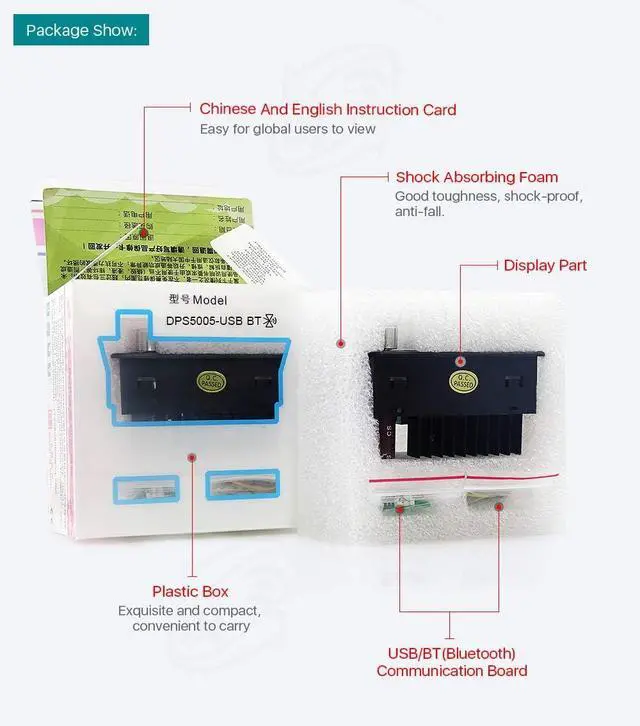

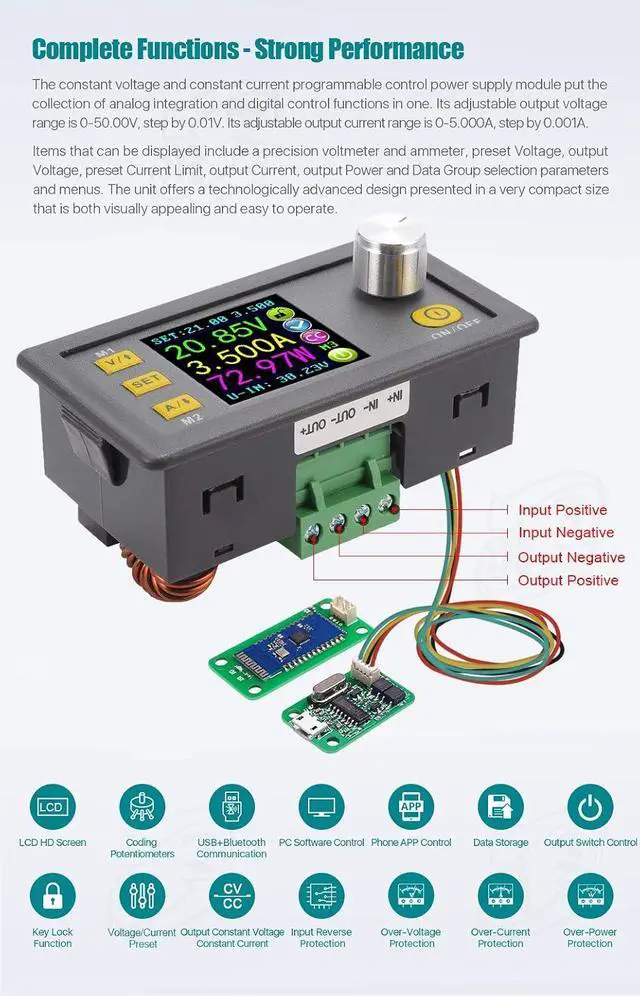

DPS5005 is No communication version, DPS5005-USB-BT is communication version. Communication verison means that the device can be connceted to PC software or APP, you can only select the one kind of connection at a time, because the communication boa can only be used alone, please be careful before you make the oer, do not oer the wrong version
our product are wildly used, you can use it in school electronic course, lab, factory or use it to repair some devices
Quality control
this power supply is 4 digit resolution, and before sending, the power supply is tested at least 3 times before sending, so you can trust the accuracy
voltage accuracy
Its adjustable output voltage range is 0- 50.00V, step by 0.01V. and make sure that the input voltage is 1. times higher than output voltage.
accuracy: ± ( 0.5 % + 3 digit)
current accuracy
Its adjustable output current range is 0- 5.000A, step by 0.001A.
accuracy: ± ( 0.5 % + 5 digits)

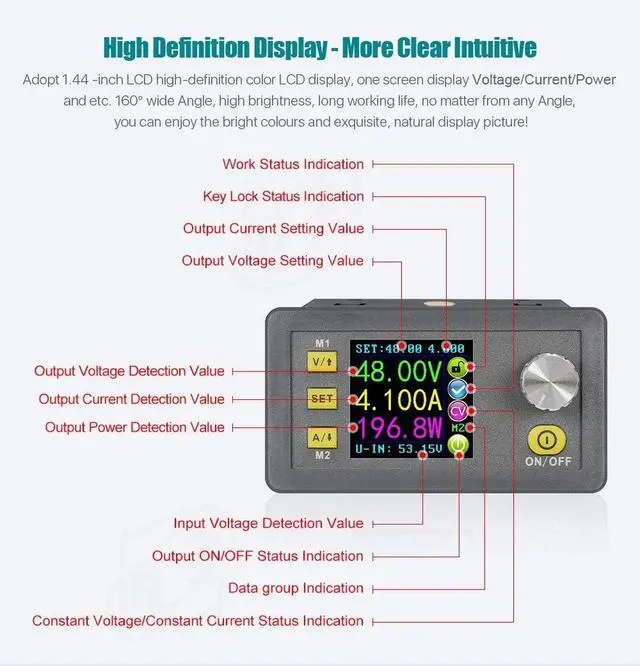

this icon will show you the work status, usually it just shows, which means working normally, when the output is not normal, it will show the corresponding icon
this icon is the output status, green means ON, red means OFF
the devices supports 10 data groups max, you can check the data group being used here

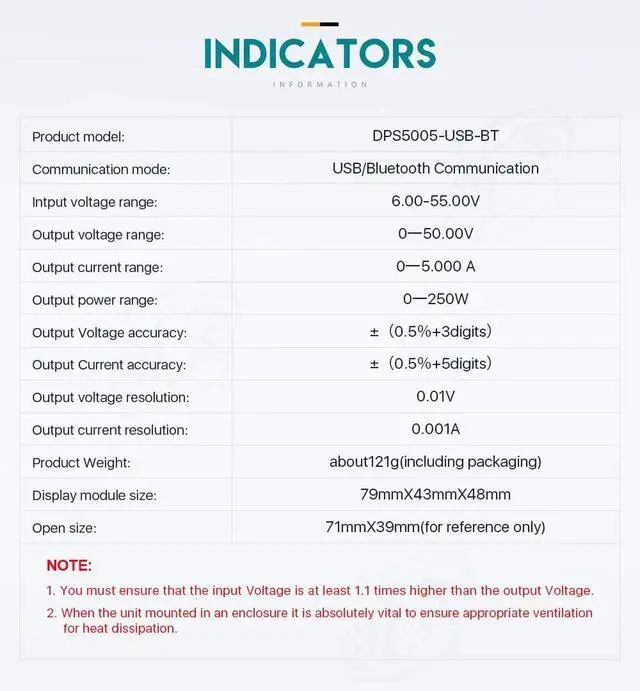

Technical Paremeter
Input voltage range: 6.00 - 55.00V Output voltage range: 0V- 50.00V
Output current: 0- 5.000A Output power range: 00.00 - 250.0W

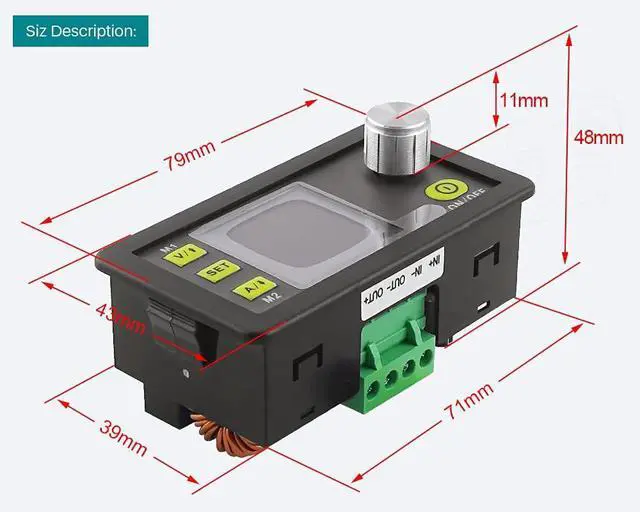

Product Weight: about 113g Product Dimension: 79*43*48 (mm) (L*W*H)
Open size: 71mm*39mm Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: ± ( 0.5 % + 3 digit)
Output Current accuracy: ± ( 0.5 % + 5 digits)
Pay attention before buying:
Compatibility Issues
There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.
There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
If the software crash on your PC or Phone, please oer none communication version, or do not buy the device to avoid dispute later.
if you connect inductive load (such as motor), the max working current is 1/3 of max current range. don't exceeds the limit.
when you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips
You must make sure that the input voltage is 1. times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
if you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uH, C is over 2200 uf.
Before buying this product, please download the upper computer software and test, if it fits your computer, you can buy
Output must be used isolated, not in series or on parallel, otherwise it will be burnt.
