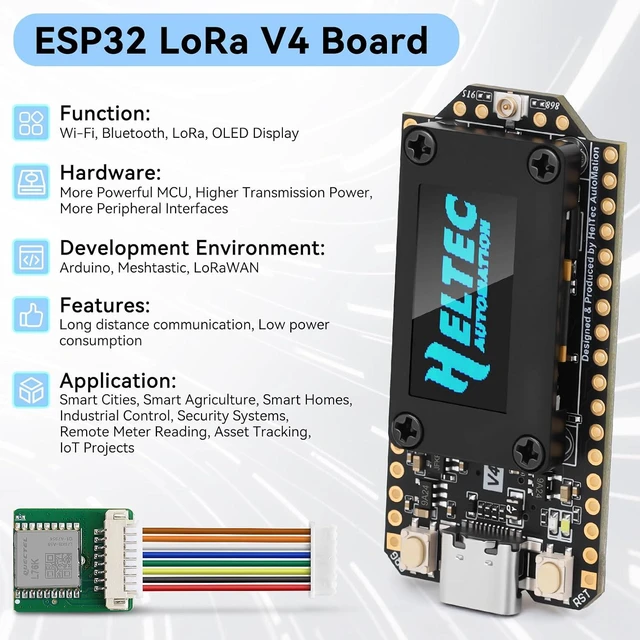

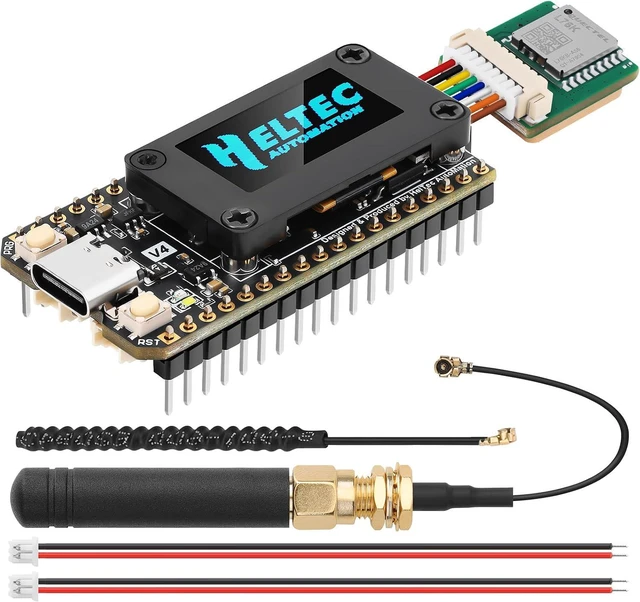

ESP32 LoRa V4 Development Board + L76 GNSS Module, Upgraded ESP32-S3 SX1262 LoRa WiFi Bluetooth, 2MB PSRAM 16MB Flash 915MHz Antenna, OLED, GPS & Solar for Arduino Meshtastic LoRaWAN

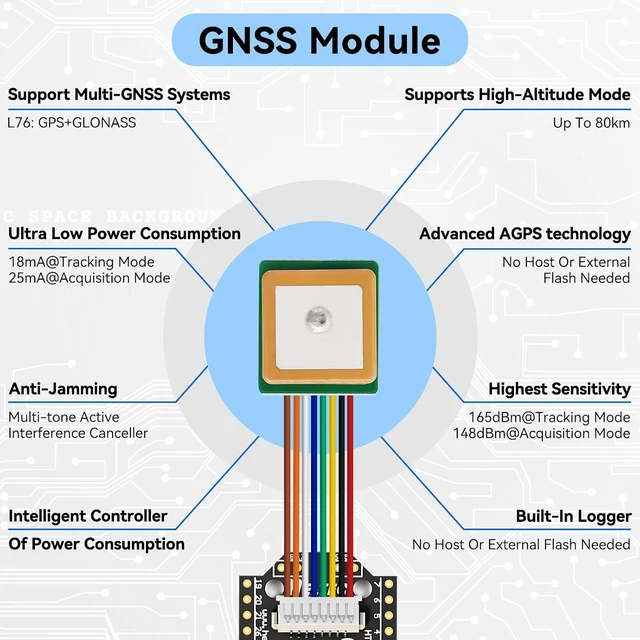

- Integrated High-Performance GNSS + LoRa for Precision Tracking: Now featuring the advanced L76 GNSS module with multi-system support (GPS, GLONASS, QZSS, SBAS) and EASY/AlwaysLocate technologies for ultra-fast cold start (<15 sec) and low-power operation (~2.6mA). Combined with upgraded ESP32-S3R2 and SX1262 LoRa chip, this ESP32 development board delivers reliable real-time location data for asset tracking, smart agriculture, and outdoor IoT deploymentsideal for engineers and makers building GPS-enabled wireless sensor networks.
- Enhanced Processing Power & Memory for Complex Applications: Powered by ESP32-S3 with 2MB PSRAM and 16MB Flash, it handles complex firmware, UI rendering, and multitasking effortlessly. The high LoRa transmission power (28dBm) and sensitivity (-137dBm) ensure long-range communication, while seamless integration with the L76 GNSS enables precise geolocation loggingperfect for industrial monitoring, environmental sensing, or mobile LoRaWAN nodes.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Full Expansion & Outdoor Readiness with
Solar & GNSS Support: Expand functionality easily with dedicated SH 1.25 -8Pin GNSS interface and SH 1.25 -2P solar panel input ( 4.4 -6V). Perfect for outdoor Meshtastic GPS trackers, solar-powered sensor networks, or off-grid environmental monitoring. Combine with a 915MHz LoRa antenna for maximum coverage.
Ultra-Low Power Design with Smart Power Management: Optimized for low-power applications, sleep mode draws less than 20A. Battery management features support lithium battery charging, overcharge protection, and seamless switching between USB and battery/solar power. It is an ideal solution for portable or remote deployments like wireless alarms, water meter reading, or mobile LoRaWAN nodes.

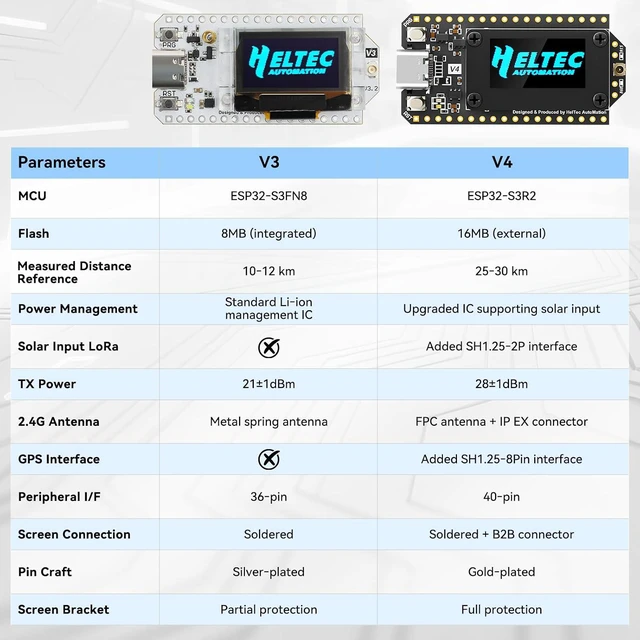

Plug-and-Play Compatibility for Rapid Prototyping: Backward compatible with ESP32 LoRa V3/V2 pinouts. Fully supports IDE, MicroPython, and ESP-IDF. Features USB Type-C with ESD protection, dual IP EX antennas (LoRa + 2.4GH z), 0.96 OLED display, and expanded headers. A top-tier development platform for IoT creators and Meshtastic users needing an all-in-one solution with built-in GPS, WiFi, Bluetooth, and LoRa connectivity.
Note: 1. The screw securing the upper left corner of the screen is a specially customized plastic screw, distinct from the other three screws. Its purpose is to avoid interfering with the 2.4GH z radio frequency and is not defective. 2. Flash the firmware first before use, otherwise the screen will be blank.
ESP32 LoRa V4 Parameters
Master Chip ESP32-S3R2 (32-bit lx7 dual core processor)
LoRa Node Chip SX1262
Frequency 433~510MHz, 863~928MHz
Max. TX Power 21±1dBm, 28±dBm
Max. Receiving sensitivity -137dBm@SF12 BW=125KHz
Wi-Fi 802.1 b/g/n, up to 150Mbps
Bluetooth Bluetooth LE, Bluetooth 5, Bluetooth Mesh
Hardware Resource 7*ADC+ 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 16MB Flash, 2MB PSRAM

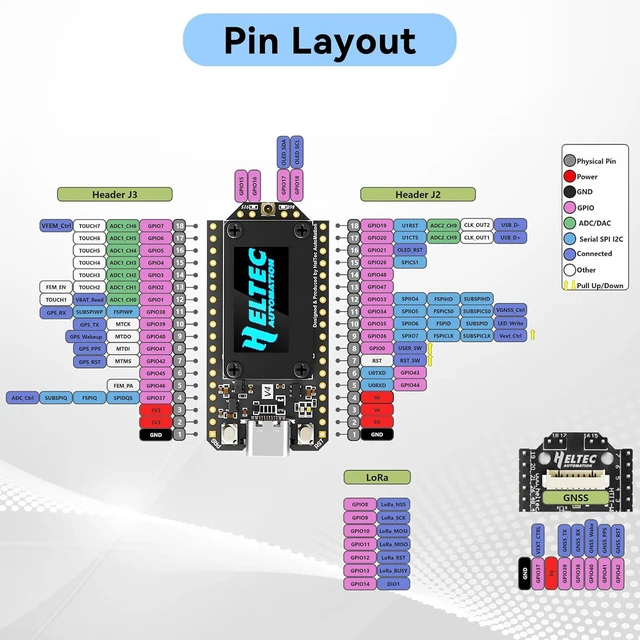

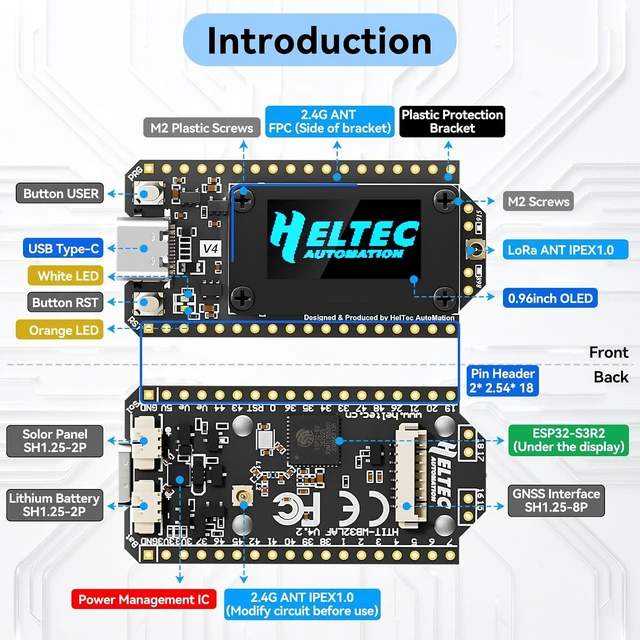

Interface USB Type-C; SH 1.25 -2P lithium battery interface; SH 1.25 -2P solar panel interface; SH 1.25 -8Pin GPS interface; 2*IPEX 1.0 ANT(LoRa& 2.4G ); 2*18* 2.54 Header Pins, 2*2* 2.54 Header Pins
Power Supply 5V@USB/Solar, 3.3 - 4.4V @Battery
Operating Temperature -20 ~ 70
Solar & GNSS Support: Expand functionality easily with dedicated SH 1.25 -8Pin GNSS interface and SH 1.25 -2P solar panel input ( 4.4 -6V). Perfect for outdoor Meshtastic GPS trackers, solar-powered sensor networks, or off-grid environmental monitoring. Combine with a 915MHz LoRa antenna for maximum coverage.
Ultra-Low Power Design with Smart Power Management: Optimized for low-power applications, sleep mode draws less than 20A. Battery management features support lithium battery charging, overcharge protection, and seamless switching between USB and battery/solar power. It is an ideal solution for portable or remote deployments like wireless alarms, water meter reading, or mobile LoRaWAN nodes.
Plug-and-Play Compatibility for Rapid Prototyping: Backward compatible with ESP32 LoRa V3/V2 pinouts. Fully supports IDE, MicroPython, and ESP-IDF. Features USB Type-C with ESD protection, dual IP EX antennas (LoRa + 2.4GH z), 0.96 OLED display, and expanded headers. A top-tier development platform for IoT creators and Meshtastic users needing an all-in-one solution with built-in GPS, WiFi, Bluetooth, and LoRa connectivity.
Note: 1. The screw securing the upper left corner of the screen is a specially customized plastic screw, distinct from the other three screws. Its purpose is to avoid interfering with the 2.4GH z radio frequency and is not defective. 2. Flash the firmware first before use, otherwise the screen will be blank.
ESP32 LoRa V4 Parameters
Master Chip ESP32-S3R2 (32-bit lx7 dual core processor)
LoRa Node Chip SX1262
Frequency 433~510MHz, 863~928MHz
Max. TX Power 21±1dBm, 28±dBm
Max. Receiving sensitivity -137dBm@SF12 BW=125KHz
Wi-Fi 802.1 b/g/n, up to 150Mbps
Bluetooth Bluetooth LE, Bluetooth 5, Bluetooth Mesh
Hardware Resource 7*ADC+ 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 16MB Flash, 2MB PSRAM
Interface USB Type-C; SH 1.25 -2P lithium battery interface; SH 1.25 -2P solar panel interface; SH 1.25 -8Pin GPS interface; 2*IPEX 1.0 ANT(LoRa& 2.4G ); 2*18* 2.54 Header Pins, 2*2* 2.54 Header Pins
Power Supply 5V@USB/Solar, 3.3 - 4.4V @Battery
Operating Temperature -20 ~ 70
