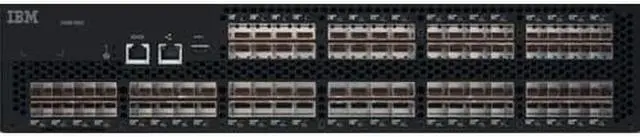

IBM SAN80B-4 System Storage Fibre Channel Switch
- Fibre Channel Switch
+
+
Overview
Specs
Reviews
General InformationManufacturer: IBM CorporationManufacturer
Part Number: 2498-B80Manufacturer
Website Address:
http: //www. ibm.
comBrand Name: IBM
Product Model: SAN80B-4Product
Name: SAN80B-4 System Storage Fibre
Channel SwitchMarketing Information: The IBM System Storage SAN80B-4 SAN fabric switch provides 48, 64 or 80 active ports and is designed for high performance with 8 Gbps link speeds and backward compatibility to support links running at 4, 2 and 1 Gbps link speeds. High availability features make it suitable for use as a core switch in mid-range environments or as an edge-switch in enterprise environments where a wide range of SAN infrastructure simplification and business continuity configurations are possible. IBM Power Systems, System x, System z and many non-IBM disk and tape devices are supported in many common operating system (OS) environments. Optional features provide specialized distance extension, dynamic routing between separate or heterogeneous fabrics, link trunking, IBM FICON, Server Application Optimization (SAO), performance monitoring and advanced security capabilities.
Product Type: Fibre Channel SwitchInterfaces/PortsNumber of Fibre
Channel Ports: 48Media
& PerformanceData Transfer Rate: 8 Gbit/sPower DescriptionRedundant
Power Supply: YesPhysical
CharacteristicsCompatible Rack Unit:
2UHeight: 3.4"W
idth: 16.9"D
epth: 24"Weight
(Approximate): 34.39 lb
Part Number: 2498-B80Manufacturer
Website Address:
http: //www. ibm.
comBrand Name: IBM
Product Model: SAN80B-4Product
Name: SAN80B-4 System Storage Fibre
Channel SwitchMarketing Information: The IBM System Storage SAN80B-4 SAN fabric switch provides 48, 64 or 80 active ports and is designed for high performance with 8 Gbps link speeds and backward compatibility to support links running at 4, 2 and 1 Gbps link speeds. High availability features make it suitable for use as a core switch in mid-range environments or as an edge-switch in enterprise environments where a wide range of SAN infrastructure simplification and business continuity configurations are possible. IBM Power Systems, System x, System z and many non-IBM disk and tape devices are supported in many common operating system (OS) environments. Optional features provide specialized distance extension, dynamic routing between separate or heterogeneous fabrics, link trunking, IBM FICON, Server Application Optimization (SAO), performance monitoring and advanced security capabilities.
Product Type: Fibre Channel SwitchInterfaces/PortsNumber of Fibre
Channel Ports: 48Media
& PerformanceData Transfer Rate: 8 Gbit/sPower DescriptionRedundant
Power Supply: YesPhysical
CharacteristicsCompatible Rack Unit:
2UHeight: 3.4"W
idth: 16.9"D
epth: 24"Weight
(Approximate): 34.39 lb
