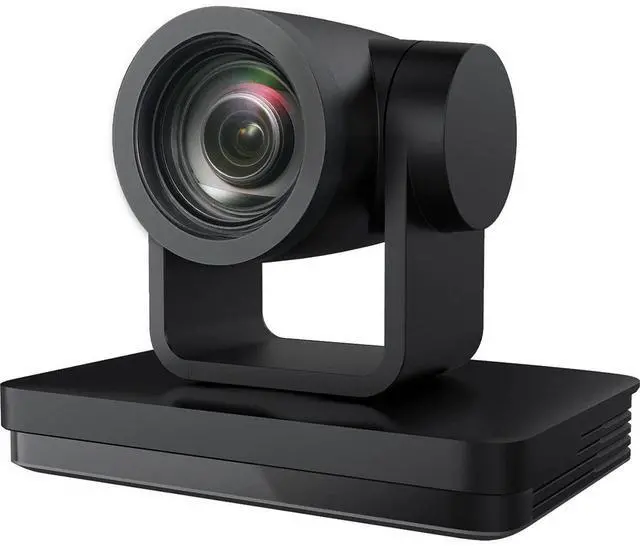

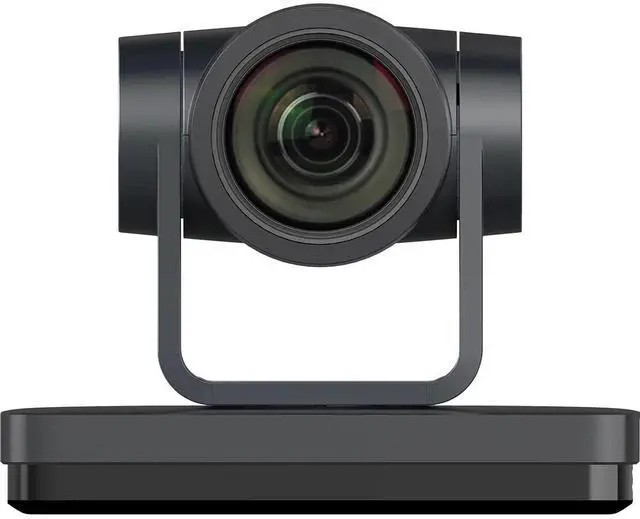

DVDO C4 Full HD 3G-SDI/HDMI/USB/IP 20x PTZ Camera, Black

DVDO-C4-1-B is a high performance Full HD PTZ camera with a 20X optical zoom and a horizontal FOV of 56 Degree. It features advanced AI human auto-tracking that detects the presenter's position and provides both presenter and zone tracking options. It uses a low noise 1/ 2.8" CMOS sensor, offering vivid and clear video with a strong sense of depth and fantastic color rendition. It provides advanced connectivity with simultaneous HDMI, 3G-SDI, USB 3.0 & LAN outputs as well as PoE support. Applications Education Lecture Capture Houses of Worship Healthcare Tele-medicine Courtrooms Broadcasting Webcasting Live events Video Conferencing Command & Control CentersFeaturesFull HD Resolution1/ 2.8 inch high quality CMOS sensor.

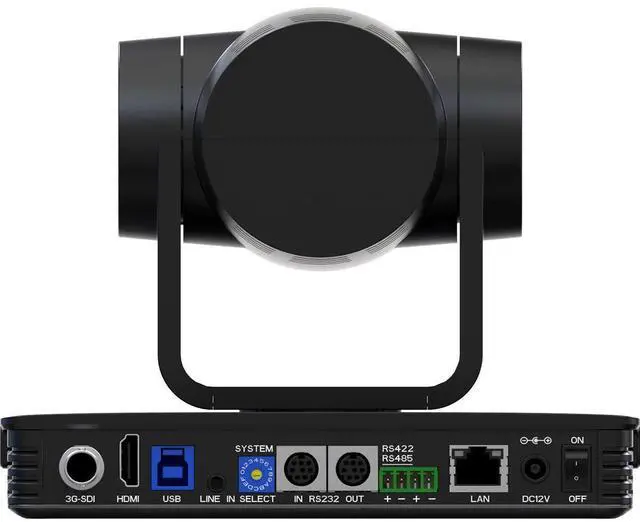

Resolution is up to 1920x1080 with frame rate up to 60 fps. Multiple Optical Zoom Lens20X optical zoom lens. Leading Auto Focus TechnologyFast, accurate and stable auto focusing technology. Low Noise and High SNRSuper high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity. Multiple video output interfacesHDMI, SDI, USB 3.0, LAN. Simultaneously outputAudio and video signal via HDMI, SDI and LAN. LAN interface supports PoE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080p60 format.

Multiple Audio/Video Compression StandardsSupport H. 264/H. 265 video compression, up to 1920x1080 resolution 60 fps; support AAC, MP3 and G. 711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequency. USB 3.0 Support Dual Coding StreamSupport main stream and sub-stream, and simultaneous output; support YUY2, MJPEG, H. 264, NV12, H. 265 video coding format. Built-in Gravity SensorSupport PTZ auto-flip function and easy installation. Multiple Network ProtocolSupport ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA & RTMPS protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode.

Control InterfaceRS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading. Multiple Control ProtocolSupport VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols. Quiet Pan / Tilt MovementWith high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth. Various remote controlsUsers can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use.

AI Human DetectionBuilt-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the environment. Multiple ApplicationOnline Education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
