Description:
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265+ Video Compression

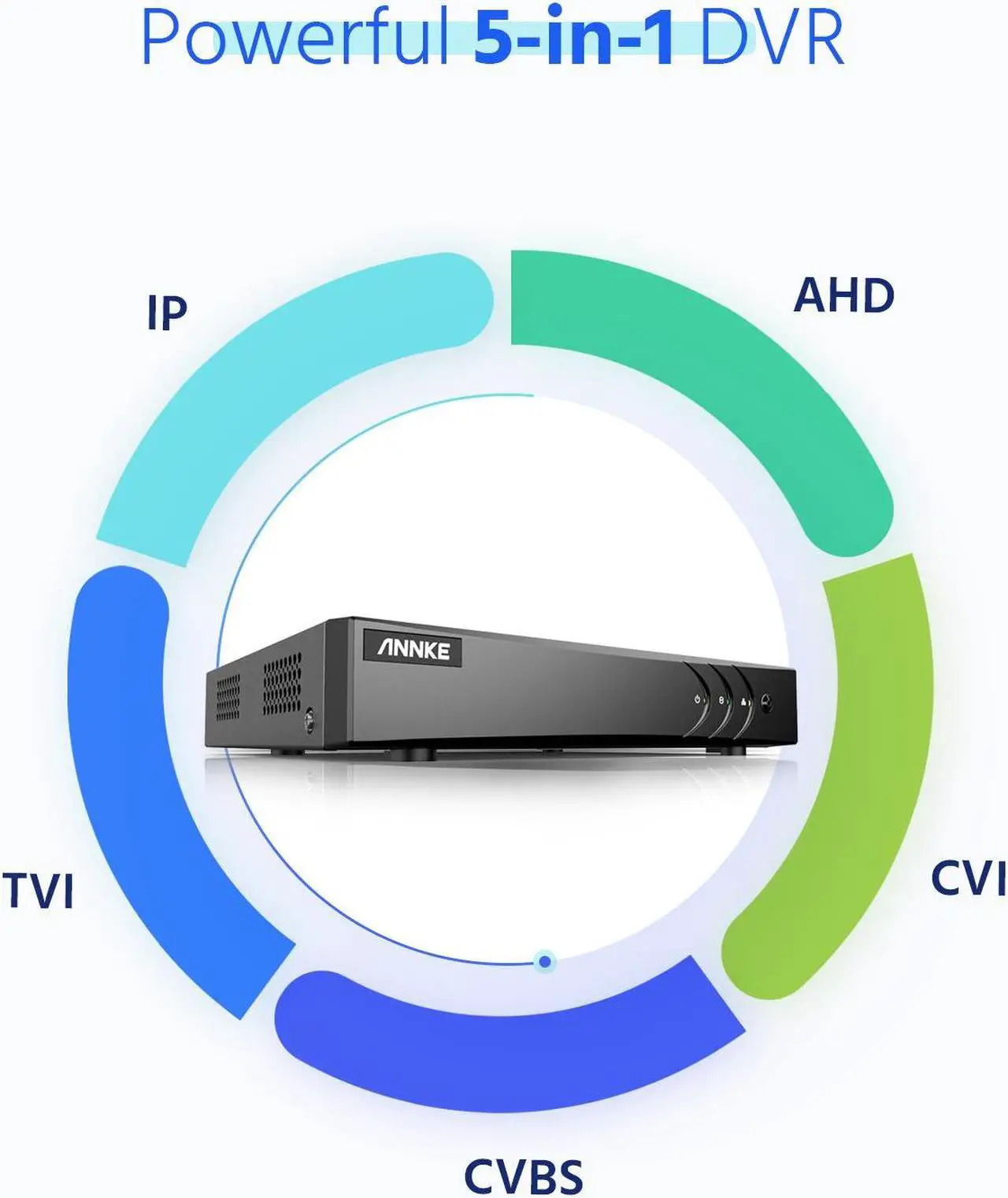

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

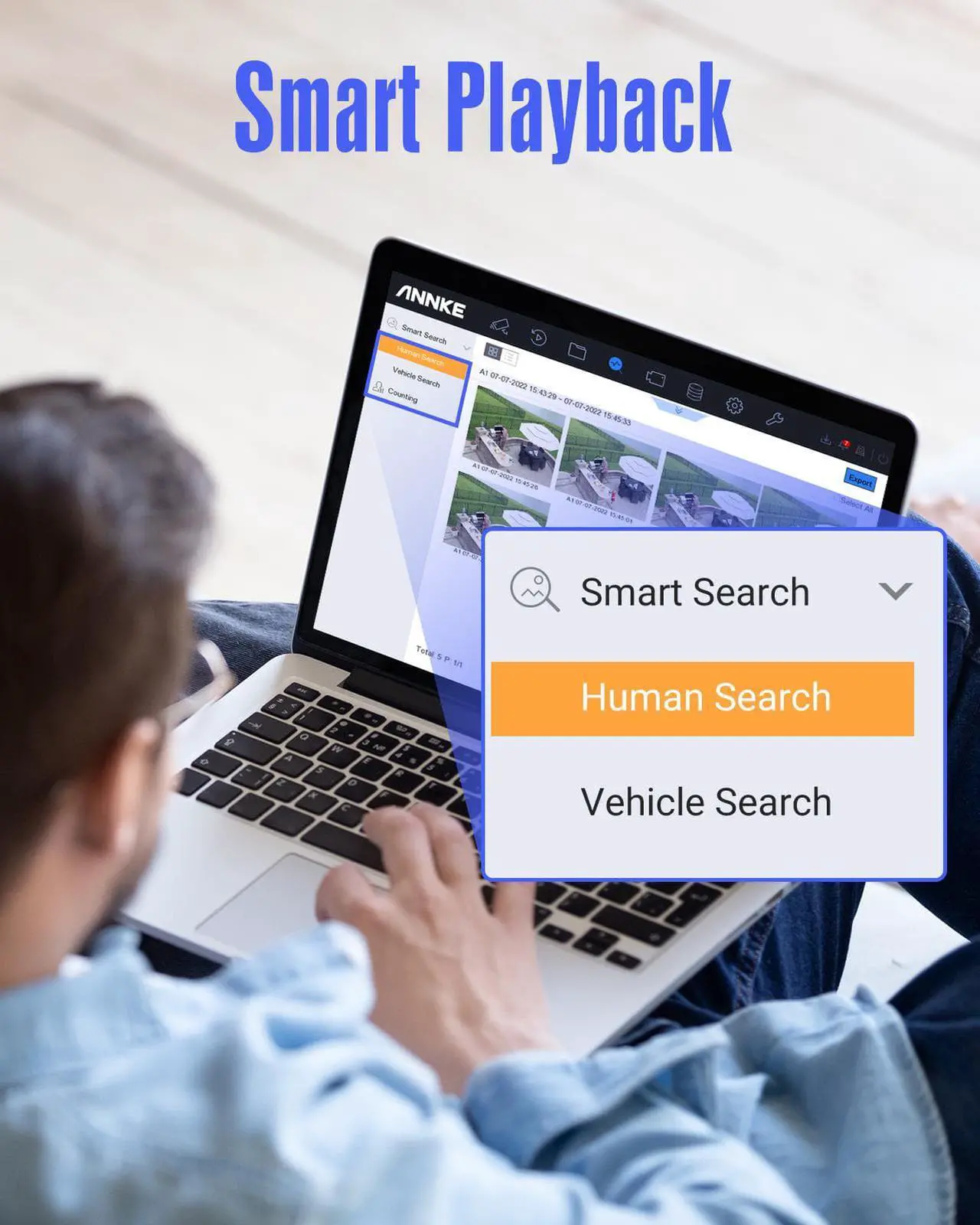

· Quick search by object or event type
· Audio via coaxial cable"

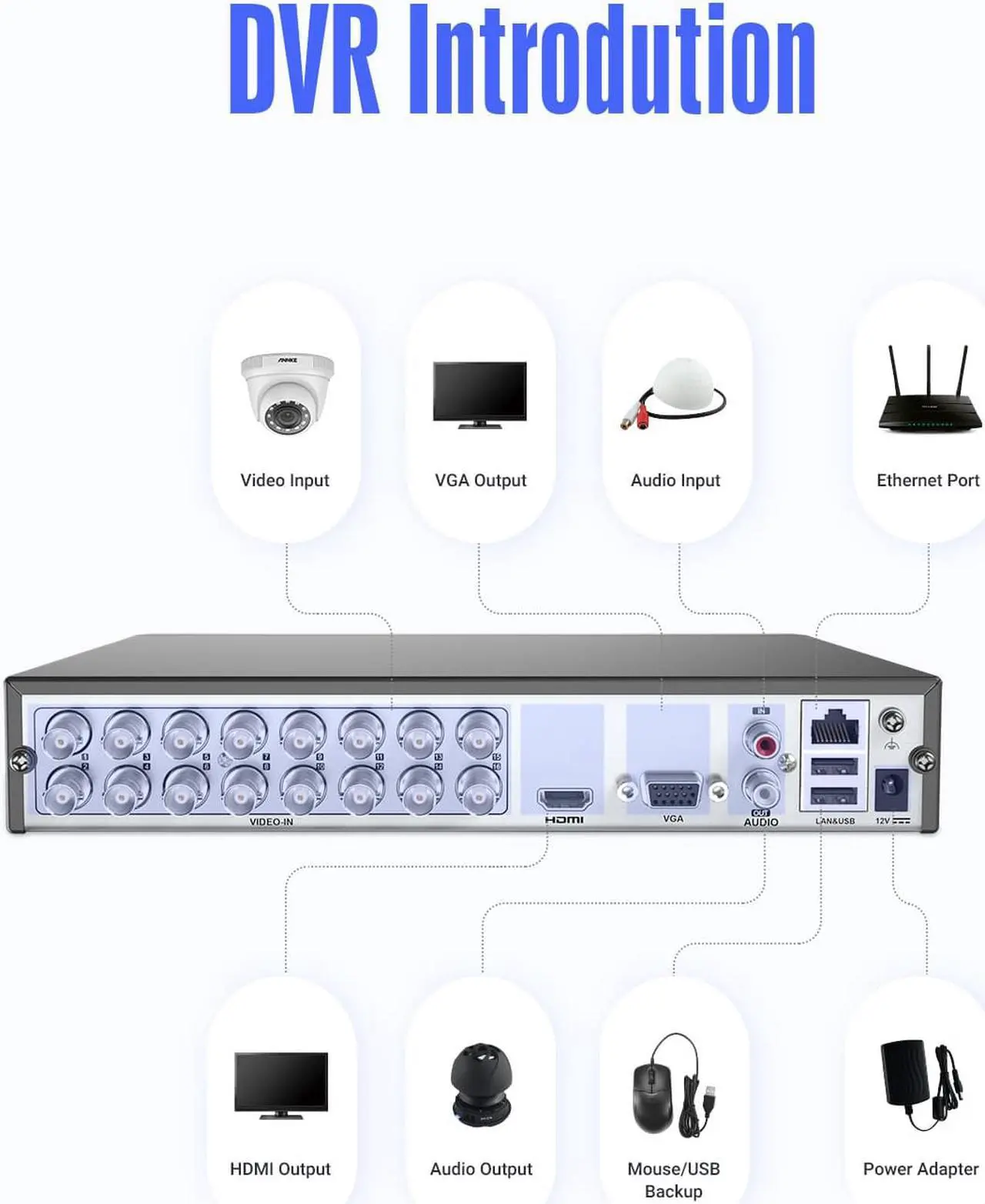

Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265+
Video Input: 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 16-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: "Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP: Video Input: 6MP/5MP/4MP/3MP/1080P/720P"
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 4-ch
Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 20W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1.2 kg ( 2.6 lb) (without HDD)
Packaging Contents
DVR: 1
USB Mouse: 1
Power Adapter: 1
1M network cable: 1
1.8M HDMI cable: 1
User's Manual For DVR: 1
