| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| IP Video Input |
32 Channel (Include 16 Channel PoE) |
| Video Output |
HDMI up to 4K, VGA up to 1080p, CVBS |
| Video output mode |
HDMI/VGA independent output |
| Audio Input/Output |
1/1 RCA |
| Incoming/outgoing Bandwidth |
256/160 Mbps |
| Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
| Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
| Max Playback Channel |
16CH |
| Motion Detection 2.0 by NVR |
"All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm" |
| Motion Detection 2.0 by Camera |
All channels |
| Facial Recognition |
Face picture comparison, human face capture, face picture search |
| Decoding Capability |
"AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)" |
| Remote Connection |
128 |
| Smart Event |
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA(Need IP camera support) |
| HDD |
4 SATA Interface |
| HDD Capacity |
Up to 10 TB Capacity for Each HDD(40 TB total) |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE |
16, IEEE 802.3af/at, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Alarm Input/Output |
16/4 |
| Serial Interface |
2 RS-485 (Half-Duplex), 1 RS-232 |
| USB |
Front Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0 |
| Operating Power |
100-240V AC |
| Dimensions (W X H X D) |
445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight (Without Hard Disk) |
5 kg |
Up to 12MP 4K Ultra HD Stream
The ANNKE PoE NVR supports up to 12MP 4K Ultra HD live stream, video record and playback. Users can get the most crystal-clear videos 24/7 regardless day or night.
Support up to 32 PoE IP Security Cameras
The NVR has 16 PoE ports for connecting 16 network security cameras directly. By adding a PoE switch to the NVR, users can add another 16 Ethernet IP cameras to the NVR. Manage the whole system simply by accessing the NVR directly.
Top-Notch H. 265+ Video Format
The exceptional H. 265+ video format provides smooth stream and records more videos. Save more videos and take up less bandwidth. Besides H. 265+, the NVR supports all security camera video format options, including H. 265, H. 264+, H. 264 & MPEG-4.

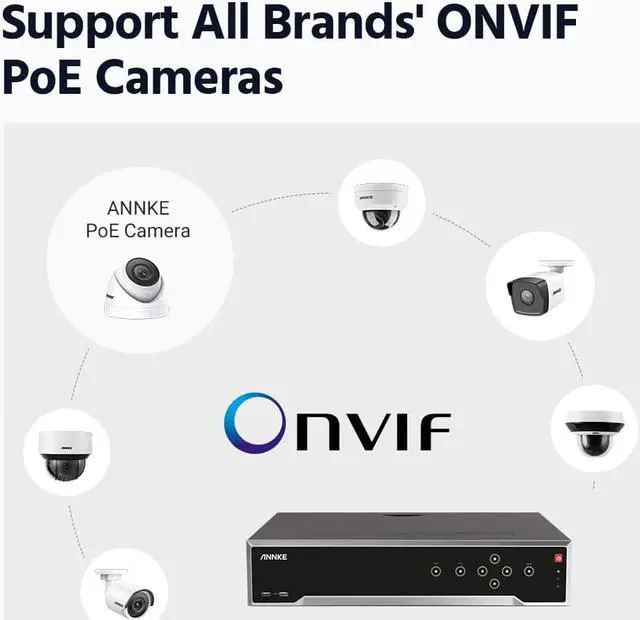

Flexible ONVIF Compatibility
The NVR, with the ONVIF compatibility, works seamlessly with ANNKE PoE security cameras and almost all brands ONVIF network surveillance cameras. Users can connect any brands PoE cameras to this NVR for unlimited integration.
Remote Access Anywhere Anytime
Control the NVR remotely with free ANNKE Client & App and a browser via smartphones, tablets, computers, when you are in the office, shopping or even traveling. Play back the recorded videos for not missing a single second during your absence.

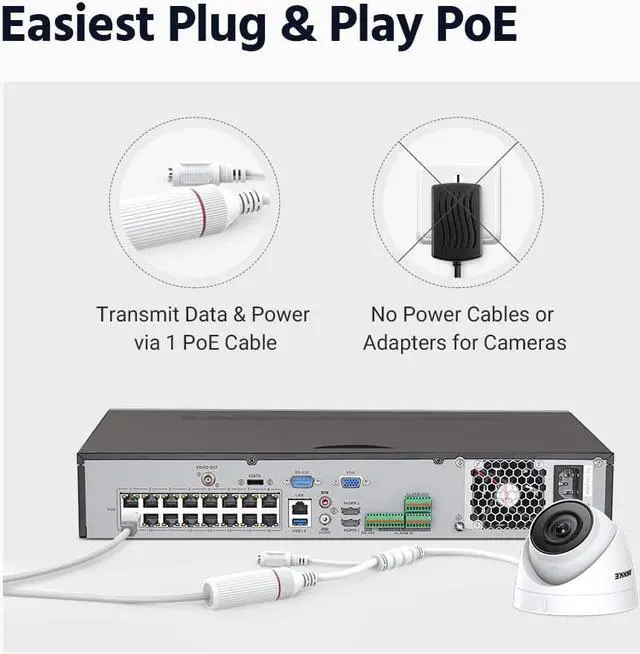

Easy Plug & Play PoE
Connect the PoE security cameras to the NVR for both power and data transmission simultaneously with just a single Ethernet cable. Get up to 1, 000 ft network connection for long-distance wiring.
Smart Search & Playback
Locate the motion-triggered videos directly with the smart search function. Replay the important motion videos directly without watching boring empty footage.
4K HDMI & 1080p VGA
Get local instant live stream at 4K resolution by connecting the NVR to a 4K TV with an HDMI cable, or enjoy up to 1080p Full HD stream by linking it to a computer monitor.
Up to 48 TB Expandable Hard Disk Drives
The powerful NVR supports up to 4 HDDs (maximum 48 TB storage space) for customers to record extremely long videos without overwriting. Capture & record important videos regardless day or night.
Specificaiton:
Video Compression: H. 264+/H. 264/H. 265/H. 265+/MPEG-4
IP Video Input: 32 Channel (Include 16 Channel PoE)
Video Output HDMI: up to 4K; VGA up to 1080p
Audio Input/Output: 1/1 RCA
Incoming Bandwidth: 256 Mbps
Max Recording Resolution: Up to 12MP
Max Playback Resolution: Up to 12MP
Max Playback Channel: 16 Channel
Max Playback Capacity: 2CH @12MP (20 fps) /4CH @8MP (25 fps)
ONVIF Protocol: Support
HDD: 4 SATA Interface
HDD Capacity: Up to 12 TB Capacity for Each HDD
Network Interface: RJ45 X1 (10/100/1000 M)
PoE: 8 Ports (IEEE 802.3 at/af)
Alarm Input/Output: 16/4
Serial Interface: 1 RS-485 (Half-Duplex), 1 RS-232
USB: Front
Panel: 2X USB 2.0;
Rear Panel: 1X USB 3.0
Operating Power: DC 48 V
Power Consumption: <20 W (Without HDD and PoE)
Working Temperature: 14 °F 131 °F/-10 °C +55 °C
