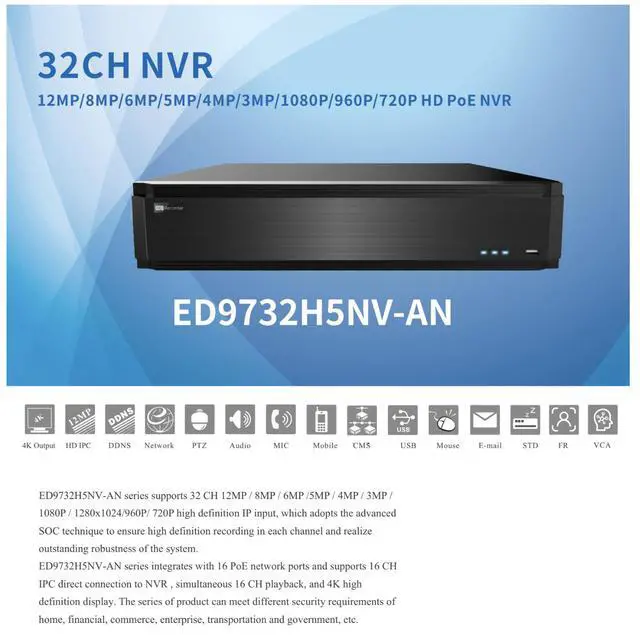

ENS Titanium ED9732H5NV-AN 32CH 4K NVR with 16 PoE Ports, 12MP Support, 8 SATA Bays up to 80TB, Face Recognition, Plate Recognition, 16CH Playback, H.265+ (No HDD)

Overview

The ENS Titanium ED9732H5NV-AN is a 32-channel 4K network video recorder with 16 built-in PoE ports, built to anchor mid-size and large surveillance deployments. It records up to 32 IP cameras at resolutions as high as 12MP, with 16 of those cameras connecting and powering directly from the NVR's own PoE ports no separate switch required for the first 16. Eight SATA bays accept drives up to 10TB each for as much as 80TB of storage, and 192 Mbps of recording bandwidth keeps high-resolution channels from choking. Onboard AI handles face detection and comparison against a database of up to 10,000 faces across 32 libraries, processing 18 pictures per second, with successful-match and stranger alarms plus map-based tracking. It also supports license plate recognition and human/vehicle classification through compatible cameras, POS text overlay for retail loss prevention, and fisheye dewarping. Dual HDMI (4K on HDMI1) plus VGA drive up to three displays, and 16 channels can be played back simultaneously with time-slice, event, tag, and smart search. Sixteen alarm inputs, four alarm outputs, RS-485 for PTZ control, dual Gigabit network ports, and two-way audio round out a recorder that scales from a single building to a full campus. ONVIF compatible with third-party cameras.

Key Features

1. 32 Channels, 12MP Support Records up to 32 IP cameras at resolutions from CIF to 12MP, with H.265S/H.265+ compression to cut storage costs dramatically.
2. 16 Built-In PoE Ports Connect and power 16 IP cameras directly from the NVR, simplifying small and mid-size installs.
3. 8 SATA Bays, up to 80TB Eight drives at up to 10TB each, plus an eSATA port for external expansion.
4. 192 Mbps Bandwidth Incoming and outgoing, sized for high-resolution multi-channel recording.
5. Onboard Face Recognition 2-channel face detection by the device with 6-channel comparison, 32 libraries, 10,000 stored faces, 18 pictures/second, plus stranger alarms and map-based tracking.
6. License Plate Recognition Supported through compatible AI cameras for gates, lots, and entry points.
7. Human & Vehicle Classification Filters false alarms from animals, weather, and shadows at the recorder level.
8. 16-Channel Simultaneous Playback With time slice, time, event, tag, and smart search, plus color-coded event timelines.
9. Dual HDMI + VGA Output 4K (3840 × 2160) on HDMI1, 1080P on HDMI2, plus VGA for up to three displays.
10. POS Integration Overlay transaction text on live view and playback for retail loss prevention.
11. Full Alarm Integration 16 alarm inputs, 4 alarm outputs, and RS-485 for PTZ or keyboard control.
12. Dual Gigabit Network Ports 2× RJ45 1000 Mbps for network redundancy or segmentation.
13. Remote Access Web client, CMS, and iOS/Android apps with P2P, NAT traversal, and QR-code setup for up to 128 users.
14. ONVIF Compatible Works with third-party IP cameras alongside ENS Titanium models.

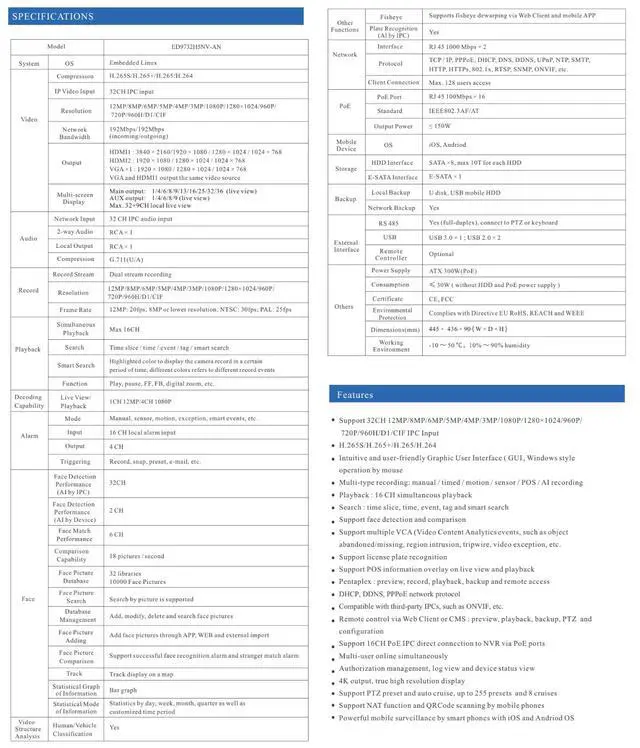

Specifications

1. Model: ED9732H5NV-AN | Type: 32-Channel PoE NVR
2. Channels: 32CH IP camera input | PoE Ports: 16× RJ45 100 Mbps (IEEE 802.3af/at)
3. PoE Power Budget: 150W total
4. Max Resolution: 12MP | Supports 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
5. Frame Rate: 12MP at 20fps; 8MP and below at 30fps (NTSC) / 25fps (PAL)
6. Compression: H.265S / H.265+ / H.265 / H.264 | Audio: G.711 (U/A)
7. Bandwidth: 192 Mbps incoming / 192 Mbps outgoing
8. Storage: 8× SATA (up to 10TB each, 80TB max) + 1× eSATA | HDDs not included
9. Playback: 16CH simultaneous | Search: time slice, time, event, tag, smart search
10. Display: Main HDMI1 up to 3840×2160; HDMI2 up to 1920×1080; VGA up to 1920×1080 (VGA mirrors HDMI1)
11. Multi-screen: Main output 1/4/6/8/9/13/16/25/32/36; AUX 1/4/6/8/9 | Max 32+9CH local live view
12. Face: 2CH detection (AI by device), 6CH comparison, 32 libraries, 10,000 face pictures, 18 pictures/sec, search by picture, stranger alarm, map tracking
13. Additional AI: License plate recognition and video structure analysis (AI by IPC), human/vehicle classification
14. Network: 2× RJ45 1000 Mbps | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, 802.1X, RTSP, SNMP, ONVIF
15. Users: up to 128 simultaneous
16. Audio: 32CH IP audio input, 1× RCA local input, 1× RCA output, 2-way audio
17. Alarm: 16CH input, 4CH output | RS-485 full duplex (PTZ / keyboard)
18. USB: 1× USB 3.0, 2× USB 2.0 | Backup: USB drive, USB HDD, network backup
19. PTZ: up to 255 presets, 8 cruises
20. Other: POS overlay, fisheye dewarping, pentaplex operation, multi-type recording (manual/timed/motion/sensor/POS/AI)
21. Power: ATX 300W (PoE model) | Consumption: 30W without HDDs or PoE load

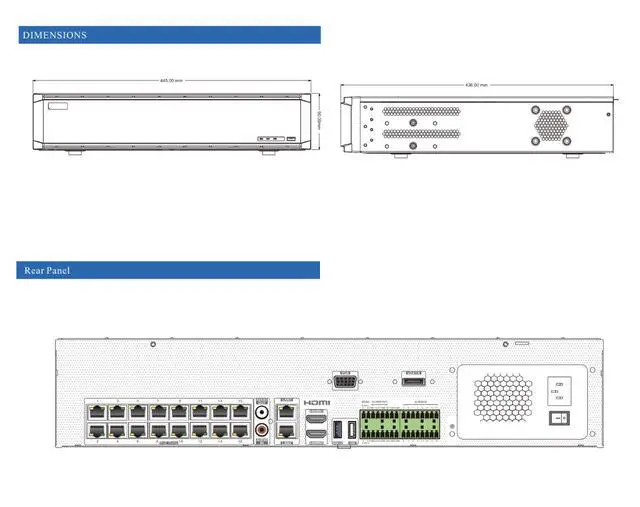

22. Dimensions: 445 × 436 × 90 mm (W × D × H)
23. Operating Environment: 10°C to 50°C (14°F to 122°F), 1090% humidity
24. OS: Embedded Linux | Mobile: iOS, Android
