ENS Titanium ED9732H5NV-16P-AN 32CH 4K PoE NVR, 16 Built-in PoE Ports, 8-Bay 80TB Max, H.265+, 4K HDMI, Face Recognition, License Plate Recognition, 16CH Playback (NO HDD)

Overview

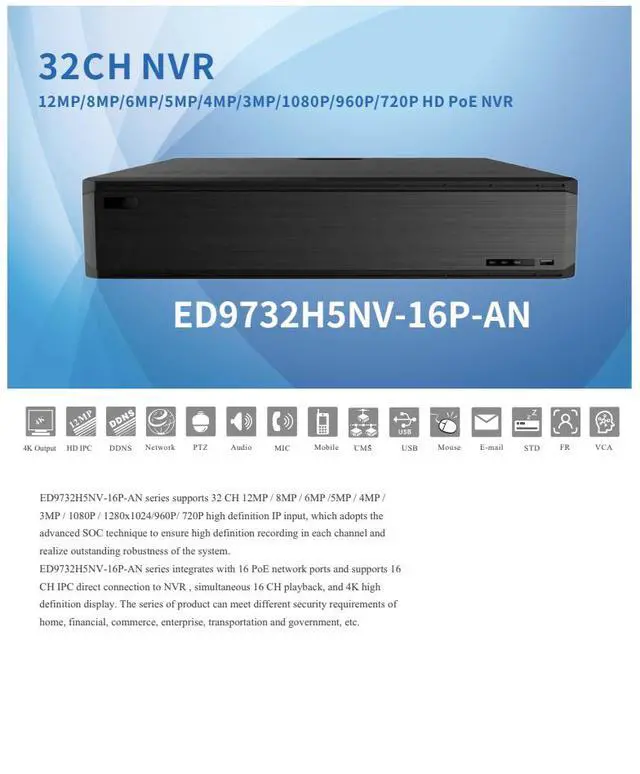

The ENS Titanium ED9732H5NV-16P-AN is a 32-channel 4K NVR with 16 PoE ports built in, so half your camera fleet plugs straight into the recorder no separate switch, no separate power supplies, no extra rack space. The remaining 16 channels come in over the network from existing switches or remote sites, giving you a clean path from a 16-camera install to 32 without replacing the head end.

It accepts IP video from 720P through 12MP at 192 Mbps in and out, recording 8MP and below at a full 30fps and 12MP at 20fps. Eight SATA bays hold up to 10TB per drive for 80TB of raw capacity, with an eSATA port for expansion. HDMI1 drives 4K at 3840 × 2160 with a second HDMI and a VGA output for auxiliary displays, supporting up to 41 live view windows across both outputs.

The AI feature set is unusually complete for a mid-range recorder. Face detection and comparison run against 32 libraries holding 10,000 images, matching across 6 channels at 18 comparisons per second, with successful-recognition and stranger alarms, map track display, and statistical reporting by day, week, month, quarter, or custom period. Two channels of face detection are processed on the recorder itself, independent of camera capability, while AI-equipped cameras pass through human/vehicle classification, video structure analysis, and license plate recognition. VCA events include abandoned and missing object detection, region intrusion, tripwire, and video exception. POS text overlay on live view and playback makes it a practical fit for retail.

Sixteen alarm inputs and four outputs, full-duplex RS485 for PTZ and keyboard control, dual gigabit uplinks, and support for up to 128 client connections round out a compact 445 × 436 × 90 mm chassis running embedded Linux.

Key Features

16 Built-In PoE Ports Connect up to 16 cameras directly to the recorder; IEEE 802.3af/at with a 150W total power budget across all ports.

32 Channels at up to 12MP 16 via PoE, 16 more over the network, with 192 Mbps of incoming and outgoing bandwidth.

8 SATA Bays, 80TB Maximum Up to 10TB per drive, plus an eSATA port for external expansion.

4K HDMI Output 3840 × 2160 main output plus a second HDMI and VGA for auxiliary monitors; up to 41 live view windows combined.

16-Channel Simultaneous Playback Review multiple angles of the same incident side by side.

Face Recognition 32 libraries, 10,000 stored images, 18 comparisons per second across 6 channels, with recognition and stranger alarms.

Onboard AI Processing 2 channels of face detection handled by the recorder, independent of camera capability.

License Plate Recognition Passed through from AI-equipped cameras.

Video Structure Analysis Human and vehicle attribute extraction for searchable, filterable review.

VCA Events Abandoned and missing object detection, region intrusion, tripwire, and video exception.

POS Integration Transaction text overlaid on live view and playback for retail loss prevention.

Smart Search Time slice, time, event, tag, and smart search with color-coded event types on the timeline.

H.265S / H.265+ Compression Substantially lower bitrate and storage consumption than H.264 at equivalent quality.

16 Alarm Inputs, 4 Outputs With triggering to record, snapshot, preset, and email.

Pentaplex Operation Preview, record, playback, backup, and remote access simultaneously.

ONVIF Compatible Works with third-party IP cameras alongside Titanium models.

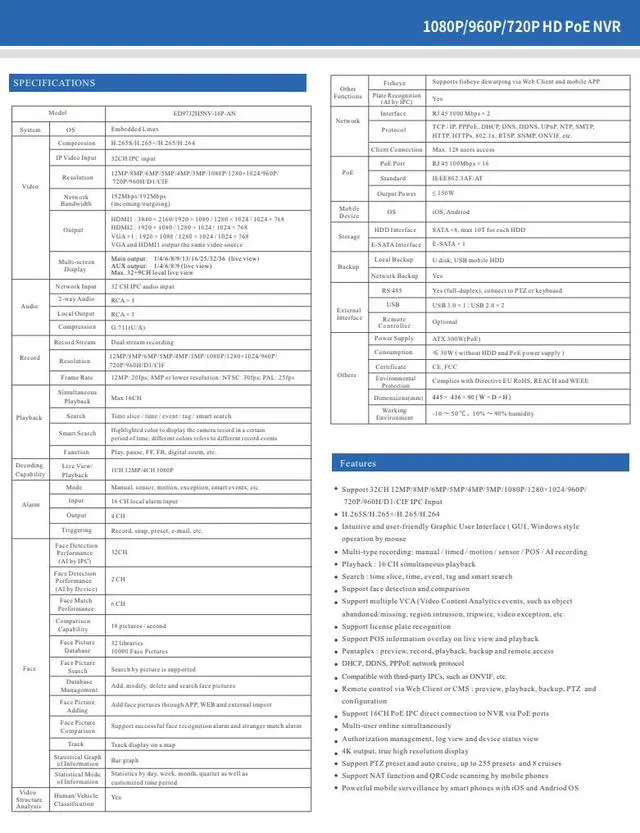

Specifications

Model: ED9732H5NV-16P-AN | Type: 32-Channel PoE Network Video Recorder

Operating System: Embedded Linux

IP Video Input: 32 channels

PoE Ports: 16× RJ45 100 Mbps | IEEE 802.3af/at | Total output power 150W

Network Bandwidth: 192 Mbps incoming / 192 Mbps outgoing

Input Resolutions: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF

Compression: H.265S / H.265+ / H.265 / H.264

Recording Frame Rate: 12MP at 20fps | 8MP and below at 30fps (NTSC) / 25fps (PAL)

Recording Stream: Dual stream

Video Output: HDMI1 up to 3840×2160 | HDMI2 up to 1920×1080 | VGA up to 1920×1080 (mirrors HDMI1)

Multi-Screen Display: Main output up to 36 windows | AUX output up to 9 | 41 maximum combined

Playback: 16 channels simultaneous

Decoding: 1CH 12MP or 4CH 1080P

Search: Time slice, time, event, tag, smart search with color-coded event display

Face Detection (AI by camera): 32CH | Face Detection (AI by device): 2CH

Face Match: 6CH | Comparison: 18 pictures/second | Database: 32 libraries, 10,000 images

Face Functions: Recognition and stranger alarms, search by picture, map track display, bar graph statistics by day/week/month/quarter/custom

Human/Vehicle Classification: Supported | Video Structure Analysis: Supported

Plate Recognition: Supported via AI cameras

Other Analytics: Abandoned/missing object, region intrusion, tripwire, video exception, fisheye dewarping (web client and mobile app)

Audio: 32CH network input | 1× RCA local input | 1× RCA output | Two-way audio | G.711 (U/A)

Alarm: 16 inputs, 4 outputs | Triggers record, snapshot, preset, email

Storage: 8× SATA (max 10TB per drive) | 1× eSATA

Backup: USB flash drive, USB HDD, network backup

Network: 2× RJ45 1000 Mbps | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, 802.1X, RTSP, SNMP, ONVIF | NAT and QR code mobile setup

Client Connections: Up to 128 users | iOS and Android mobile apps | Web client and CMS

Serial: RS485 full-duplex (PTZ/keyboard)

PTZ: Up to 255 presets, 8 cruises

Ports: 1× USB 3.0, 2× USB 2.0 | Remote controller optional

Power: ATX 300W (PoE model) | Consumption 30W without HDDs and PoE load

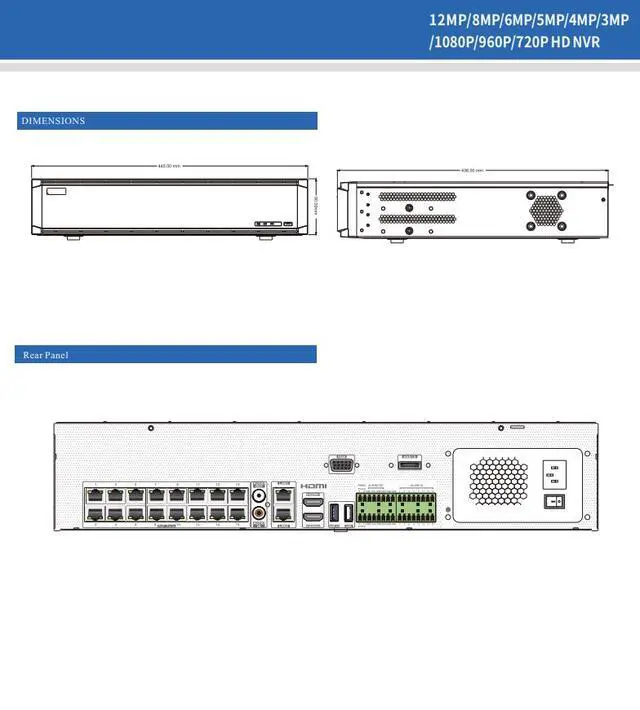

Dimensions: 445 × 436 × 90 mm (W × D × H)

Operating Environment: -10°C to 50°C, 10%90% RH
