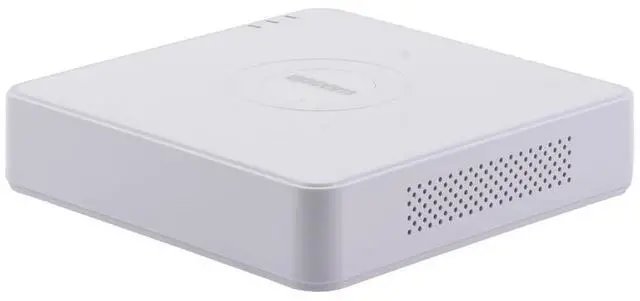

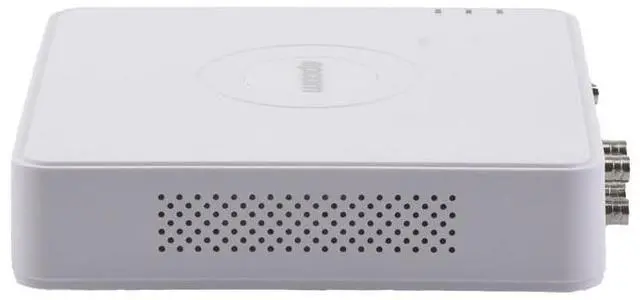

Epcom S16-TURBO-G3 DVR 16 Channels 1080p TurboHD + 2 Channels IP

What is HD-TVI 1080P Lite?

Allows 720P DVRs to add 1080P (2 Megapixel) HD-TVI TurboHD and HD-CVI cameras (other manufacturers) with 960 x 1080 resolution. Remember that Full HD is 1920 x 1080 and that is why the DVR will not be able to reach to record to Full HD. With this advantage, we can use motorized lens TURBOHD cameras to move the lens remotely.

Main Features:

1. Turbo HD 1080p Lite Ver. 3.0
2. Support of 5 technologies: HD-TVI / Analogic / CVI / AHD / IP.
3. 1 Audio Input / 1 Audio Output (RCA conector).
4. Remote access: PC (WINDOWS / MAC), Smart Phone (iPhone, iPad, Android).
5. Compatibility with Chrome browser (IE tab), Safari, Internet Explorer.
6. Multi-site client software with up to 64 channels (iVMS-4200).
7. Compatible with Hik-Connect P2P.
8. Supports SYSCOM / DynDNS / No-IP DDNS service.

Compression and Resolution:

1. H.264 + / H.264.
2. Supports 16 TURBOHD / analog channels + 2 IP channels = 18 channels in total.

Support Technologies:

1. HD-TVI: 1080p Lite / 720p @ 12IPS.
2. CVBS: WD1 @ 30IPS.
3. AHD: 1080p Lite / 720p @ 12IPS.
4. CVI: 1080p Lite / 720p @ 12IPS.
5. IP: 1 Megapixel (2 channels).
6. Recording and Display Functions
7. Multi-zone movement detection.
8. Digital zoom in visualization and recording.
9. Supports multiple types of recording, including real-time, manual recording, video sensor, external alarm, video sensor and alarm, video sensor or alarm
10. A smart recording search by motion detection.
11. SDK and demo codes are provided to decrease application development time.
12. Recording with automatic overwrite.
13. Main stream: 1080p Lite / 720p / WD1 / 4CIF.
14. Substream: CIF / QCIF.

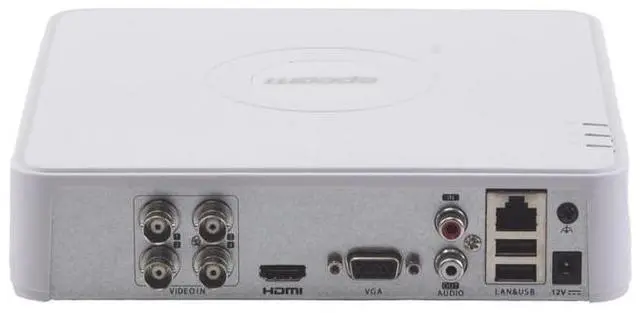

Interfaces Inputs / Output

1. Full HD HDMI and VGA video output: simultaneous output.
2. Audio input: 1 (RCA, 2.0 Vp-p, 1K).
3. Audio output: 1 (RCA, 2.0 Vp-p, 1K).
4. Alarm output: N / A.
5. USB interface: 2 rear (2.0) port.
6. Network interface: 1 ports (RJ-45 10/100 Mbps).
7. Hard disk capacity: 1 up to 6TB.

Networks Functions:

1. Protocols: TCP / IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP , HTTPS.
2. Supports Double streaming.

Physical and Electrical Features:

1. Power supply: 12 Vdc (source included 4 pins).
2. Power consumption without hard disk: 8 Watts.
3. Operating temperature: 14 - 131ºF (-10 - 55 ºC).
4. Dimensions: 7.87 x 7.87 x 1.77" (200 × 200 × 45 mm) (W × D × H).
5. Weight: 1.76 lb (800 g) without hard disk.

Warranty: 5 years

HARD DISK IS NOT INCLUDED!
