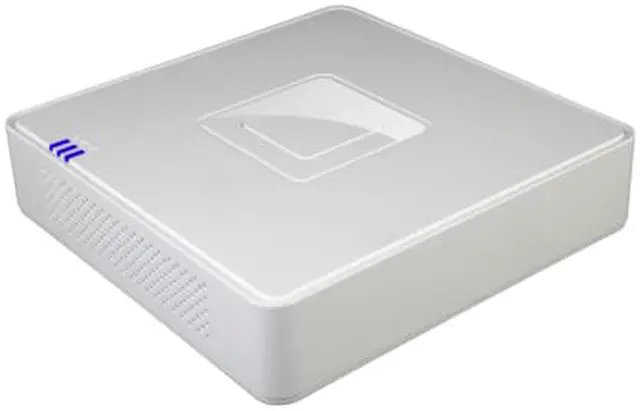

Compact Size 4CH 960H Realtime Network DVR system, VGA, and BNC output Barebone
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Compact Size 4CH 960H Realtime DVR system, VGA, and BNC output Barebone

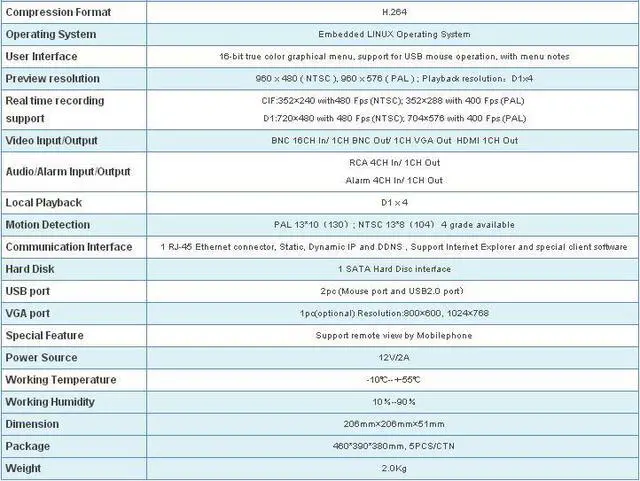

Audio Input/Output: RCA 2CH In/ 1CH Out
Compression Method: H.264
Real time recording support:
CIF:352×240 with480 Fps (NTSC); 352×288 with 400 Fps (PAL)
D1:720×480 with 480 Fps (NTSC); 704×576 with 400 Fps (PAL)

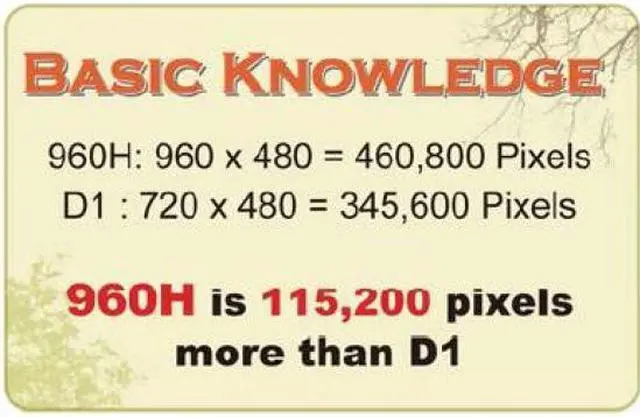

Preview resolution: 960 x 480 ( NTSC ), 960 x 576 ( PAL ) ; Playback *resolution: D1 x 4
Hexaplex operation simultaneously: Preview, recording, playback, and *network live, backup, playback
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
Remote Control, PTZ, RS485 x 1, 2 × USB, 1 × IR Controller
1 SATA Hard Disk interface
Backup: USB2.0 and Network
Support remote view by Mobilephone

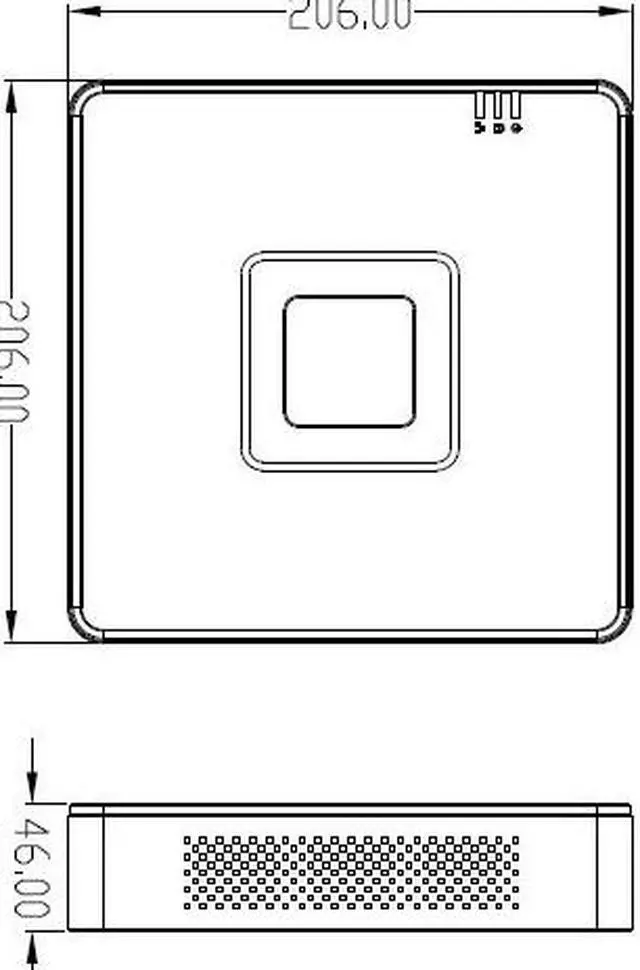

Dimensions (L×W×H): 206×206mm×51mm, weight: 2.0kg
NO HDD
Audio Input/Output: RCA 2CH In/ 1CH Out
Compression Method: H.264
Real time recording support:
CIF:352×240 with480 Fps (NTSC); 352×288 with 400 Fps (PAL)
D1:720×480 with 480 Fps (NTSC); 704×576 with 400 Fps (PAL)
Preview resolution: 960 x 480 ( NTSC ), 960 x 576 ( PAL ) ; Playback *resolution: D1 x 4
Hexaplex operation simultaneously: Preview, recording, playback, and *network live, backup, playback
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
Remote Control, PTZ, RS485 x 1, 2 × USB, 1 × IR Controller
1 SATA Hard Disk interface
Backup: USB2.0 and Network
Support remote view by Mobilephone
Dimensions (L×W×H): 206×206mm×51mm, weight: 2.0kg
NO HDD
