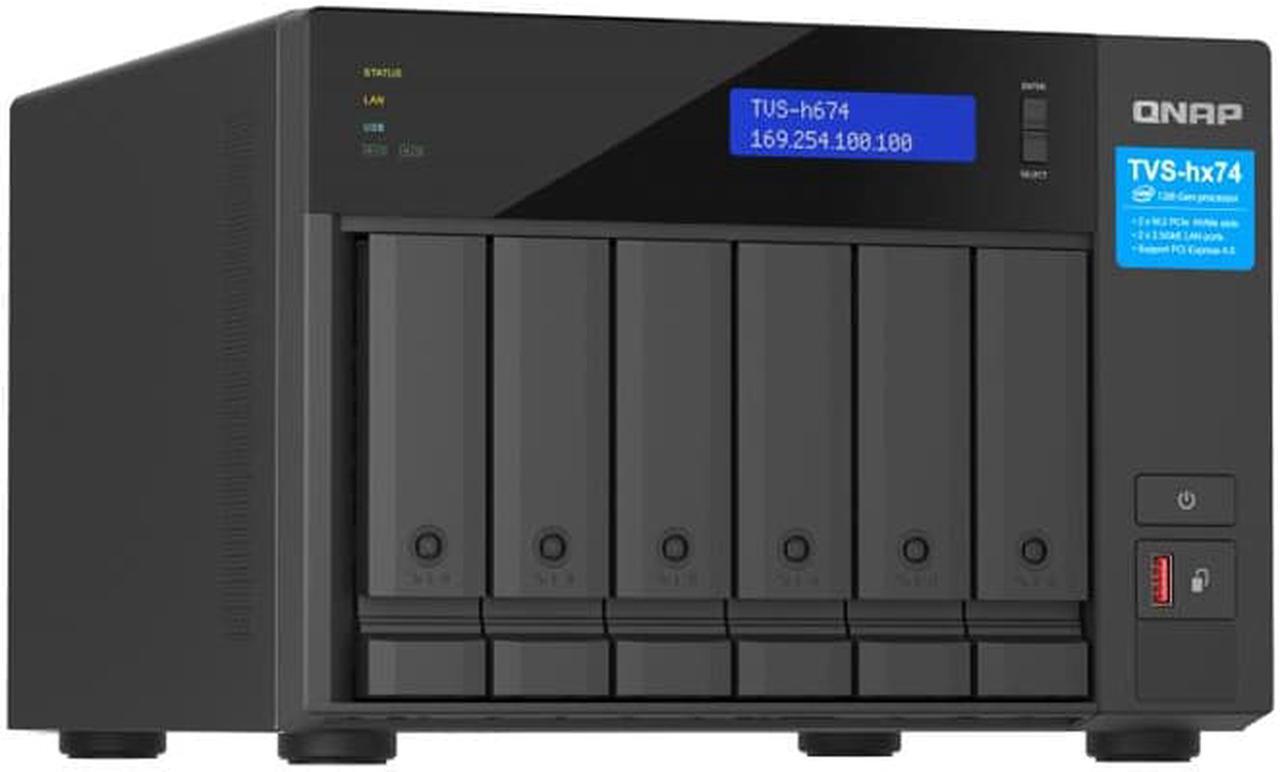

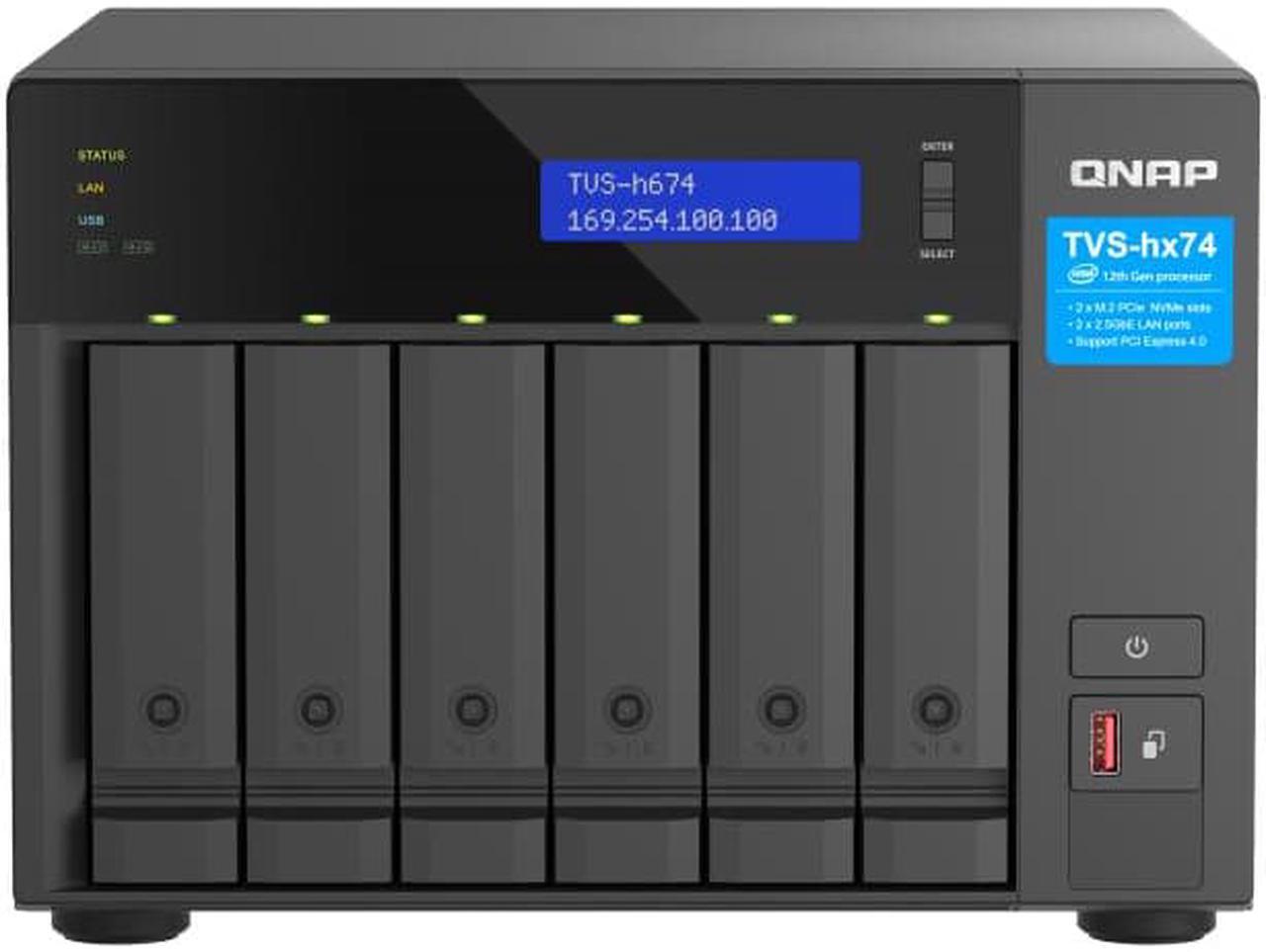

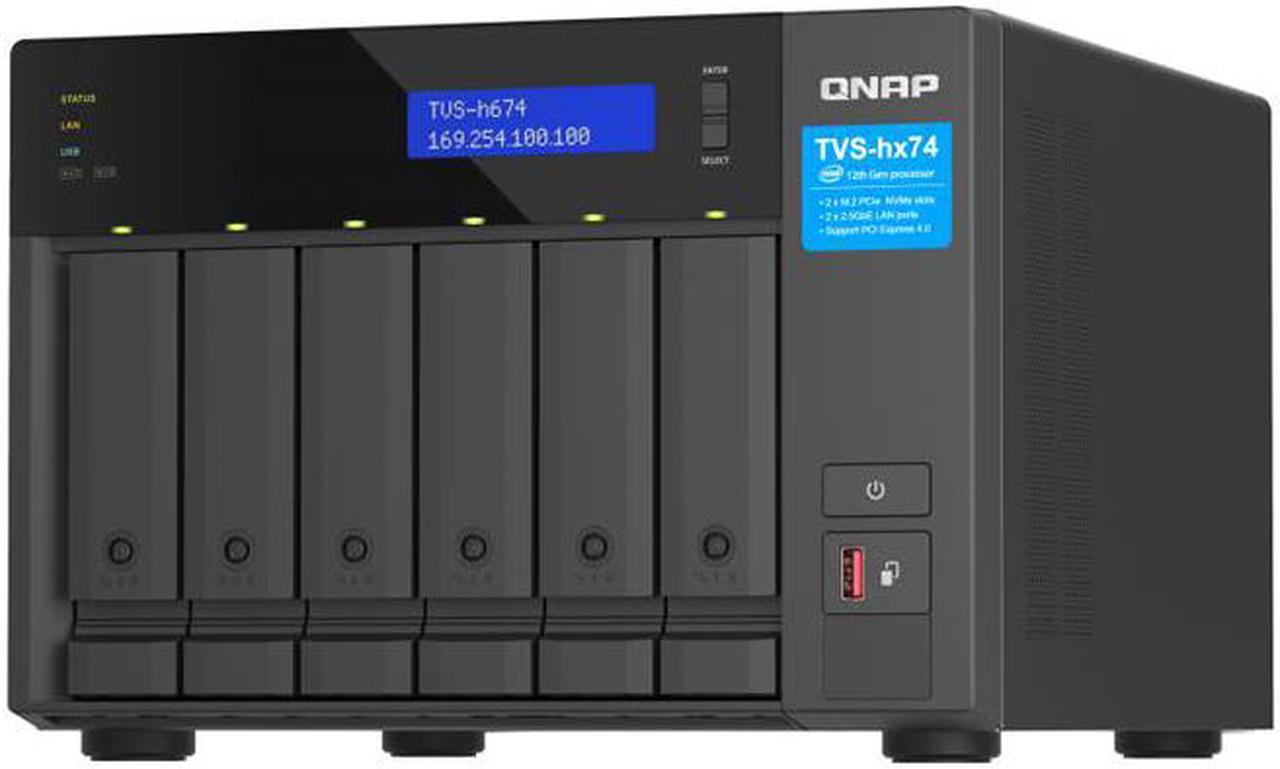

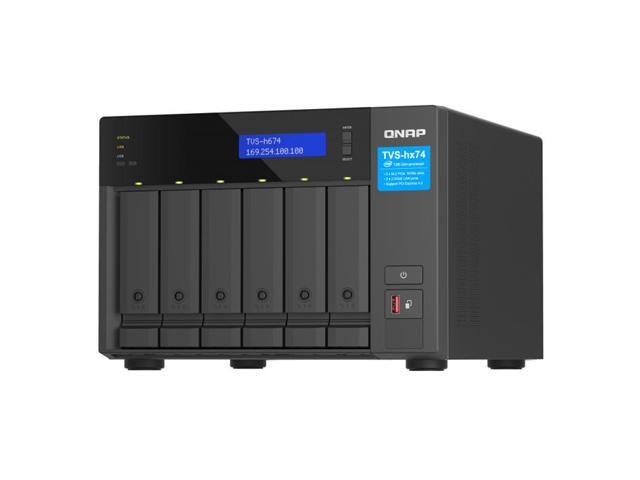

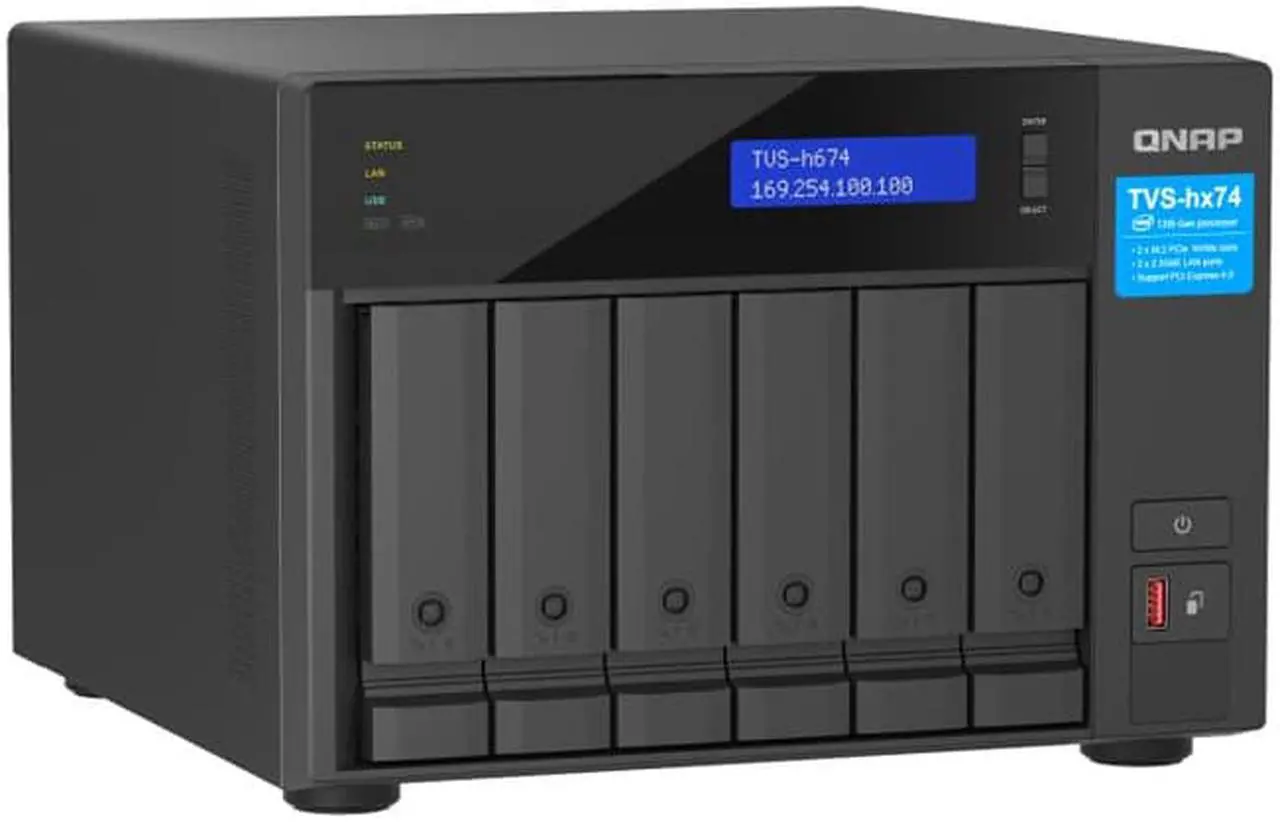

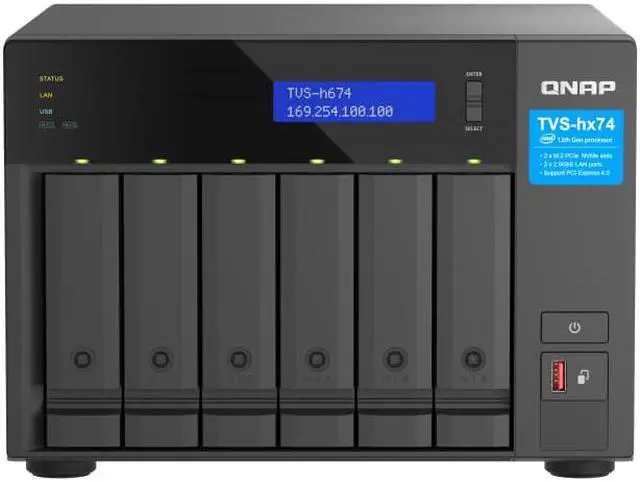

QNAP TVS-h674-i3-16G 6Bay 2.5GbE NAS Network Storage Server Home Desktop Enterprise Private Cloud(without HDD)
- Equipped with high performance 12th generation Intel® Core i3/i5 processor
- Built-in memory 16GB/32GB.
- Configure NVMe SSD to cache applications or install Edge TPU to accelerate image recognition performance.
- Built-in 2.5GbE network port, which can increase the 1G speed to 2.5G high-speed network bandwidth through the existing CAT5e network line.
- Dual PCIe expansion slots, can install 2.5/5/10/25GbE network card, QM2 expansion card, QXP storage expansion card or graphics card without additional power supply.
- A single machine can run multiple virtual machines and software containers to improve resource utilization.
- It can output to the big screen to present the clipping results of video and audio files, and supports Full HD video and audio playback and real-time conversion.
- Built-in Intel® OpenVINO and Intel® UHD Graphics, jointly accelerate QuMagie's AI image recognition, super efficient and reduce CPU load.
+
+
Overview
Specs
Reviews
TVS-h674-i3-16G
CPU Intel® Core i3-12100 4-core/8-thread processor (up to 4.3 GHz)
CPU Architecture 64-bit x86
Graphics processor Intel® UHD Graphics 730
Floating point operations Yes
Encryption Engine Yes (AES-NI)
Hardware Boost Shift Yes
System Memory 16 GB SODIMM DDR4 (1 x 16 GB)
Maximum memory 128 GB (2 x 64 GB)
Memory slots 2 x SODIMM DDR4
Flash memory 5 GB (dual-boot OS protection)
Number of hard drive slots 6 3.5" SATA 6Gb/s, 3Gb/s
Supported hard disk type 3.5" slot:
3.5" SATA hard drive
2.5" SATA hard drive
2.5" SATA Solid State Drive
Hot Plug Support Yes
M. 2 slots 2 M. 2 2280 PCIe Gen 4 x4 slots
SSD Cache Acceleration Support Yes
GPU passthrough Yes
2.5 Gigabit Ethernet port
( 2.5G /1G/100M)
2 ( 2.5G /1G/100M/10M)
Wake On LAN (WOL) Yes
Jumbo Frame Yes
PCIe slot 2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 4 x4
USB 3.2 Gen 2 (10Gbps) connection
port
1 Type-C USB 3.2 Gen 2 10Gbps
2 Type-A USB 3.2 Gen 2 10Gbps
HDMI Out 1, HDMI 1.4 b (up to 4096 x 2160 @ 30Hz)
Appearance vertical
LED Indicators HDD 1-6, Status, Network, USB Port, M. 2 Port
LCD Display/Buttons Yes
Buttons Power, System Reset, USB Copy
Dimensions (H x W x D) 188.2 × 264.3 × 279.6 mm
Weight (net weight) 6.553 kg
Weight (total weight) 8.07 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power Supply 250W, 100-240V
Power consumption: 26.52 W in HDD sleep mode
Power consumption: operating mode, typical 45.6 W
Fan System fan: 2 x 92mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
