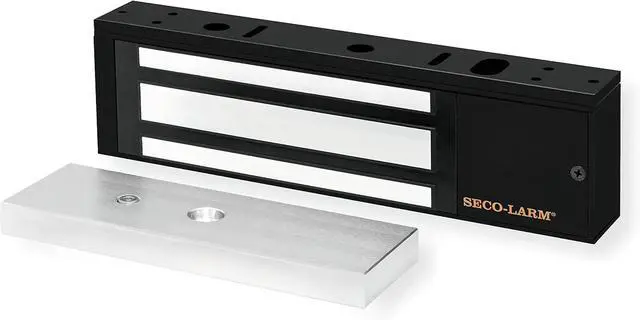

Seco-Larm E-941SB-1200 Electromagnetic Lock, 1200-lb Holding Force, MOV Surge Protection, Anodized Aluminum Housing with Black Finish, Adjustable Mounting Bracket, 12/24VDC Selectable

Seco-Larm E-941SB-1200 Electromagnetic Lock, 1200-lb Holding Force, MOV Surge Protection, Anodized Aluminum Housing with Black Finish, Adjustable Mounting Bracket, 12/24VDC Selectable

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism

Key Features:
- 1200-lb (545kg) Holding force
- No residual magnetism
- MOV Surge protection
- Anodized aluminum housing with black finish
- Adjustable mounting bracket
- Complete mounting hardware for typical installations

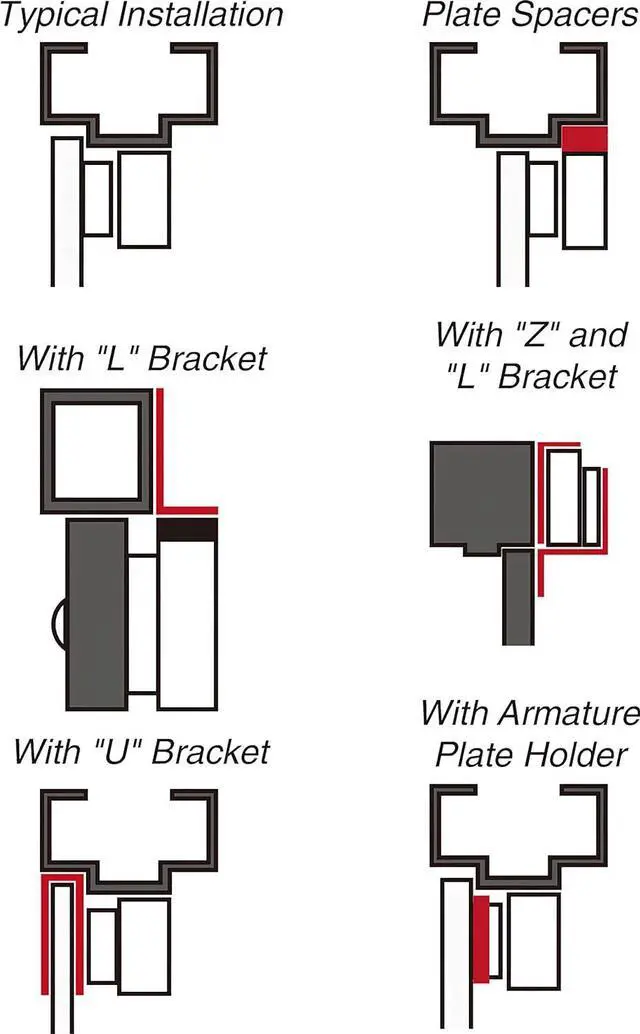

- Additional brackets available for easy mounting or atypical situations
- Detachable faceplate for easy access to wiring
- 12/24VDC Selectable

Specifications:
- Operating voltage: 12 /24 VDC (selectable)
- Current draw: 500mA@12VDC, 250mA@24VDC
- Door thickness (max.): 1-13/16 (46mm)
- Holding force: 1,200-lb (545kg)
- Destructive attack: Level I
- Line security: Level I
- Standby power: Level I
- Endurance: Level IV

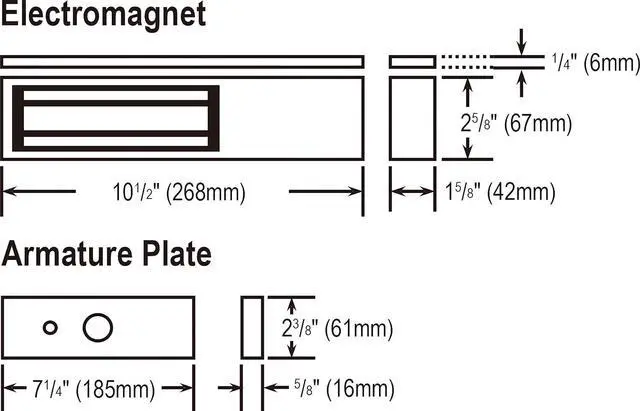

- Dimensions - Magnet: 10.51 x 2.63 x 1.57 inches (267 x 67 x 40 mm)
- Dimensions - Mounting Plate: 10.51 x 1.57 x 0.25 inches (267 x 40 x 5.5 mm)
- Dimensions - Armature Plate: 7.25 x 2.37 x 0.62 inches (185 x 61 x 16 mm)
- Weight: 4.6 pounds
